Rear bumper abutment 4D: Removing

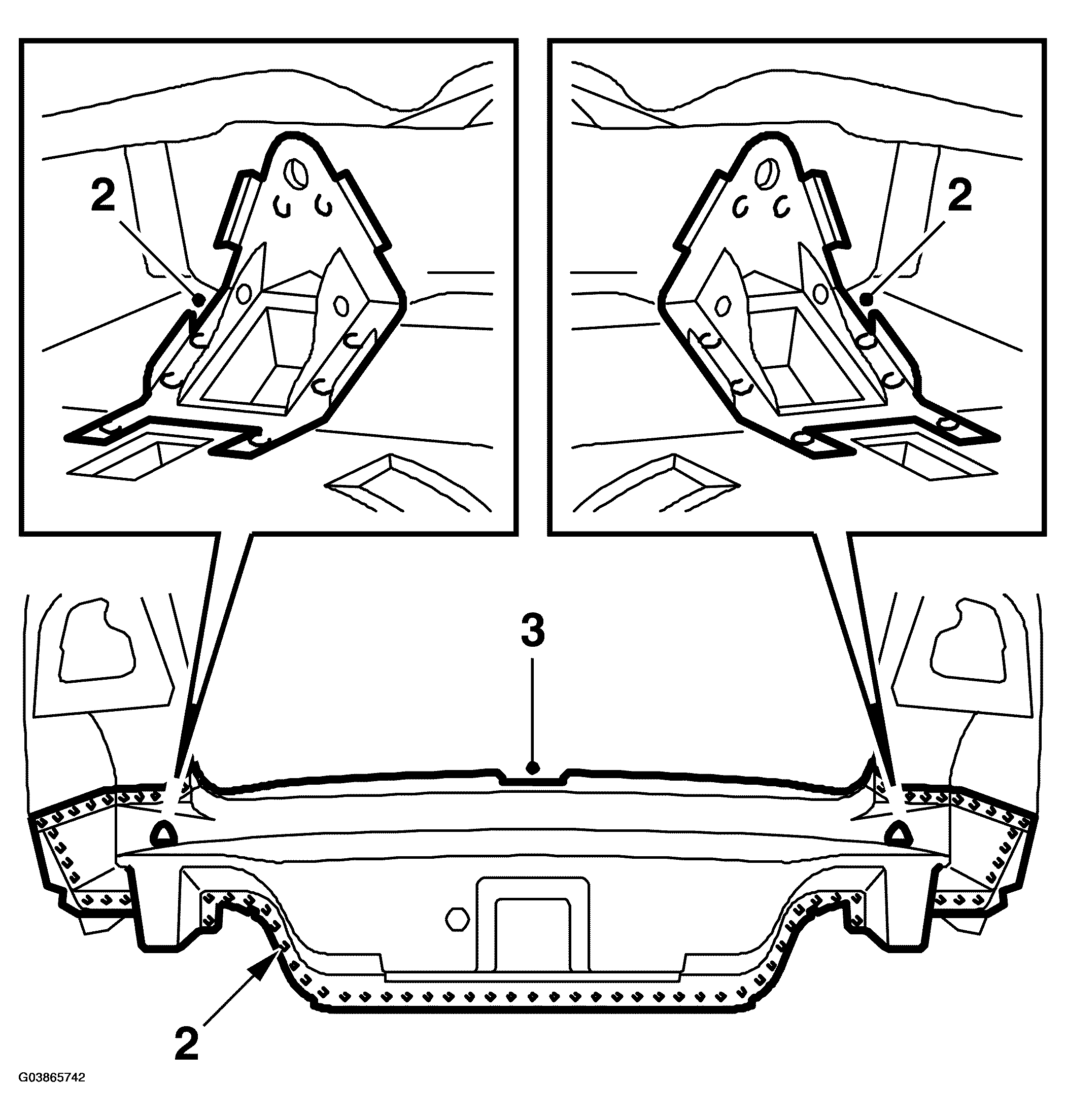

Fig 1: Illustration For Step 2-3
G03865742Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Mount the car in an alignment bench and align if necessary.
  2. Drill out the spot-welds.
  3. Remove the abutment and align any damaged sheet metal or panels.
