Radiator crossmember: Removing

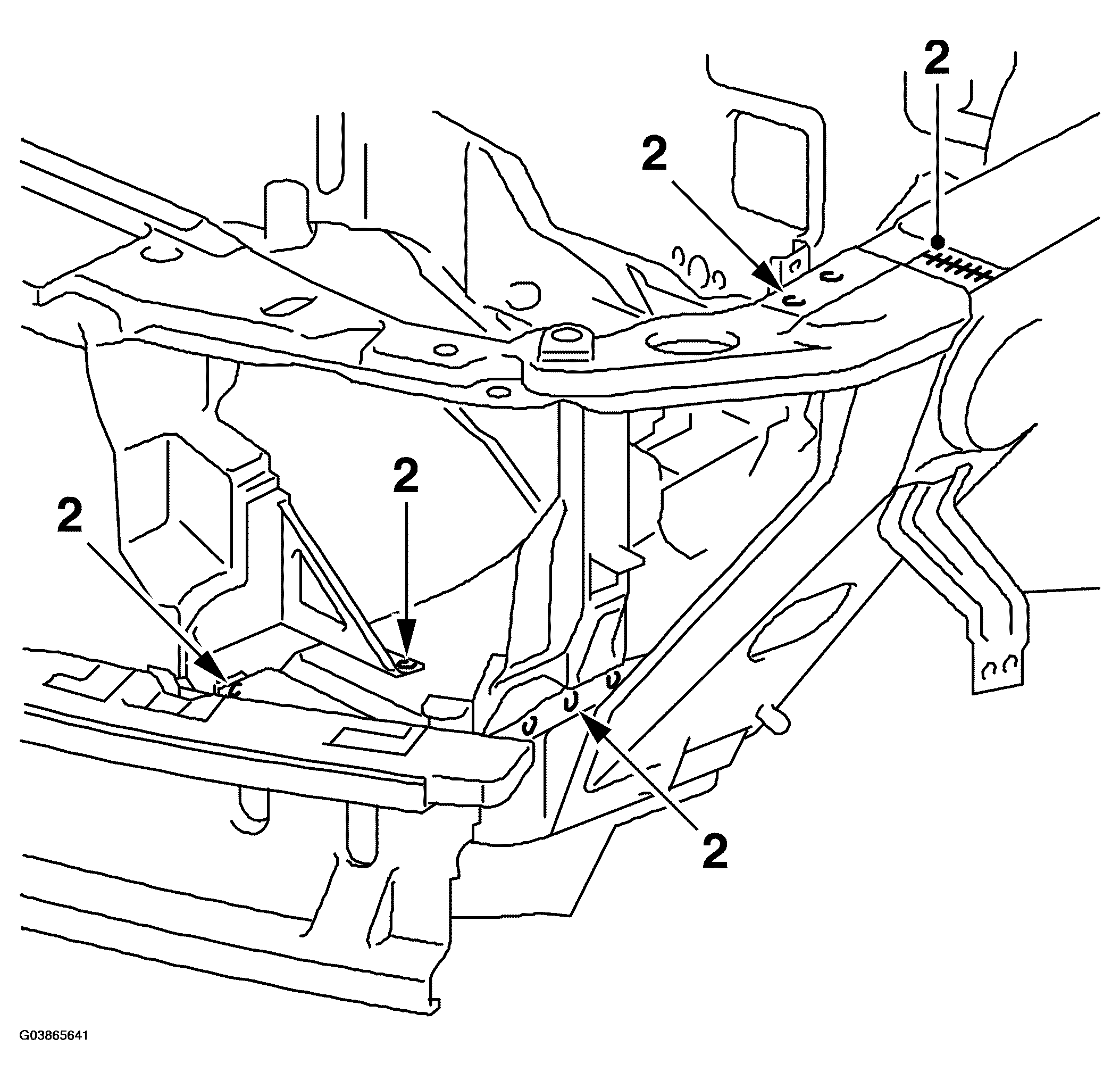

Fig 1: Illustration For Step 2
G03865641Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front wing.
  2. Drill holes into the spot-welds, grind off the welded joints and remove the radiator crossmember.
  3. Align the radiator crossmember mountings if necessary.
