Nut piece, rear subframe: Fitting

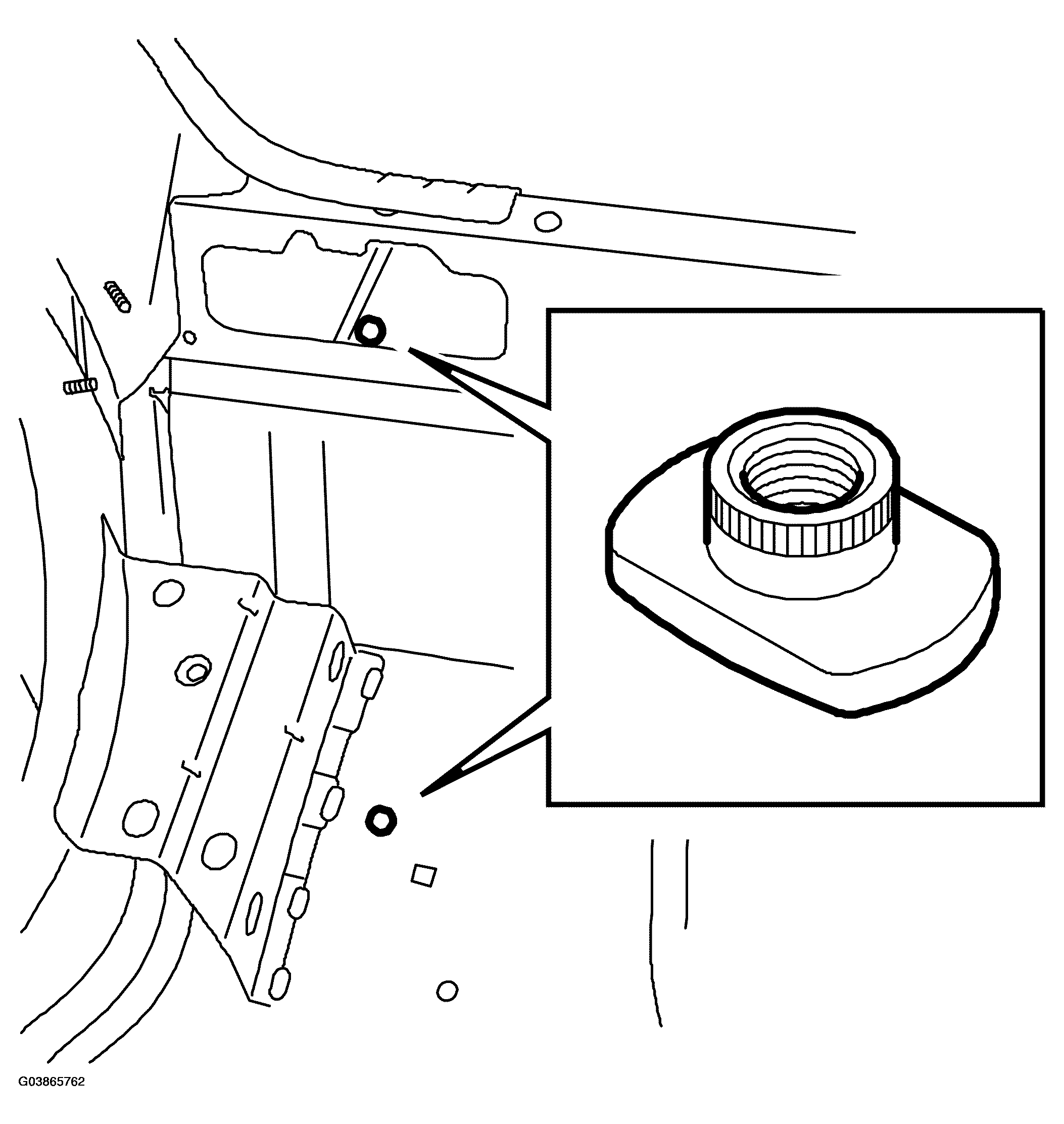

Fig 1: Identifying Marking For Hole
G03865762Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit a new nut piece without plastic holder.
  2. Fit the bolt from underneath.
  3. Apply anti-corrosion agent to the edge and fit a plug, part no. 43 33 498.
  4. Remove all swarf, grinding dust and the like from the floor, using a vacuum cleaner.
