Bumper member with integrated collision box: Removing

Position the car in an aligning bench and cross-measure if necessary.

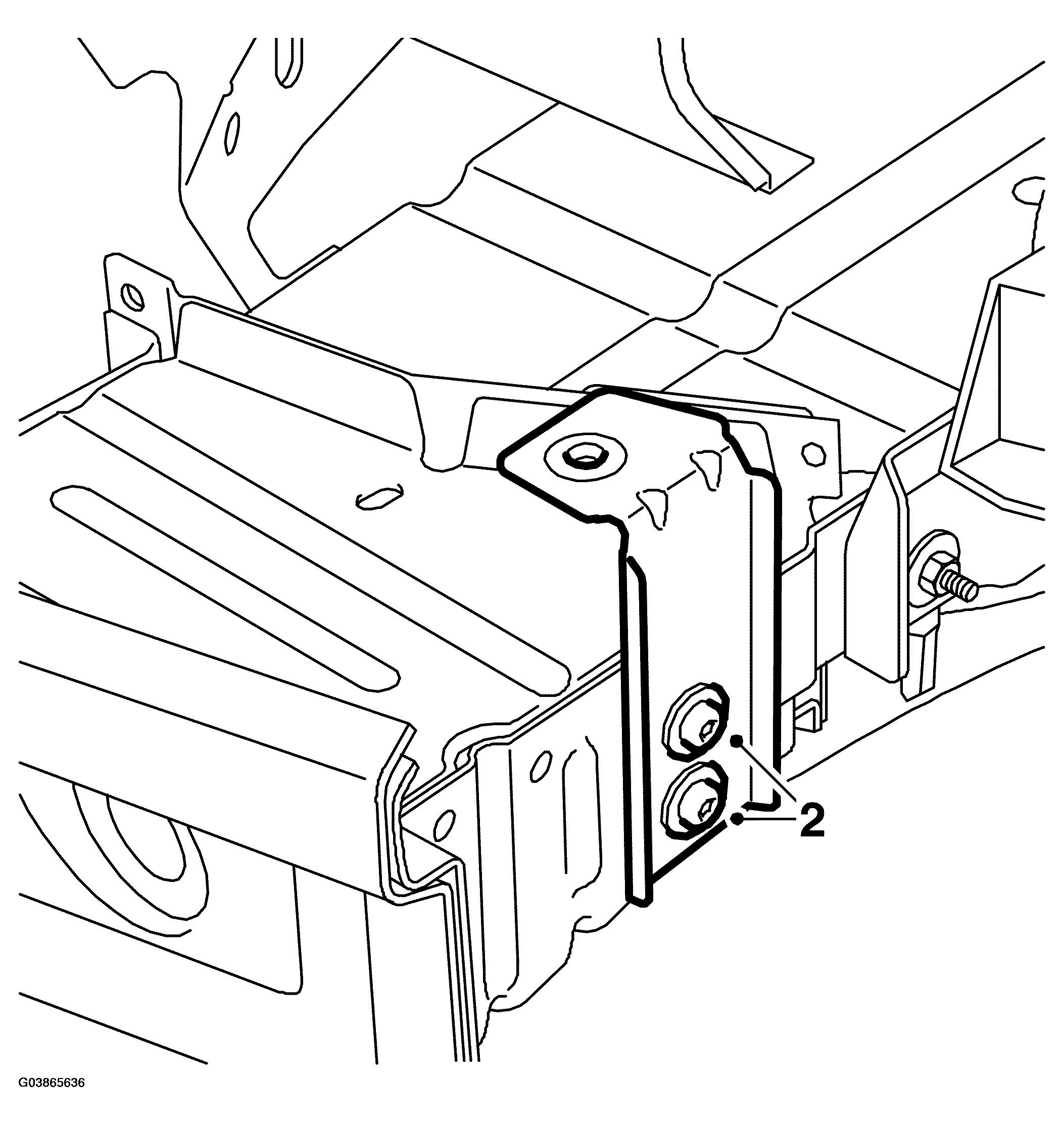

Remove the 2 bolts of the bracket.

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

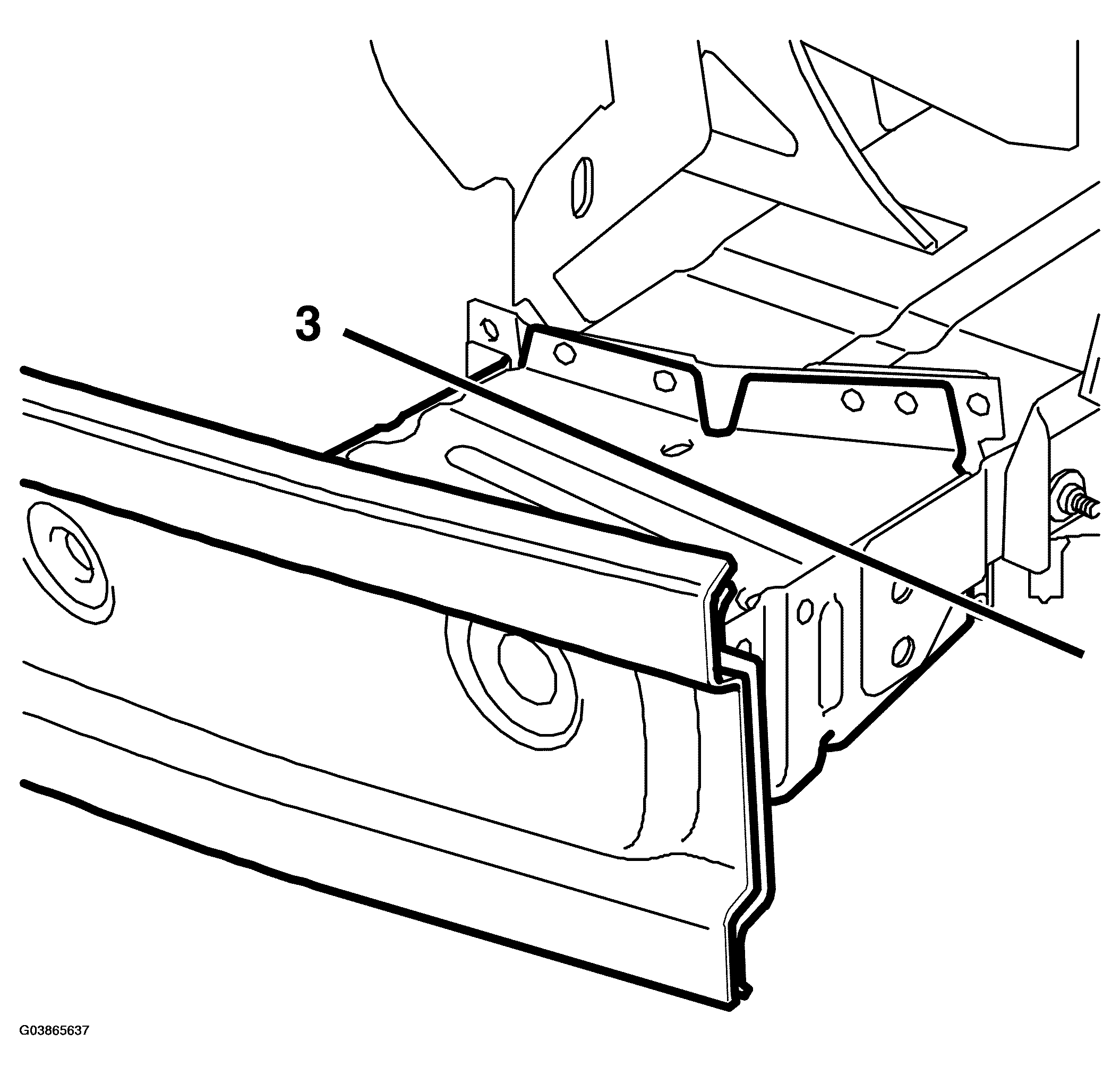

Cut the collision box and lift away the bumper member.

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.

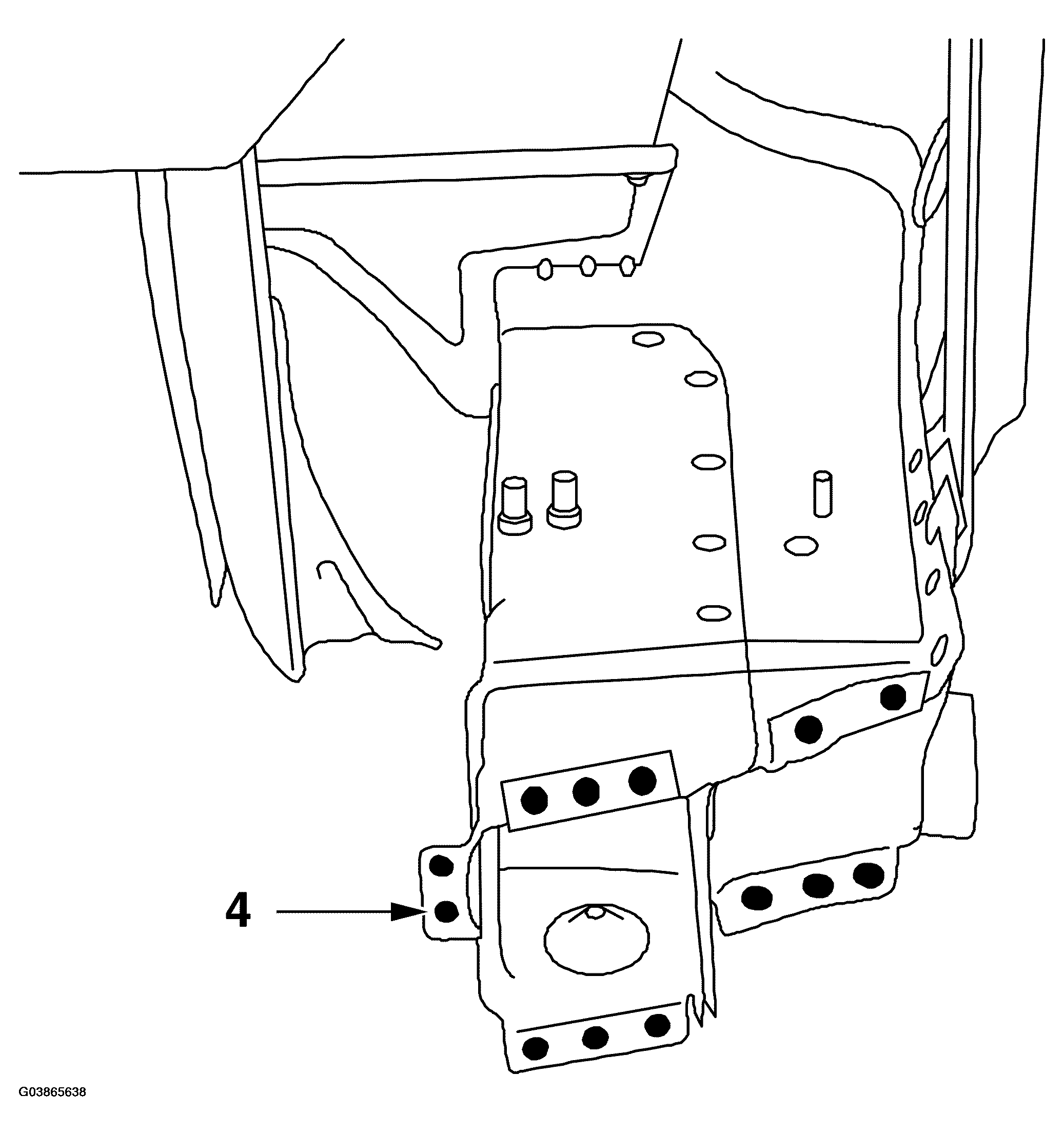

Drill holes through the spot-welds in the remaining mountings and remove the mounting plates.

Fig 3: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Straighten the frame member if it is deformed.
Grind clean the surfaces that are to be welded on the body.
Use a grinder to clean the areas on the new bumper member that are to be welded.
Apply welding primer to the surfaces that are to be spot-welded. Use recommended welding primer.
