To fit

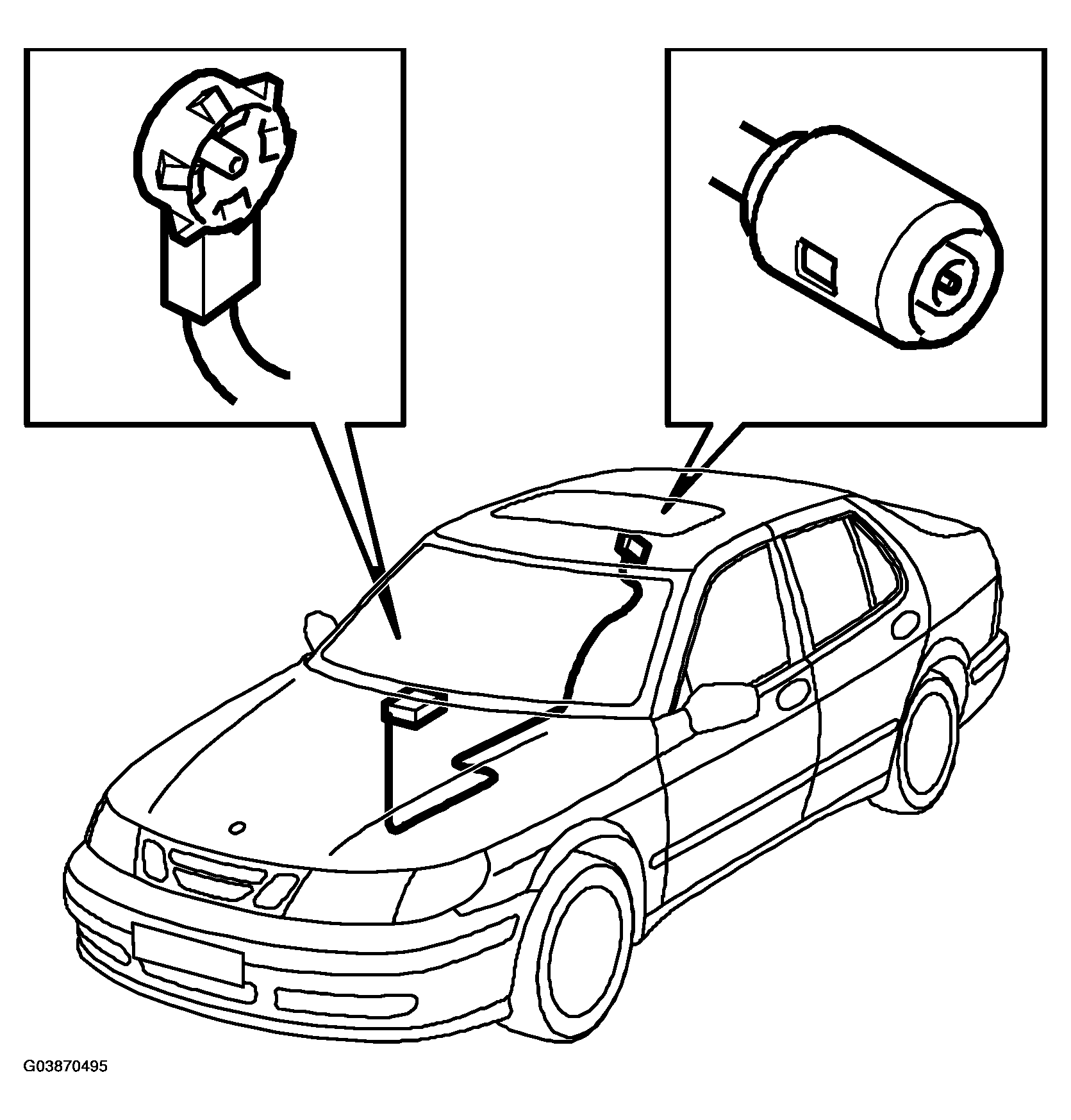

Fig 1: Locating Antenna Cable, Radio (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Do not remove the existing antenna cable without fitting a new one.

1. Remove the sill covers and cable conduit cover on the right-hand side (front and rear doors). Lower the seat cushion and backrest.
2. Remove the speaker grille from the right-hand side of the parcel shelf.
3. Remove the trim on the right-hand C pillar to gain access to the antenna amplifier.
4. Undo the nut securing the luggage compartment trim. Fold the right-hand section to one side.
5. Detach the antenna cable from the antenna amplifier.
6. Cut the antenna cable (the loose part).
7. Connect the new antenna cable to the antenna amplifier.
8. Place the antenna cable in the cable conduit on the right-hand door side. (Attach with a cable tie to prevent rattling.)
9. Fold up the carpet on the right-hand side and pass the cable under the carpet.
10. Remove the main unit (radio) and radio compartment.
11. Push the cable up towards the rear of the compartment.
12. Detach the old antenna cable and cut off the loose part.
13. Connect the new antenna cable.
14. Secure with cable ties to prevent rattling.
15. Refit the removed components.
