Headlamp flasher

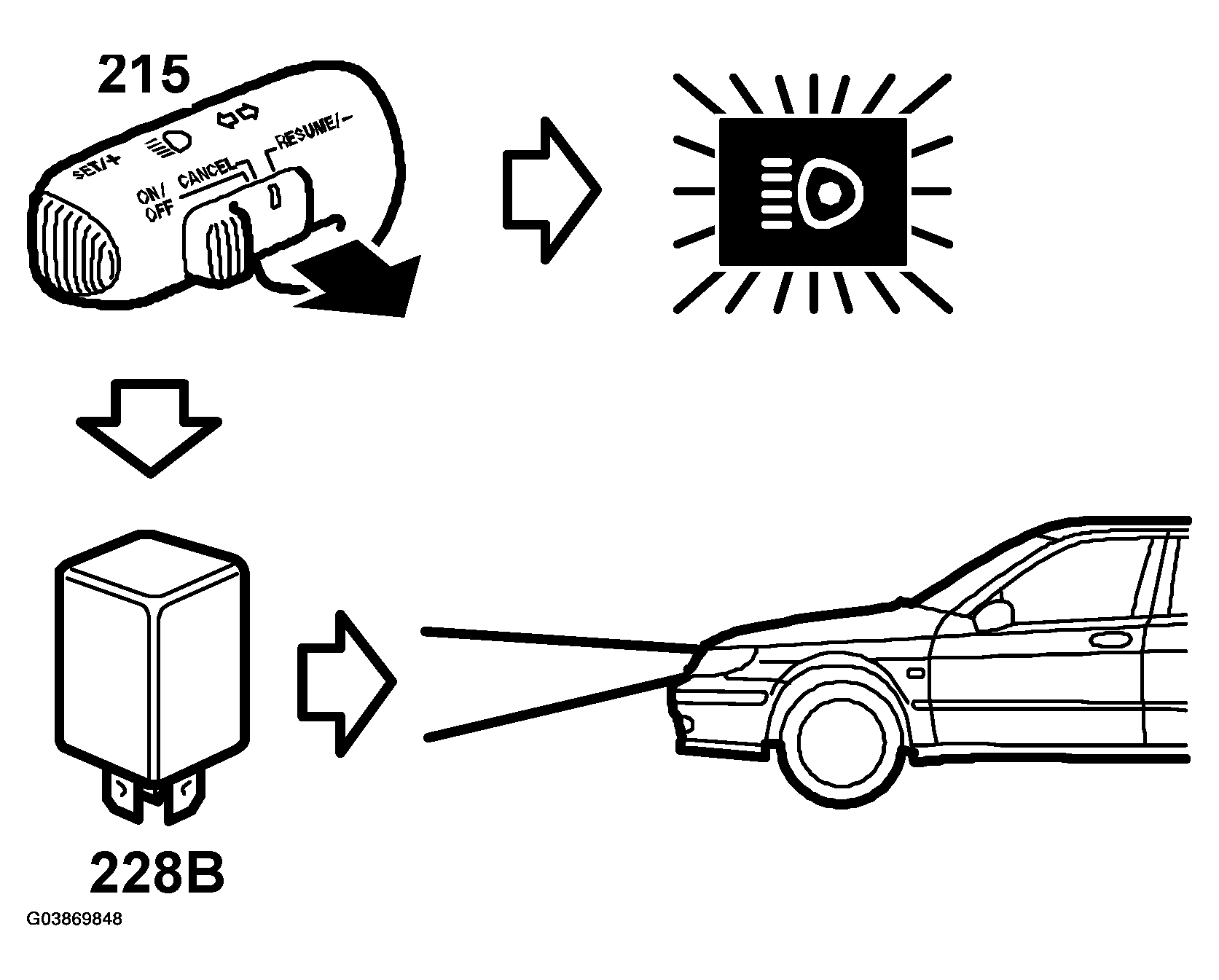

The headlamp "flasher" can be activated whatever the positions of the ignition switch and the light switch by using the dipswitch (215) to the right of the steering wheel.
The headlamp flasher turns on the halogen lamp when the lights are switched off. With the lights switched on, the halogen lamp will come on together with the xenon lamp.

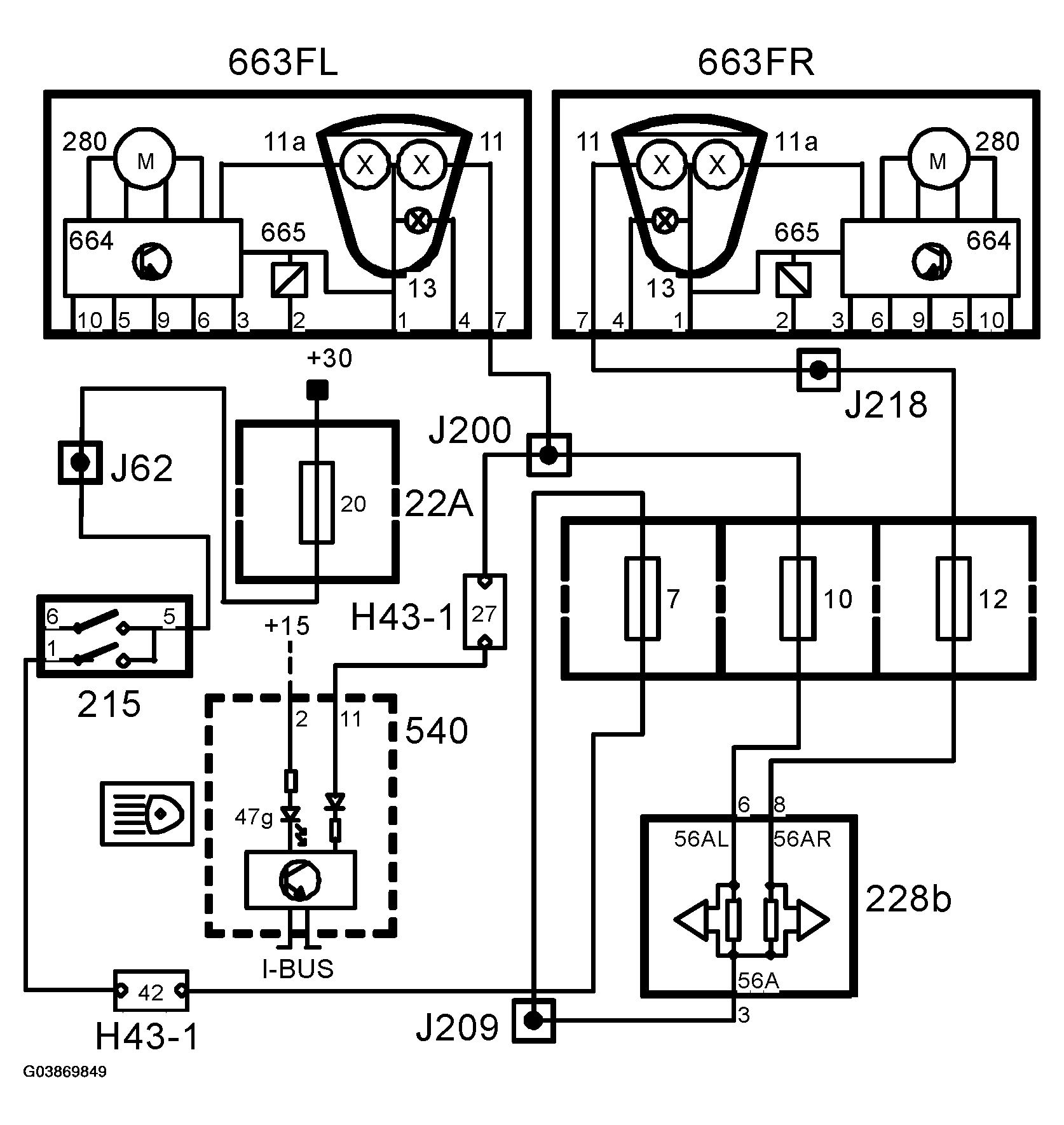

When the switch (215) is moved to its "spring-back" position with the lights off, voltage will be applied via fuse 7 and the filament monitor (228b) to the headlamp (663FL/663FR) pins 2 and 7.
When the switch (215) is moved to its "spring-back" position with the lights on, voltage will be applied to the headlamp (663FL/663FR) pin 2 via fuse 7.
The MIU (540) receives power from fuse 10 so that a lamp on the MIU lights up to indicate that the main beam is on.
