Fault symptoms

Courtesy lights out of order.

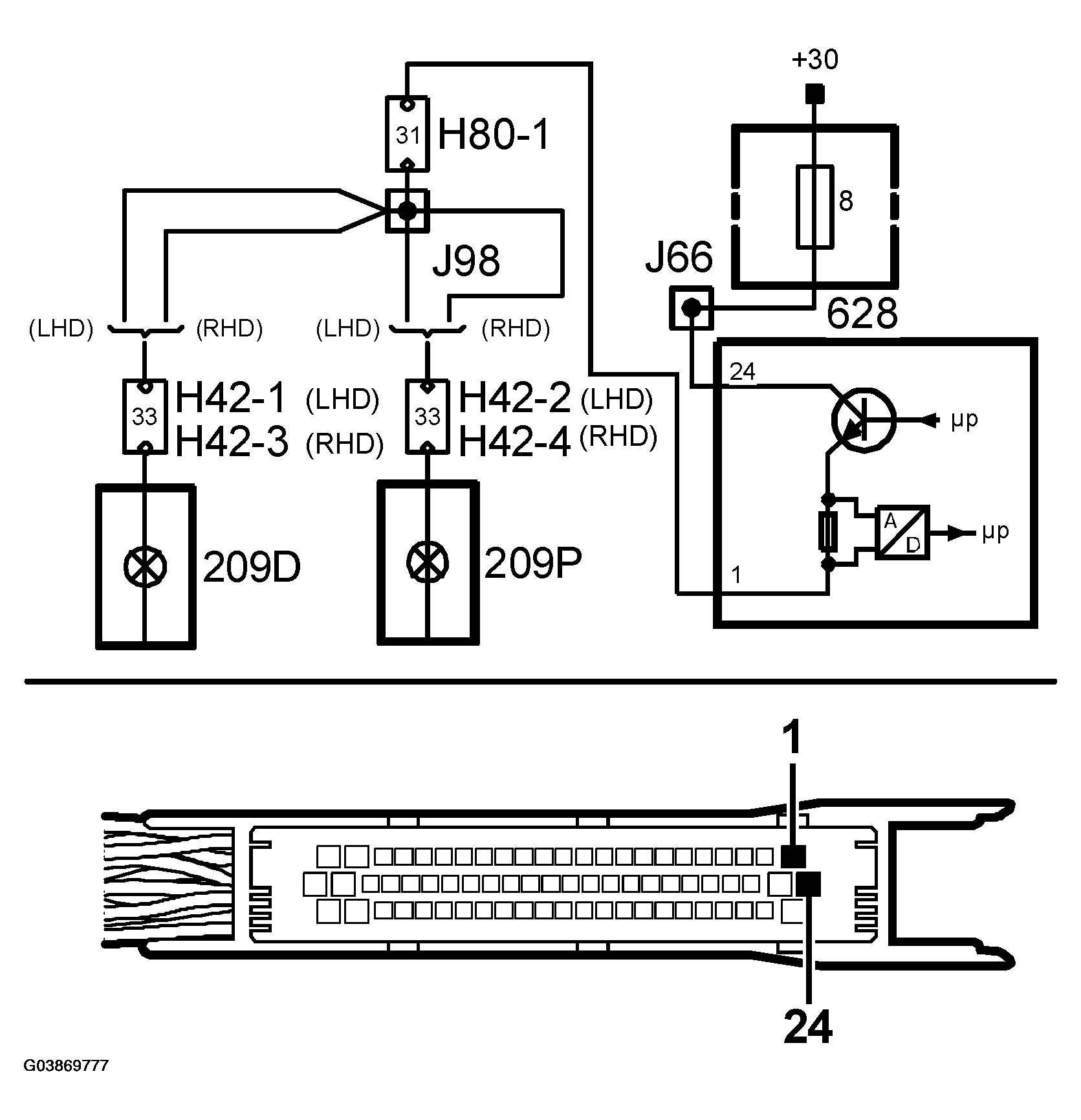

Fig 1: Identifying Courtesy Lights Circuit Diagram And Connector Terminals (1 Of 2)
G03869777Courtesy of SAAB-SCANIA OF AMERICA, INC.

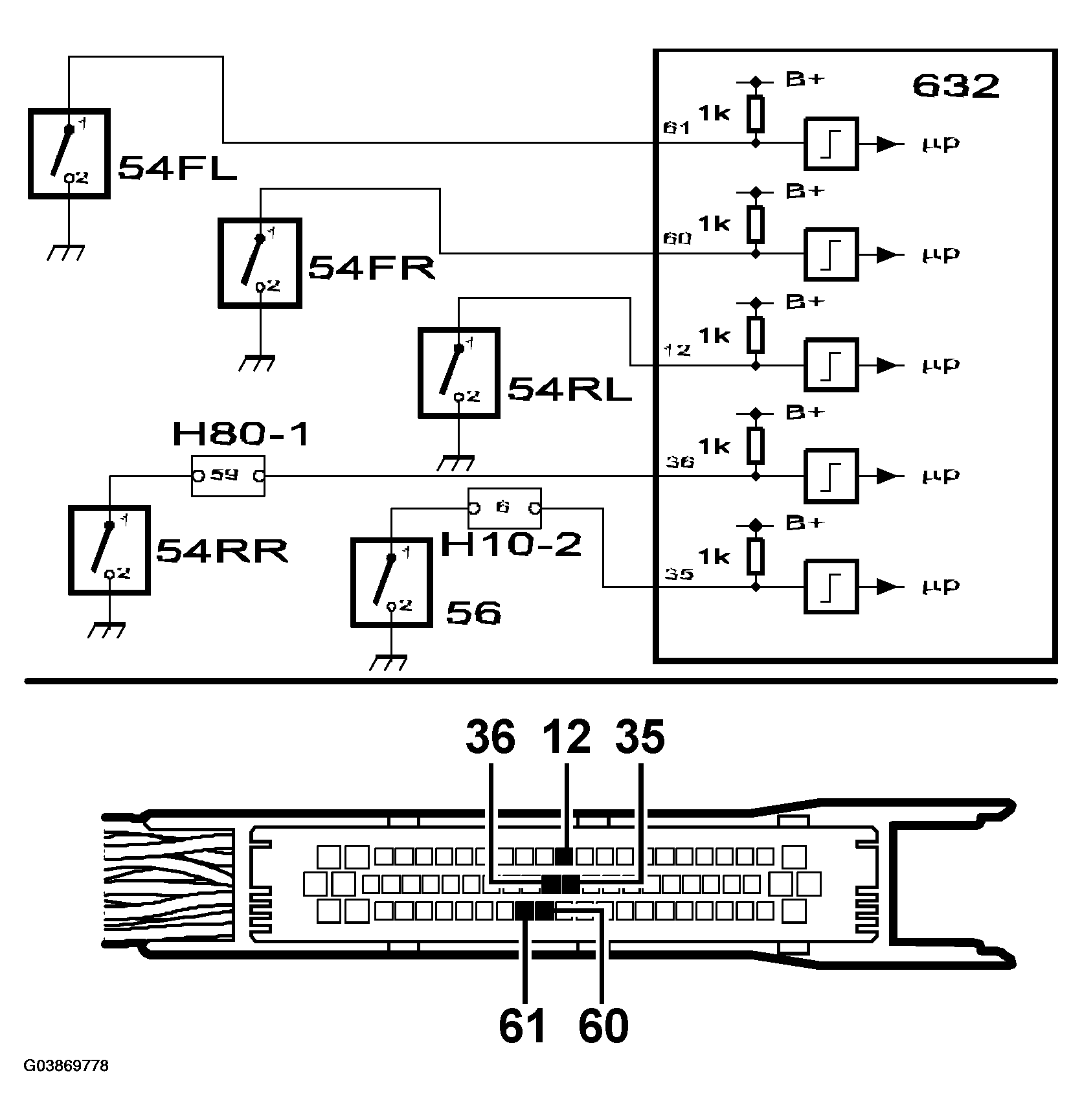

Fig 2: Identifying Courtesy Lights Circuit Diagram And Connector Terminals (2 Of 2)
G03869778Courtesy of SAAB-SCANIA OF AMERICA, INC.
