Lamp, RR Parking Light (13RR)

4D

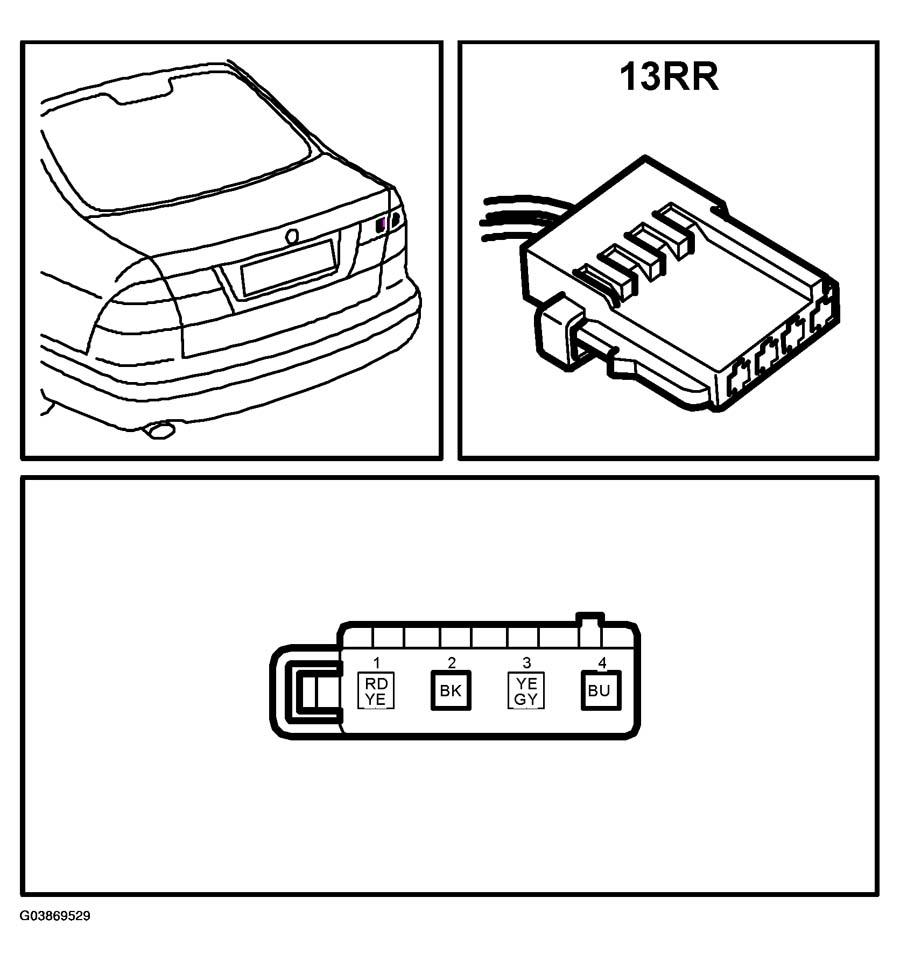

Fig 1: Identifying RR Parking Light Connector And Location - 4D
G03869529Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

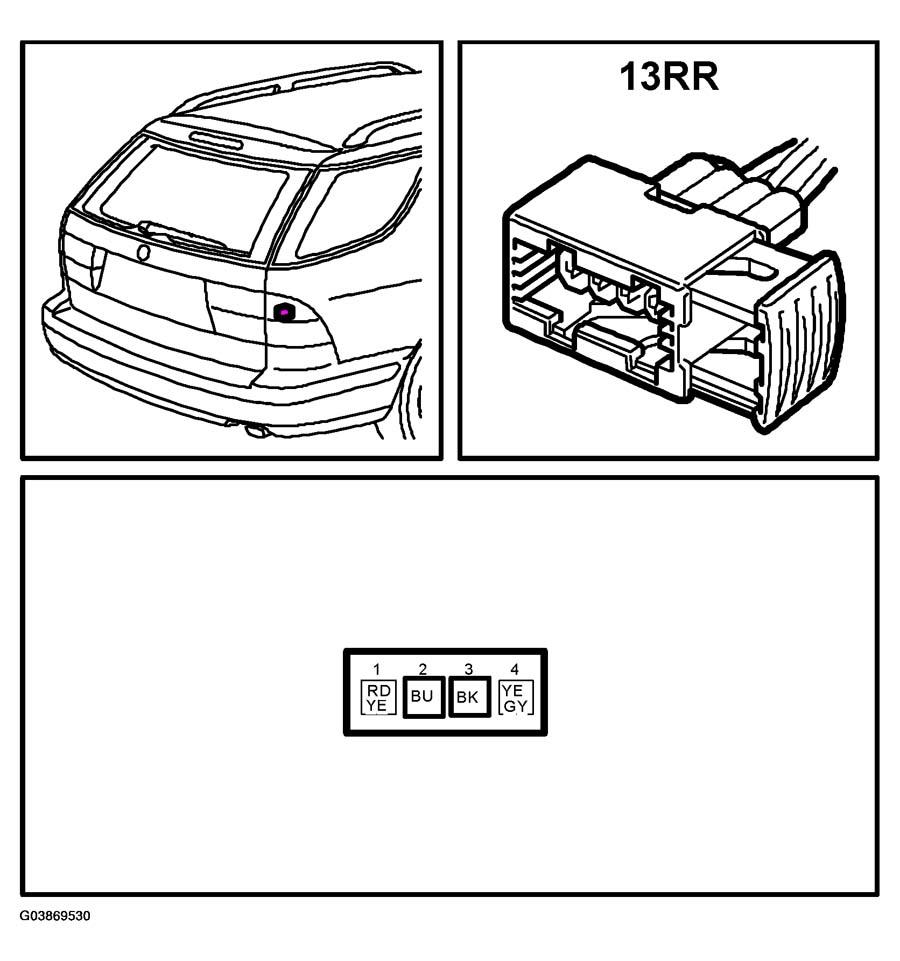

Fig 2: Identifying RR Parking Light Connector And Location - 5D
G03869530Courtesy of SAAB-SCANIA OF AMERICA, INC.
