Switch, Luggage Compartment Illumination (56)

4D

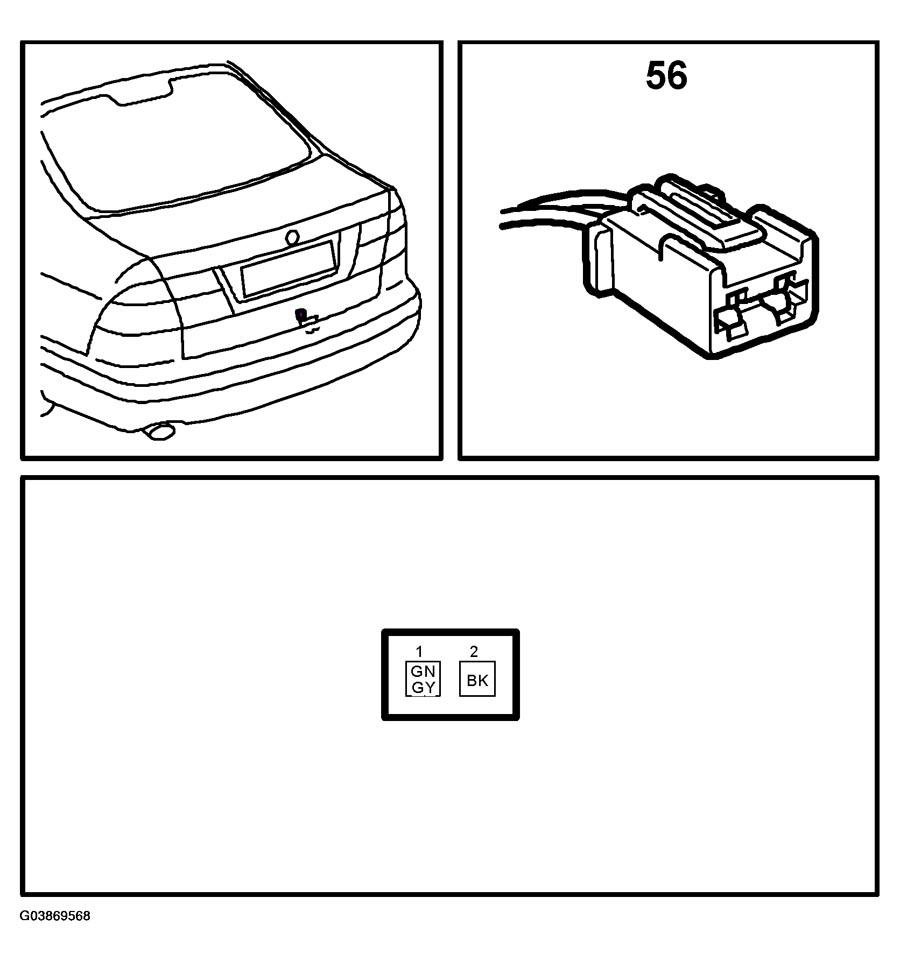

Fig 1: Identifying Luggage Compartment Illumination Connector And Location - 4D
G03869568Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

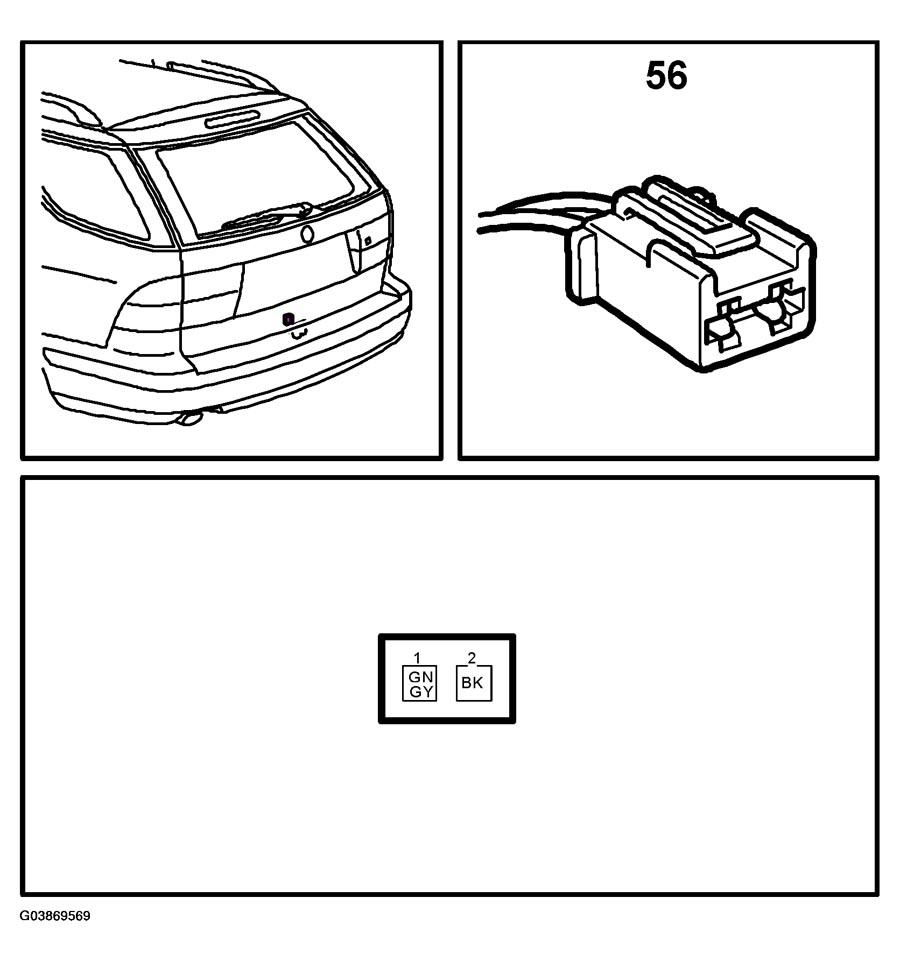

Fig 2: Identifying Luggage Compartment Illumination Connector And Location - 5D
G03869569Courtesy of SAAB-SCANIA OF AMERICA, INC.
