Lamp, RH Rear Fog Light (33HR)

4D

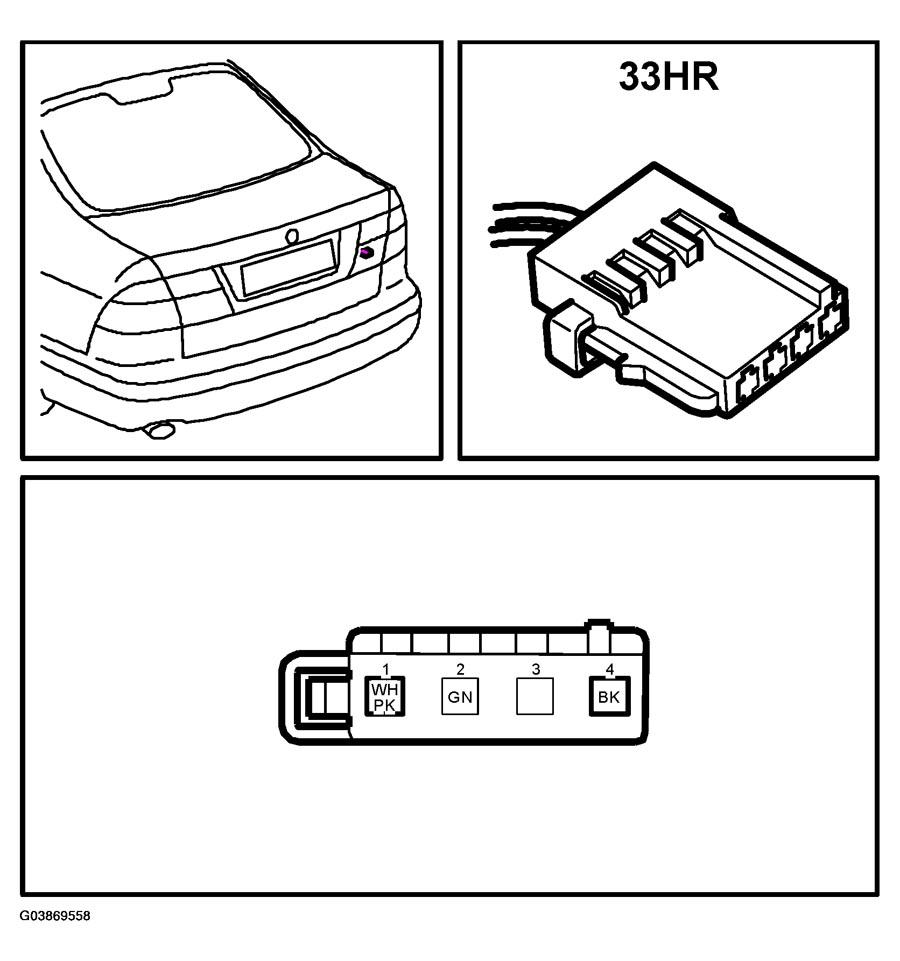

Fig 1: Identifying RH Rear Fog Light Connector And Location - 4D
G03869558Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

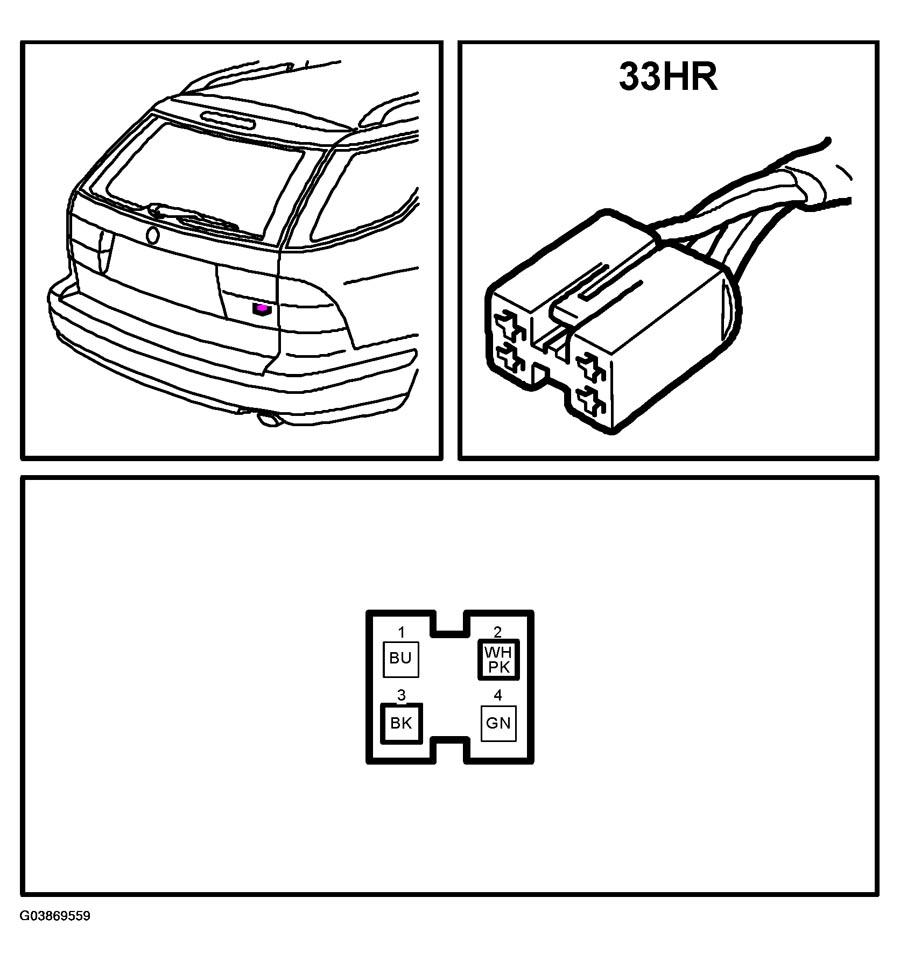

Fig 2: Identifying RH Rear Fog Light Connector And Location - 5D
G03869559Courtesy of SAAB-SCANIA OF AMERICA, INC.
