To fit

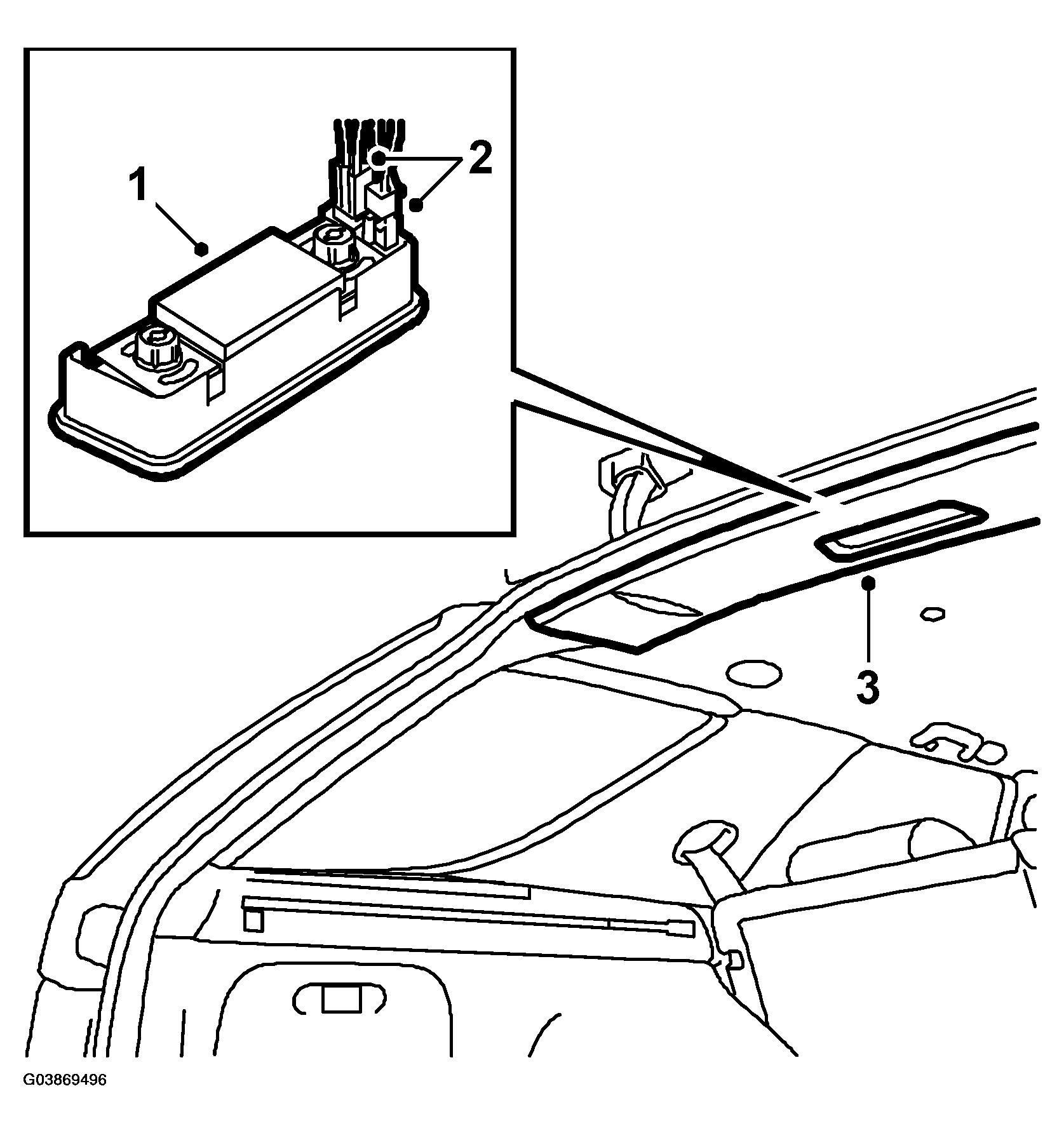

Fig 1: Illustration For Step 1-3
G03869496Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the lighting.
  2. Plug in the luggage compartment illumination connector and position the roof cover plate.
  3. Press the roof cover plate into the clips.

    Check the fit of the sealing strip over the cover plate.
