DTC B2476: OnStar button Circuit Open: Notes

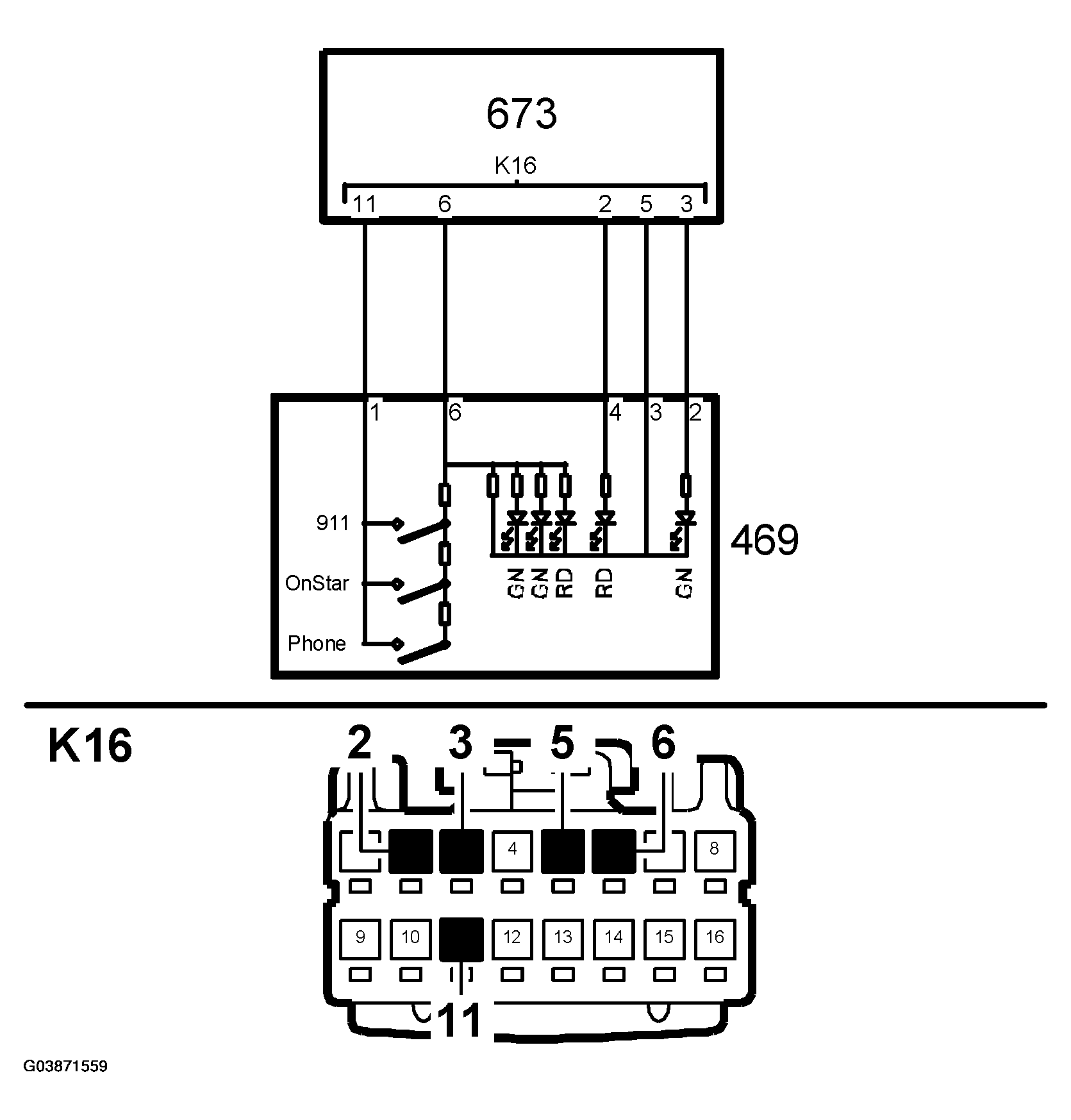

Fig 1: B2476: OnStar Button Circuit Open - Circuit Diagram
G03871559Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT: Before work begins, contact and inform the OnStar Call Centre (OCC) that a service is to be carried out on the unit.
