To fit

  1. Place the control module in the correct position.

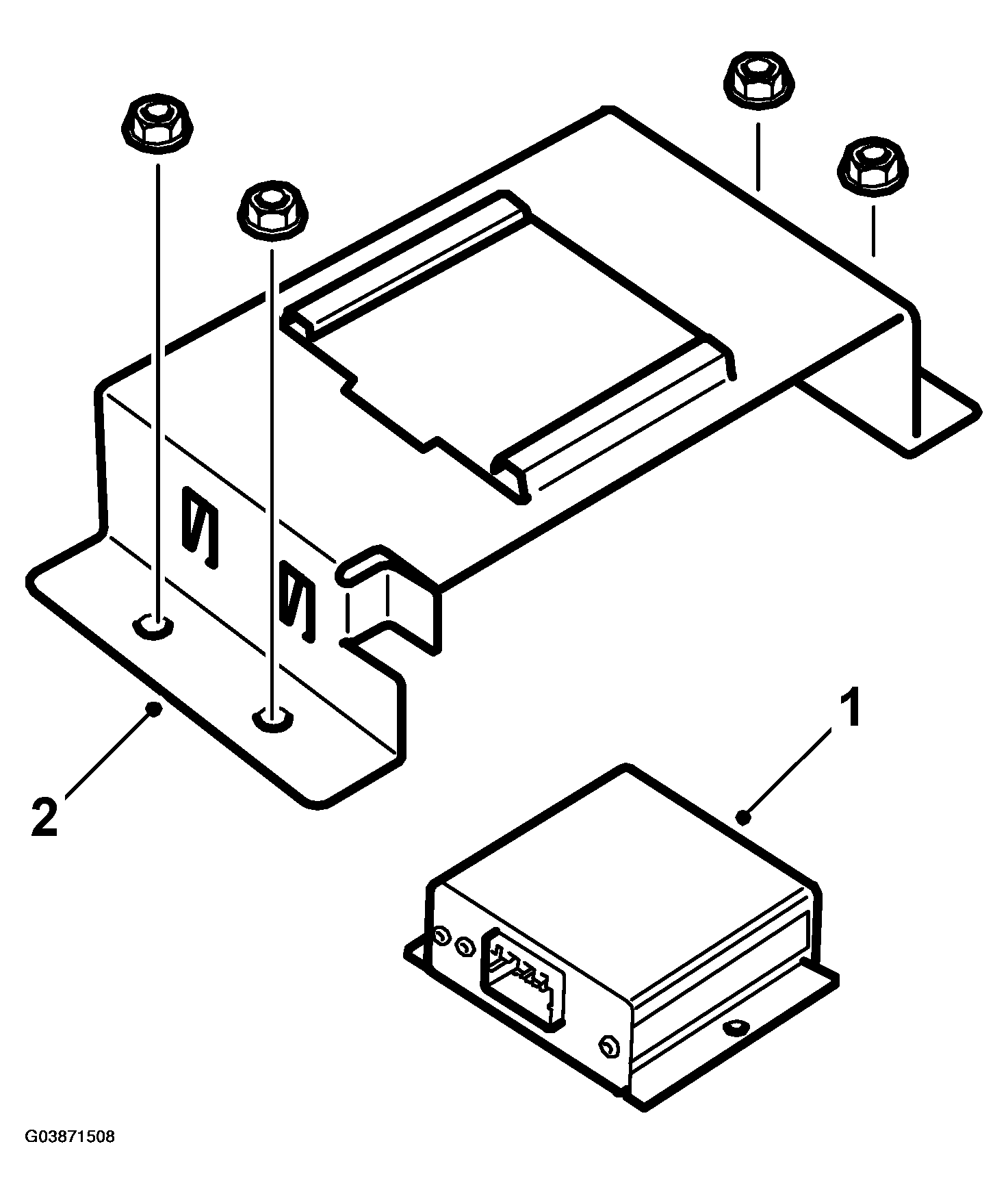

    Fig 1: Illustration For Step 1-2
    G03871508Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the bracket.

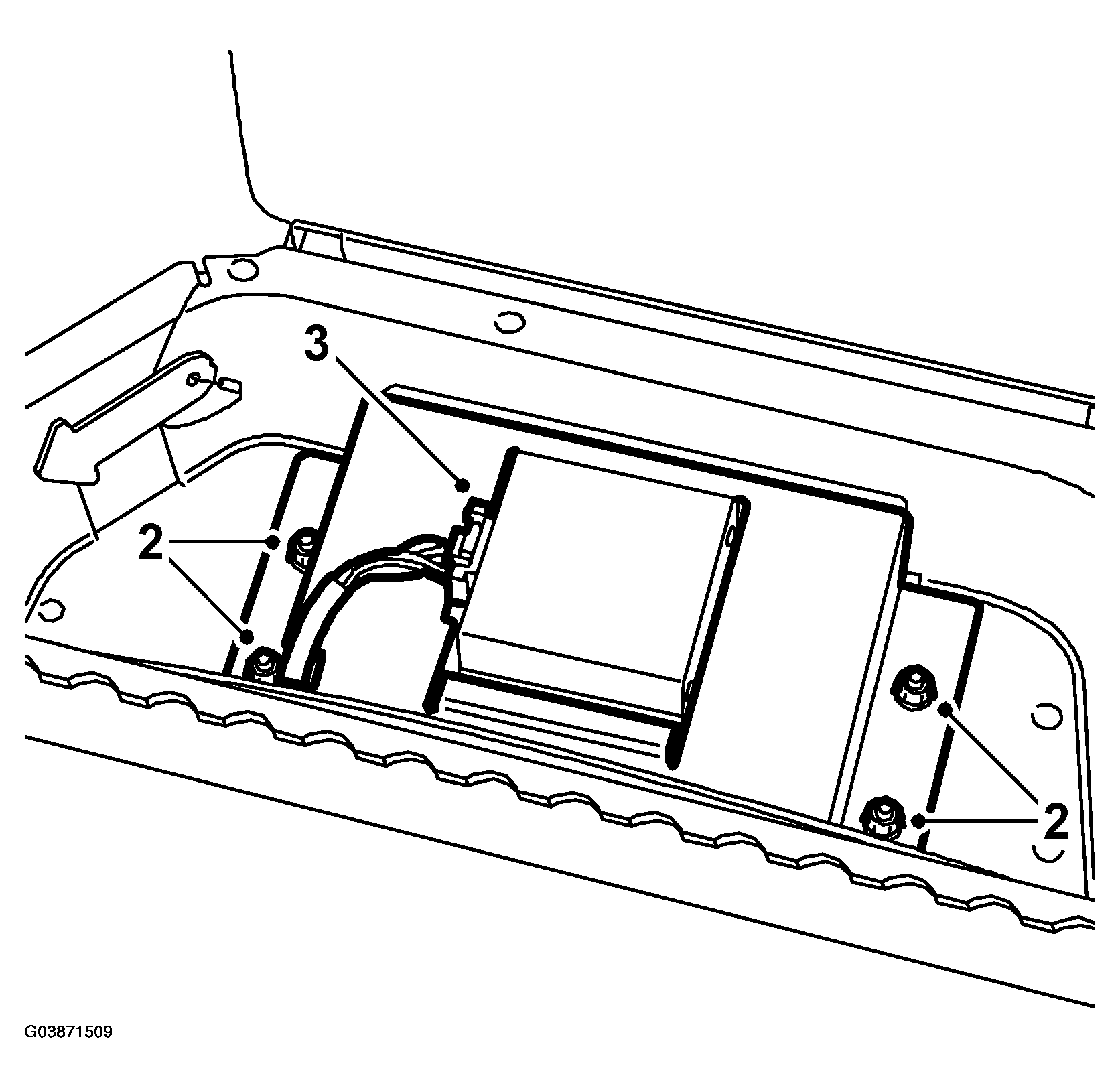

    Fig 2: Illustration For Step 2-3
    G03871509Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Plug in the connector.
  4. Fit the cover.
  5. Erase fault codes.
  6. Check that the system is functioning.
