Main beam indicator lamp: Notes

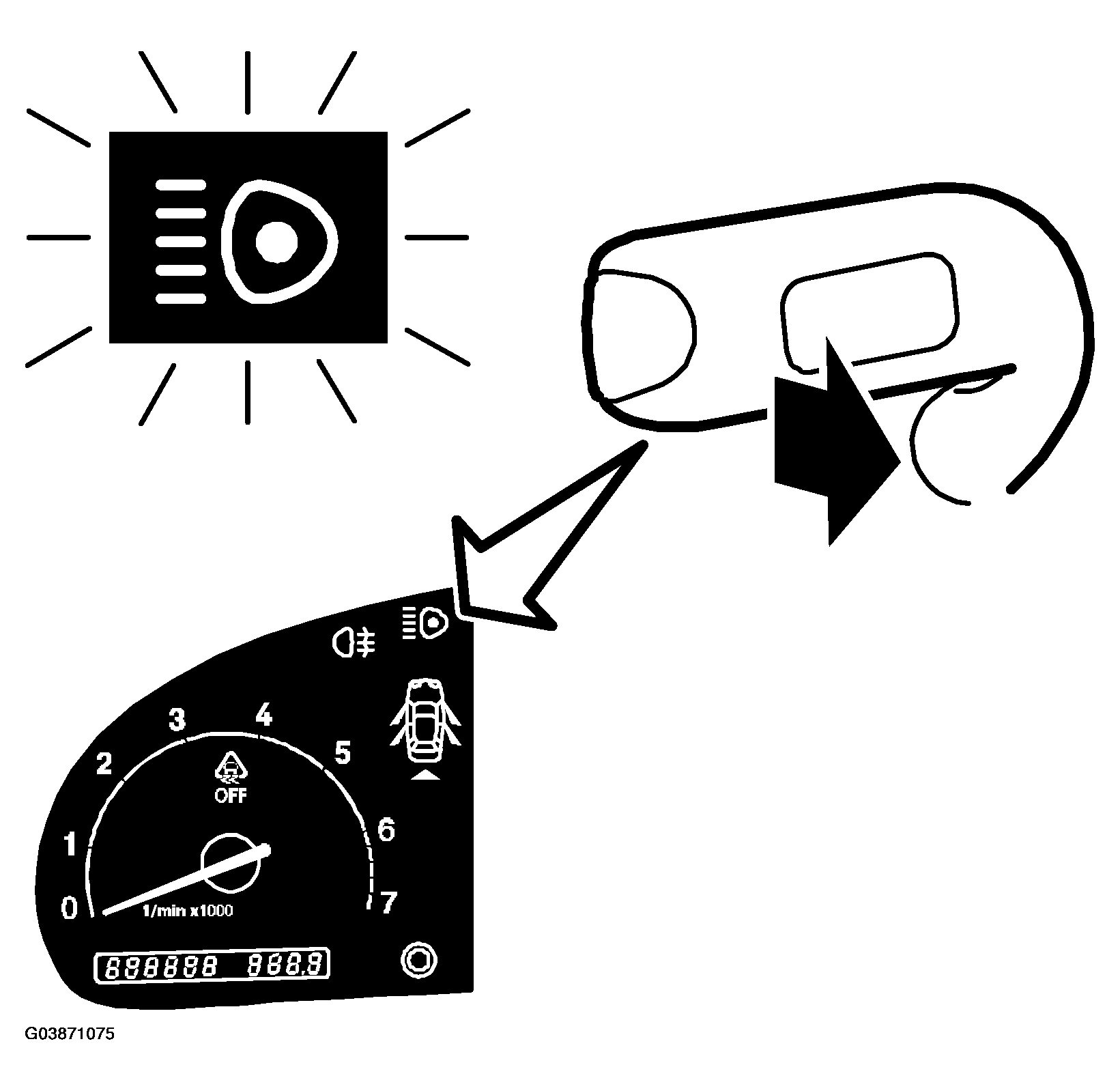

Fig 1: Main Beam Indicator Lamp Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

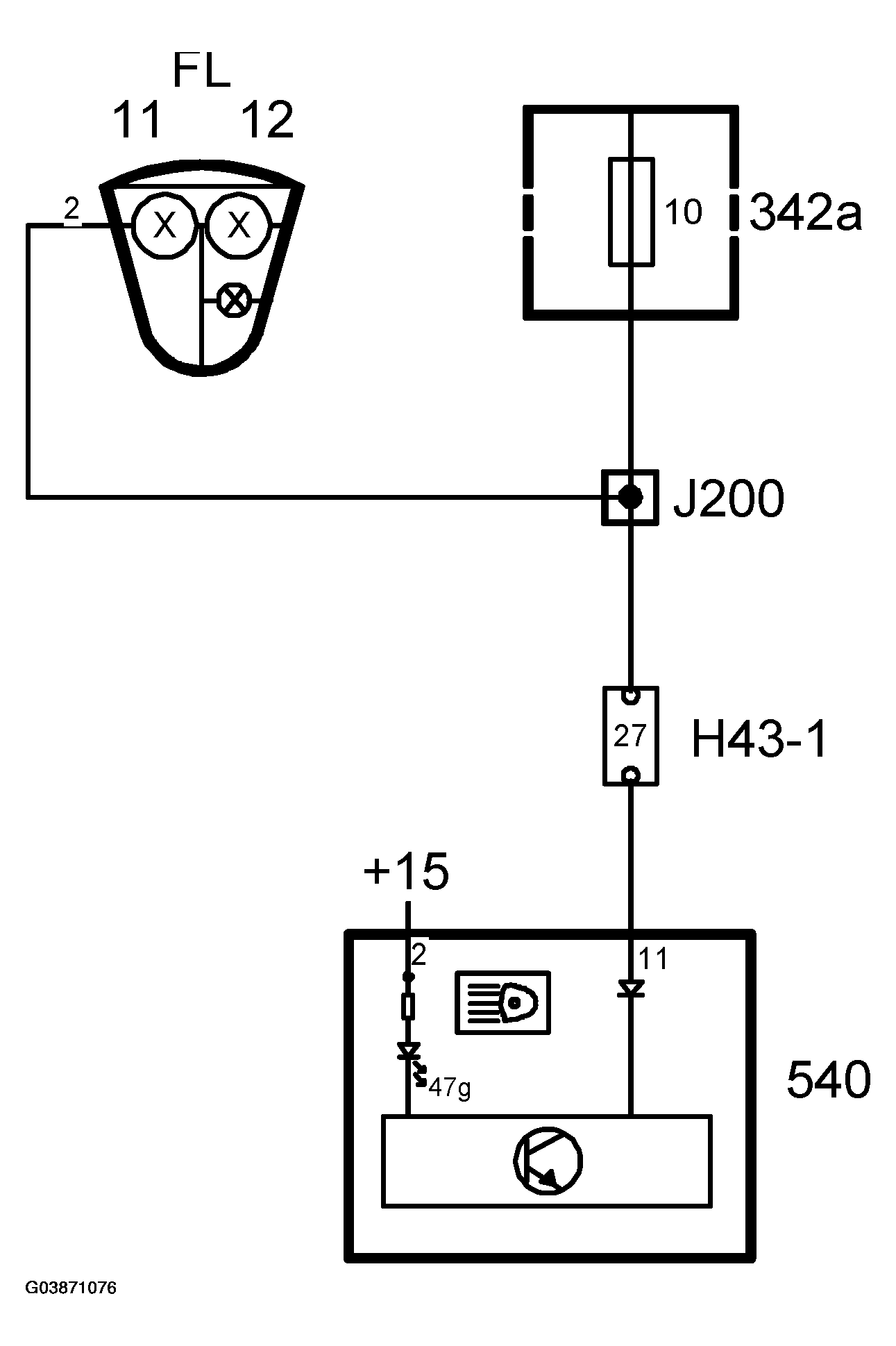

Fig 2: Main Beam Indicator Lamp Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The indicator lamp is situated in the upper LH corner and informs the driver that main beams are switched on.

The lamp is powered from the main instrument unit and grounded internally by the main instrument unit. The indicator lamp is turned on by the control module when the main instrument unit input (pin 11) is powered with B+ from the main beam fuse 10.
