Fuel reserve indicator lamp: Notes

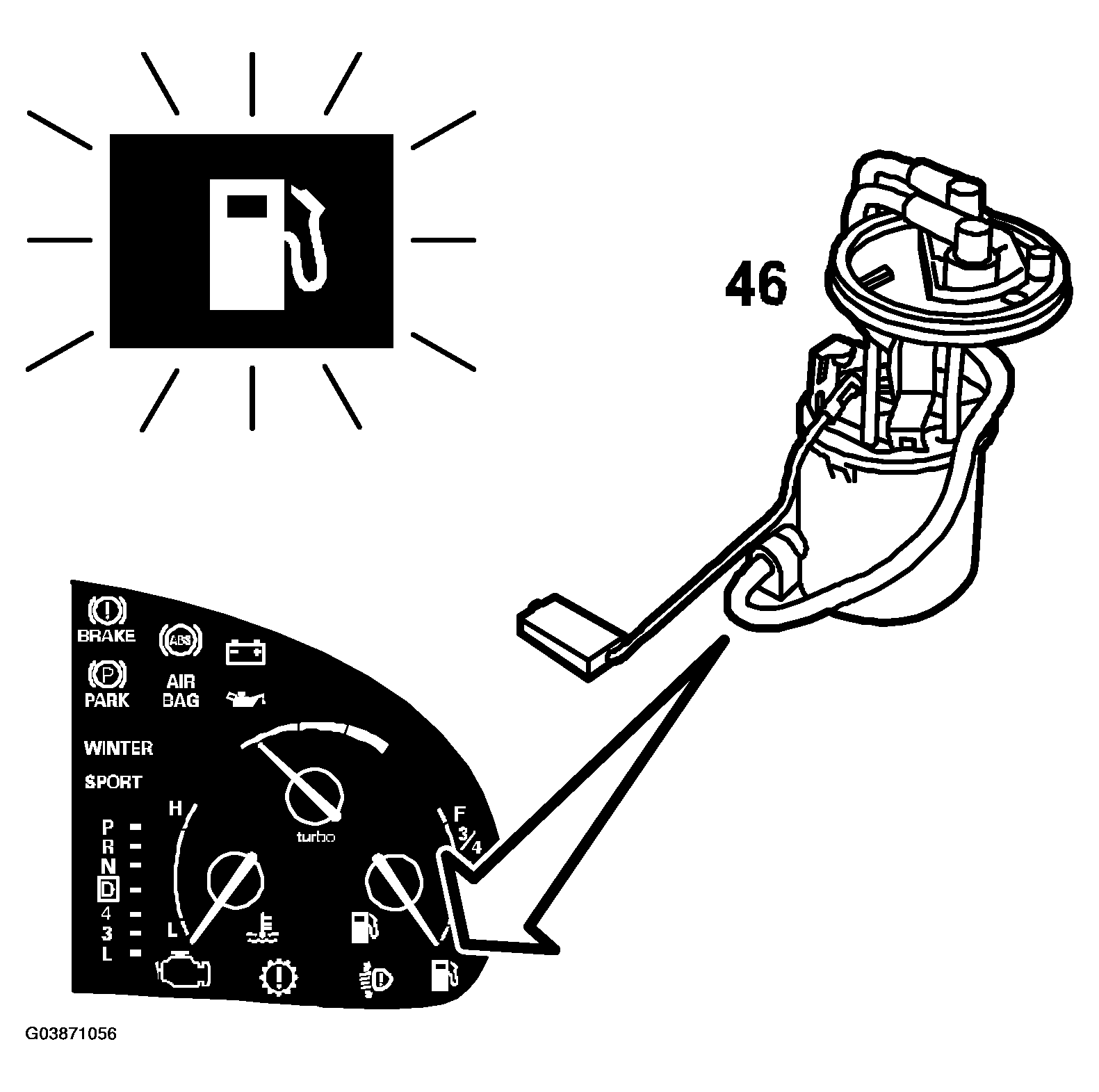

Fig 1: Fuel Reserve Indicator Lamp Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

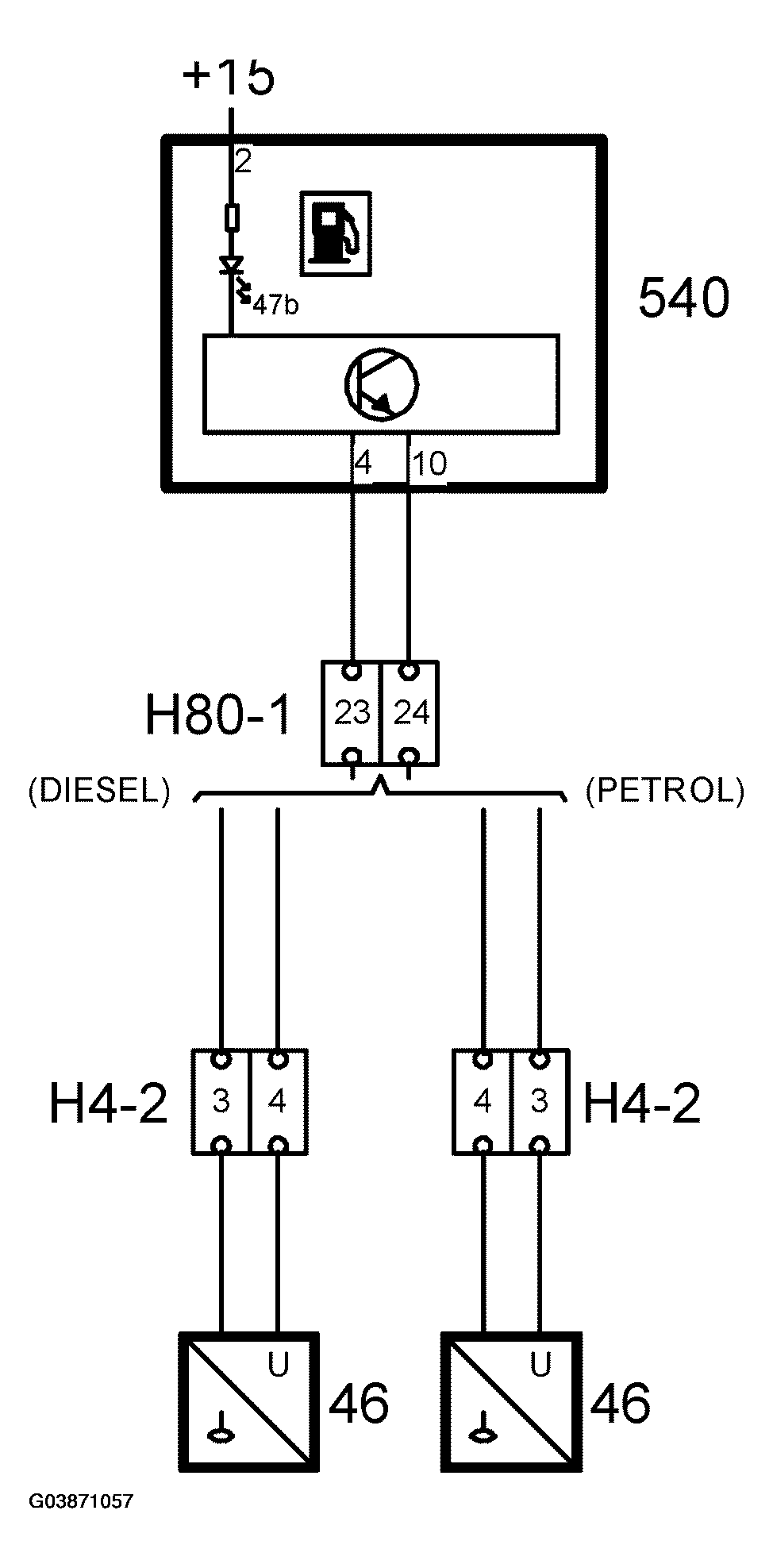

Fig 2: Fuel Reserve Indicator Lamp Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

When approx. 10 liters of fuel are left, the lamp comes on to indicate the low fuel level. The lamp is powered from the main instrument unit and grounded internally by the main instrument unit.

The main instrument unit lights this lamp for three seconds when the ignition is switched on.
