Cruise indicator lamp: Diagnosis

The function has its own diagnostics in the sending system.

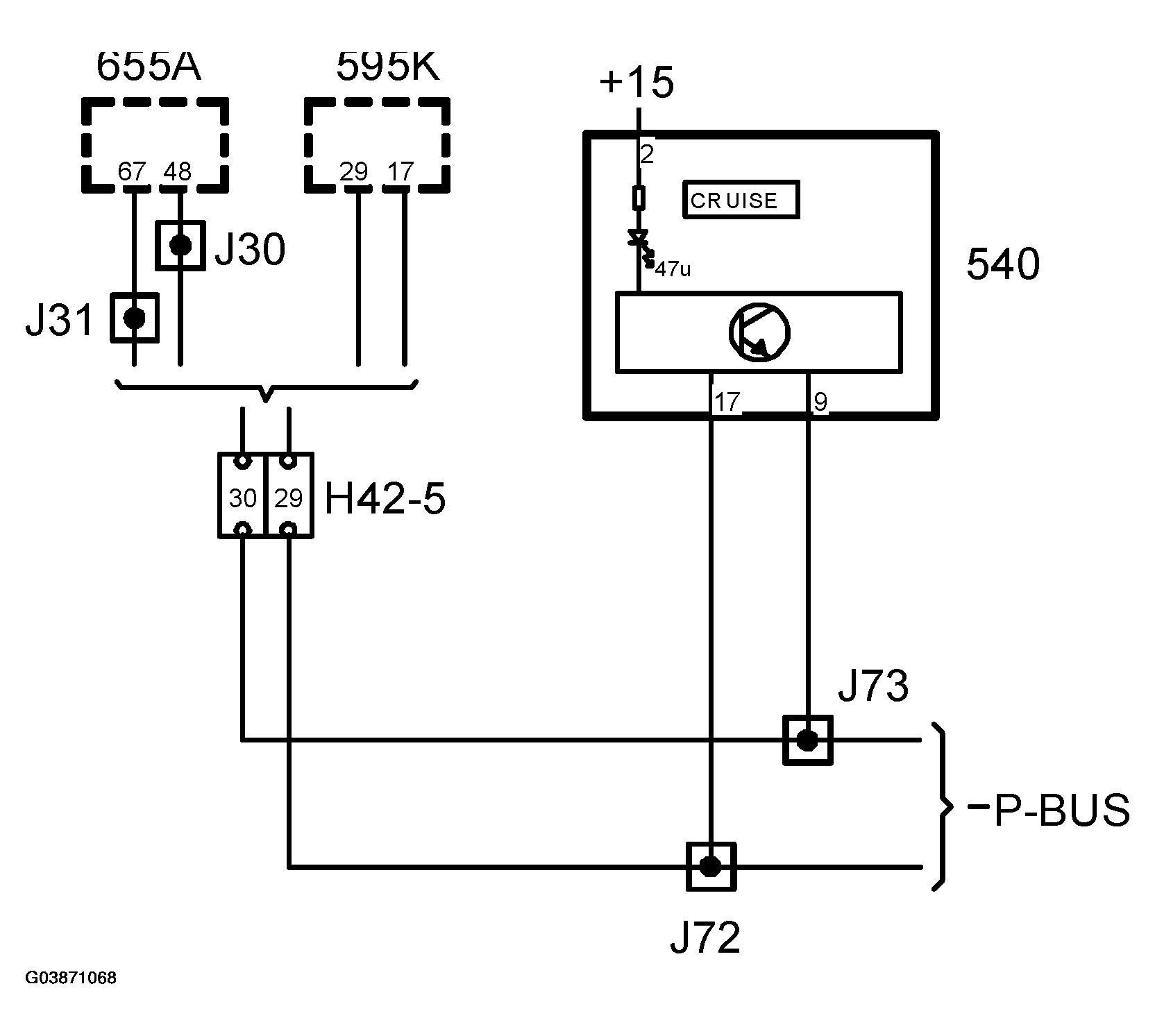

Fig 1: Cruise Indicator Lamp Circuit Diagram (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

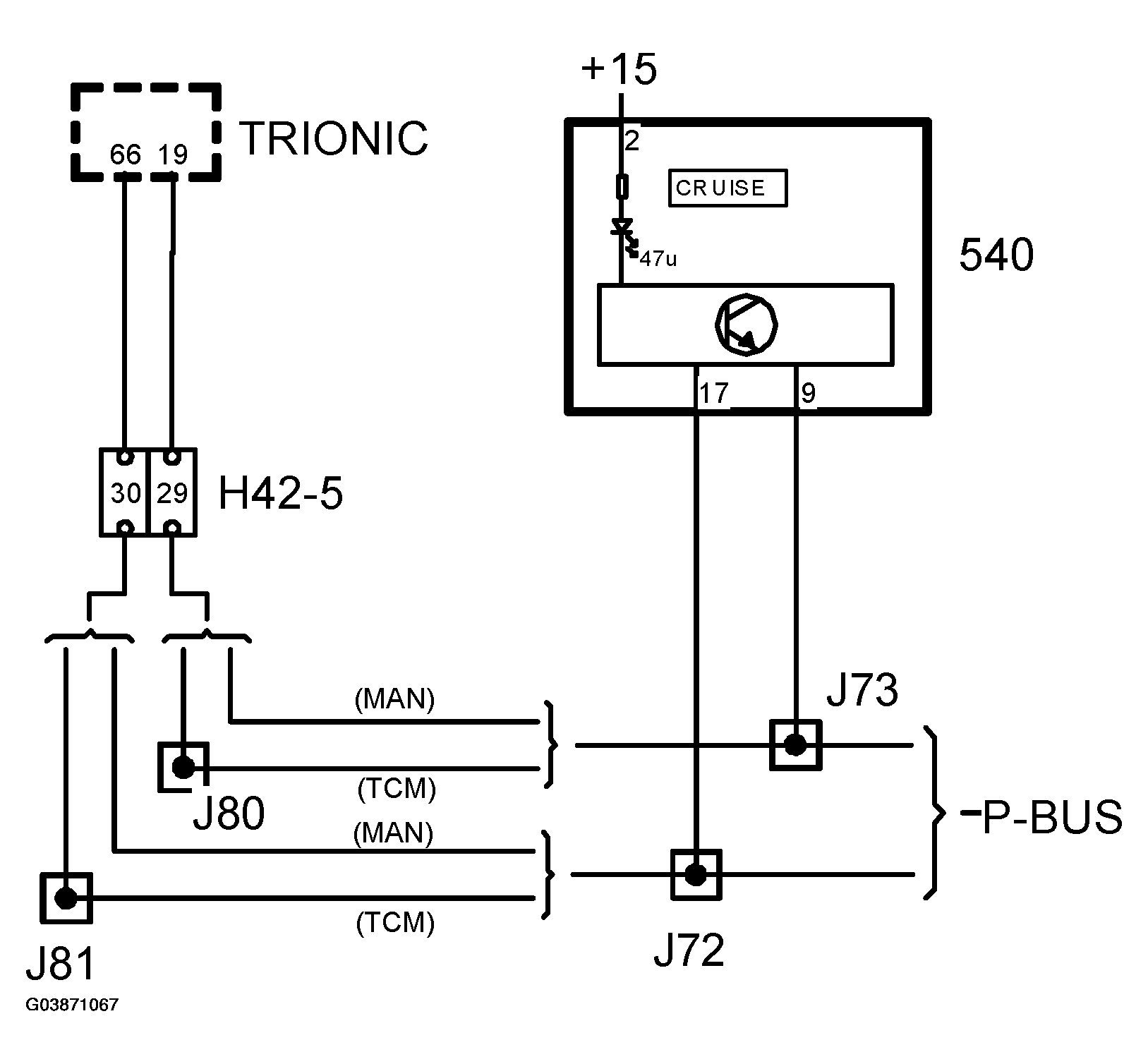

Fig 2: Cruise Indicator Lamp Circuit Diagram (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
