Turbo boost gauge: Diagnostics

The function has its own diagnostics in the sending system.

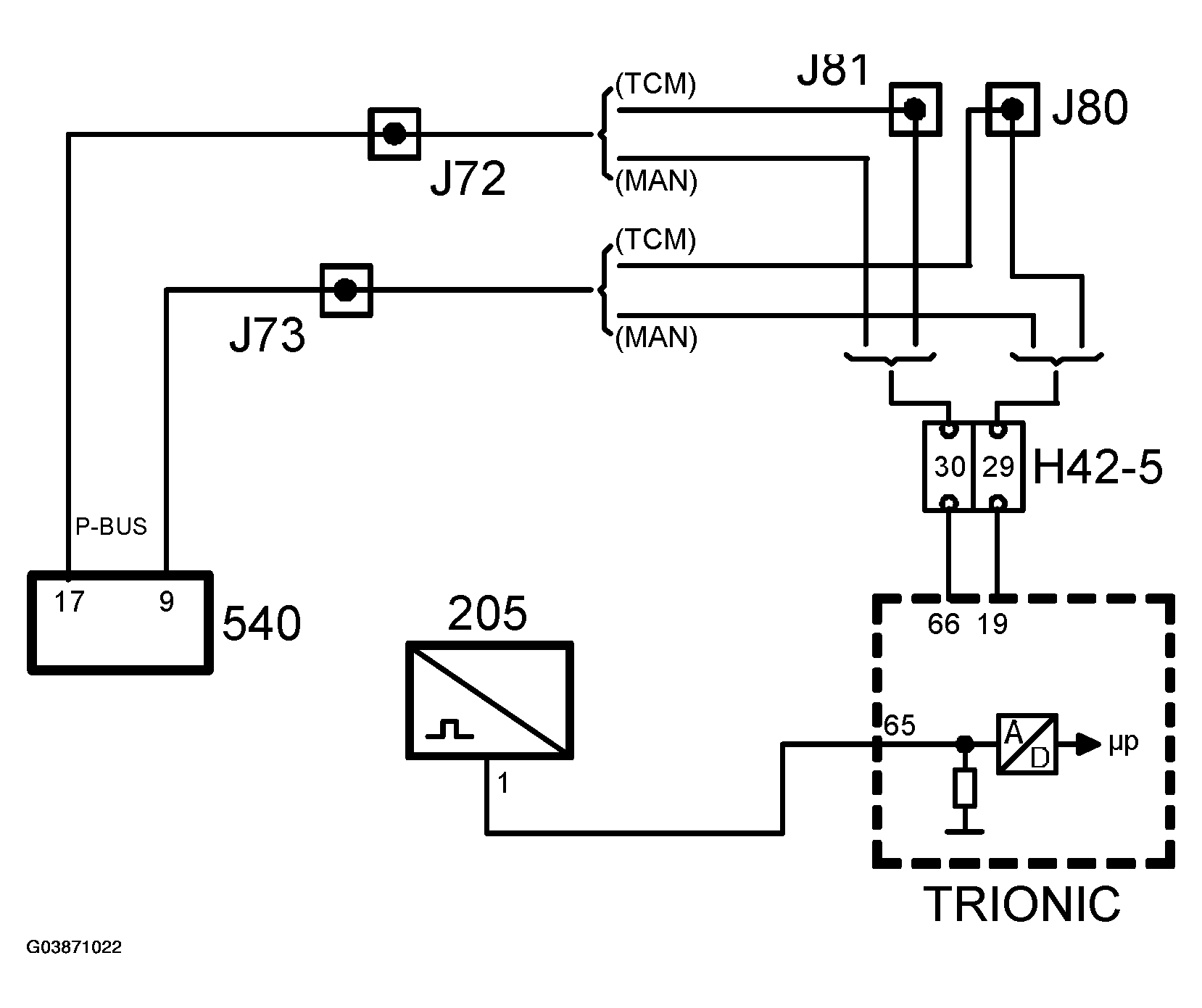

Fig 1: Turbo Boost Gauge Circuit Diagram

G03871022

Courtesy of SAAB-SCANIA OF AMERICA, INC.
