Speedometer with odometer and tripmeter (TC/ABS and ESP): Odometer/tripmeter: Diagnostics

If the vehicle speed information exceeds 270 km/h, diagnostic trouble code B1705 is set.

The function has its own diagnostics in the sending system.

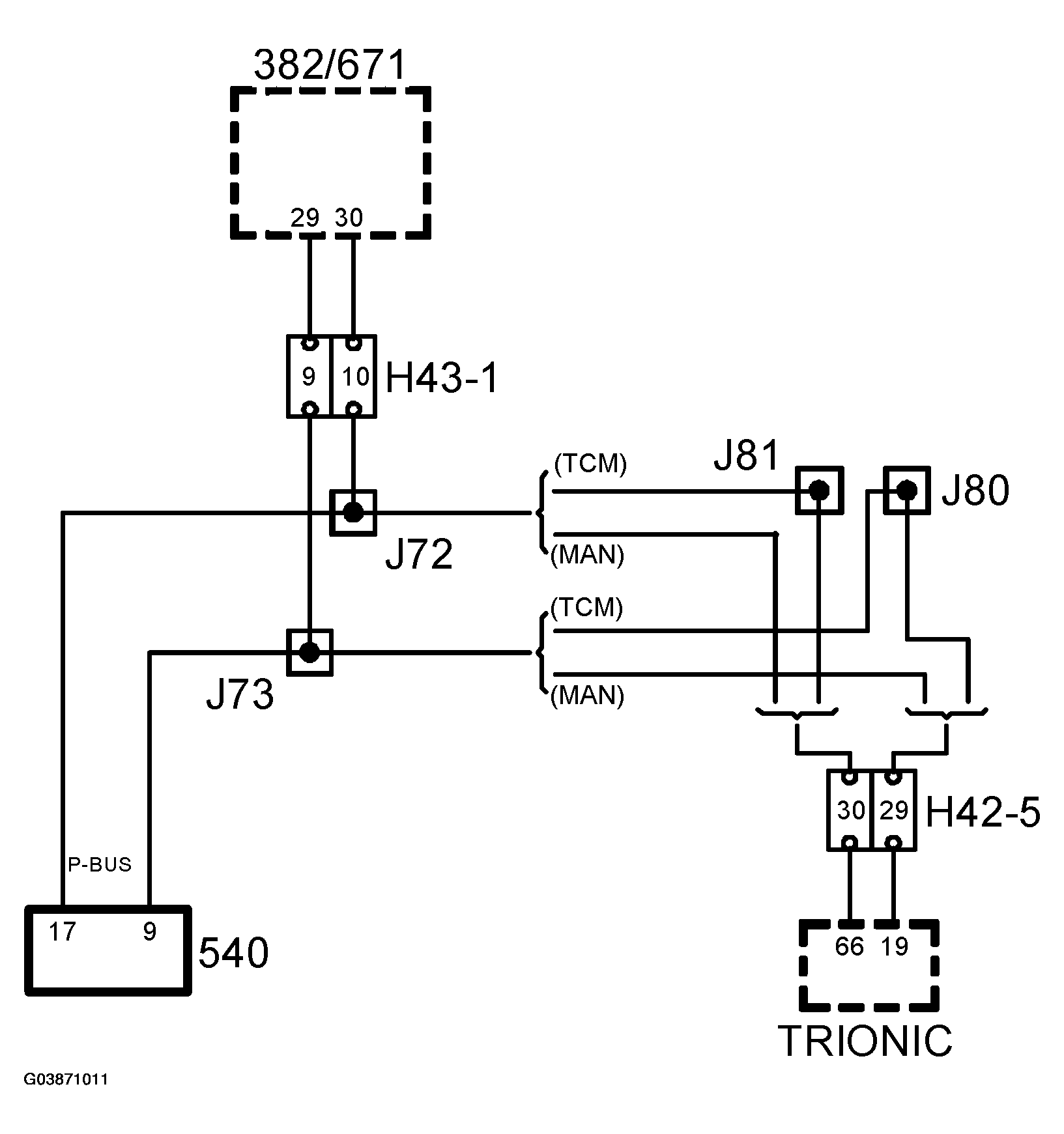

Fig 1: Speedometer With Odometer And Tripmeter (TC/ABS And ESP) Circuit (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

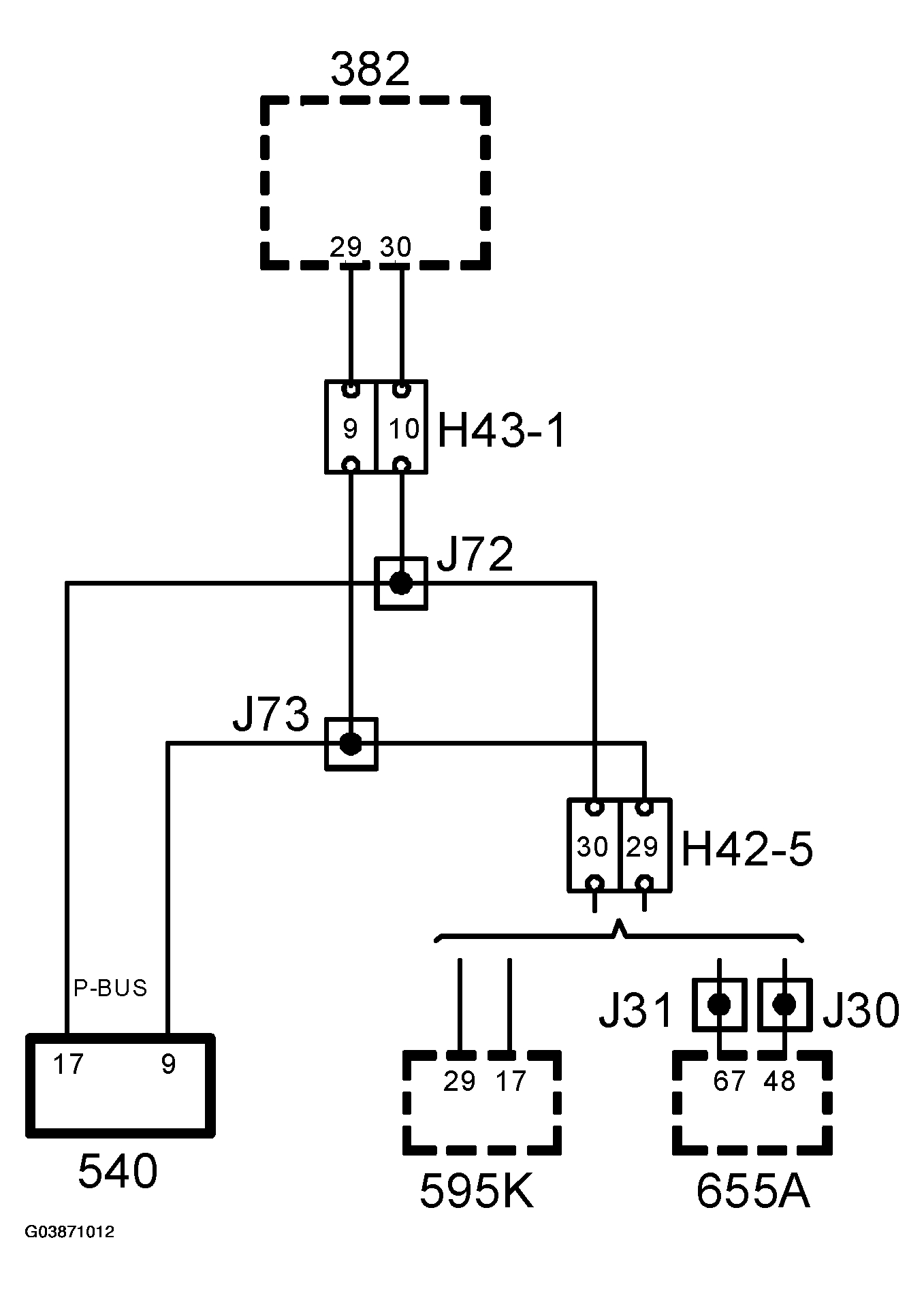

Fig 2: Speedometer With Odometer And Tripmeter (TC/ABS And ESP) Circuit (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
