Main beam lamp, LH (11FL)

Halogen

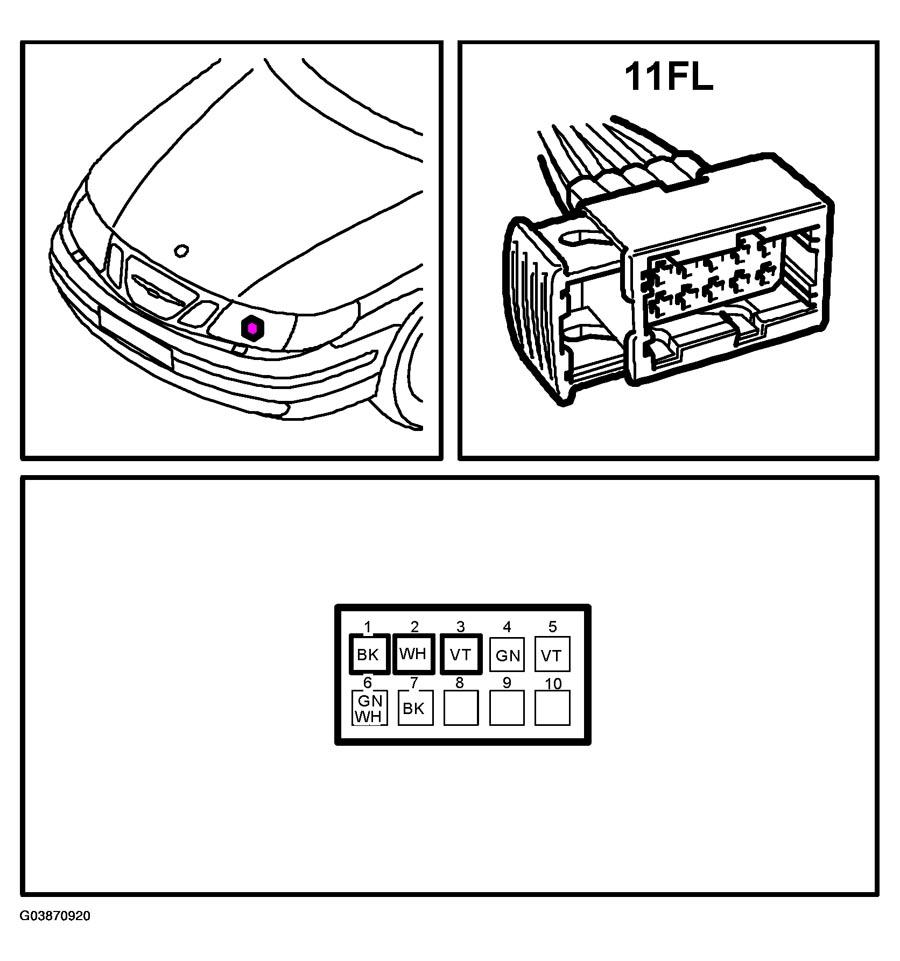

Fig 1: Identifying Main Beam Lamp, LH (11FL) - Connector Location (Halogen)
G03870920Courtesy of SAAB-SCANIA OF AMERICA, INC.

Xenon

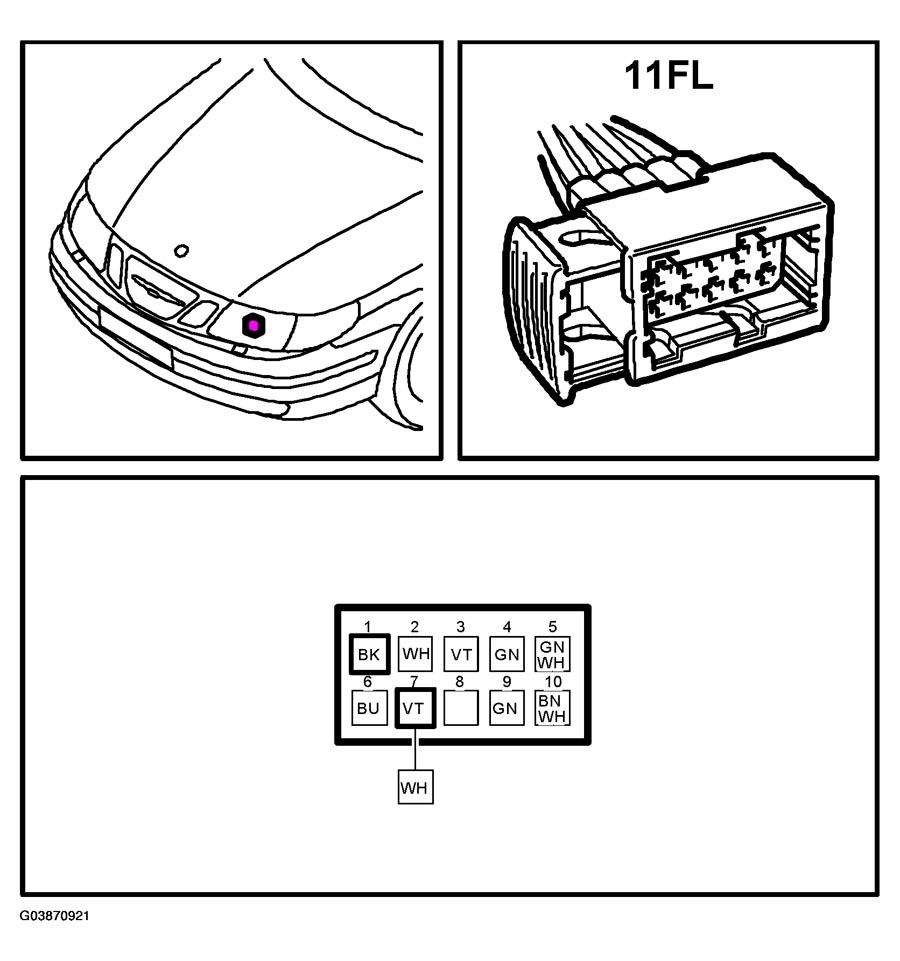

Fig 2: Identifying Main Beam Lamp, LH (11FL) - Connector Location (Xenon)
G03870921Courtesy of SAAB-SCANIA OF AMERICA, INC.
