Engine oil pressure switch (44)

4 cylinder petrol

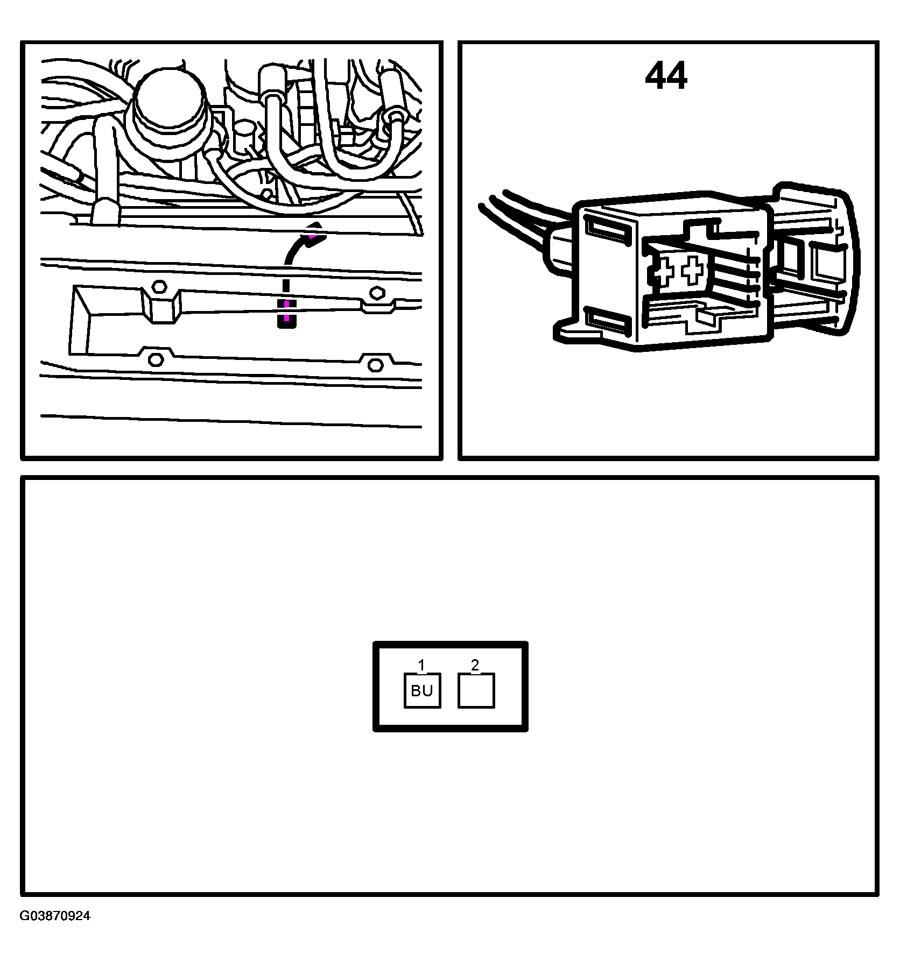

Fig 1: Identifying Engine Oil Pressure Switch (44) - Connector Location (4 Cylinder Petrol)
G03870924Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

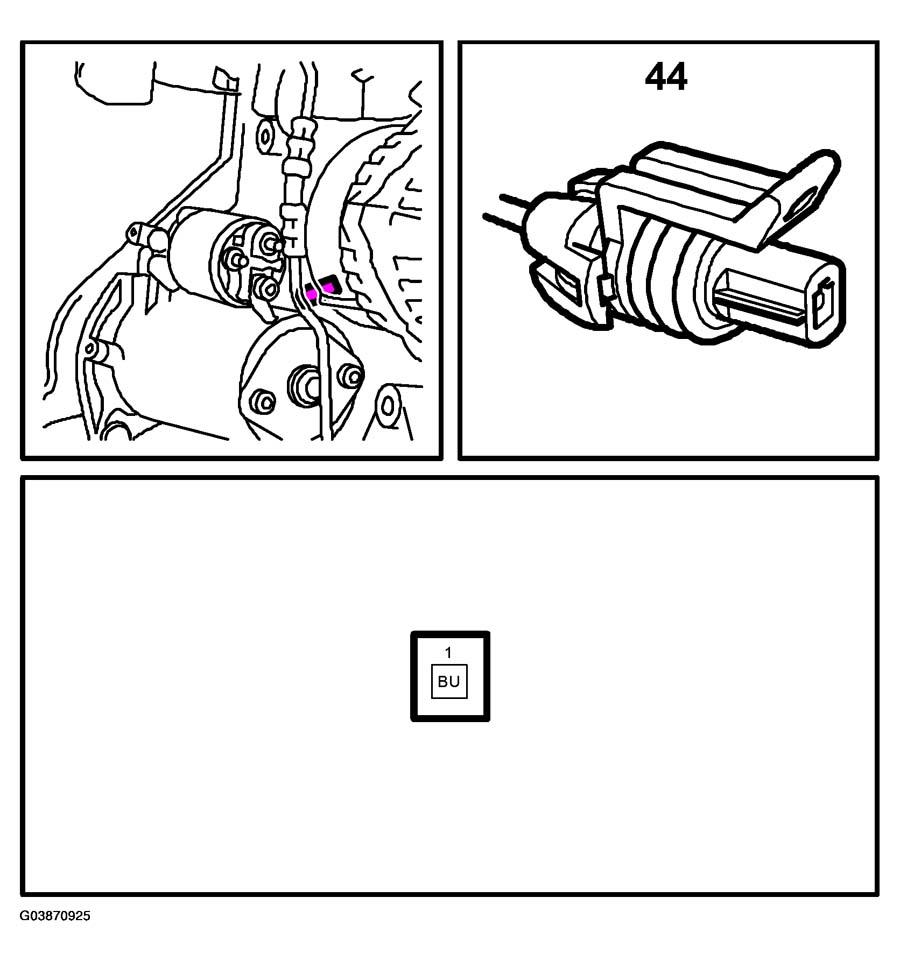

Fig 2: Identifying Engine Oil Pressure Switch (44) - Connector Location (4 Cylinder Diesel)
G03870925Courtesy of SAAB-SCANIA OF AMERICA, INC.

V6 diesel

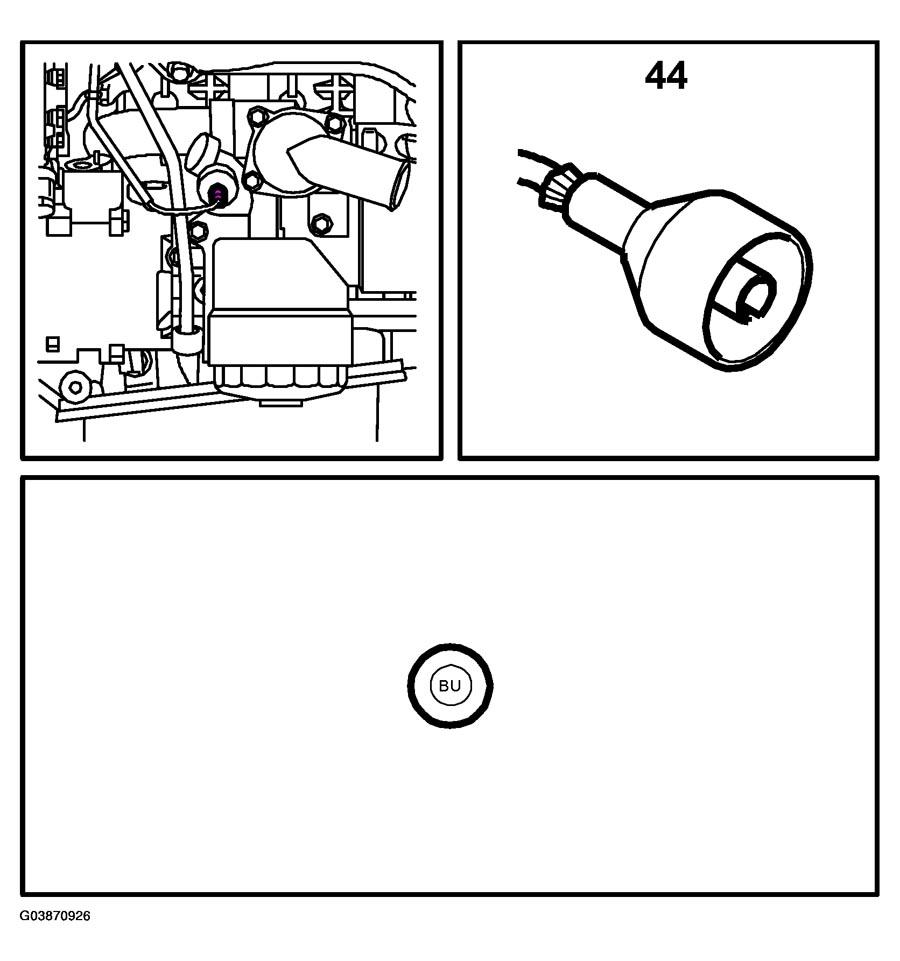

Fig 3: Identifying Engine Oil Pressure Switch (44) - Connector Location (V6 Diesel)
G03870926Courtesy of SAAB-SCANIA OF AMERICA, INC.
