Crimp connection J42, instrument harness

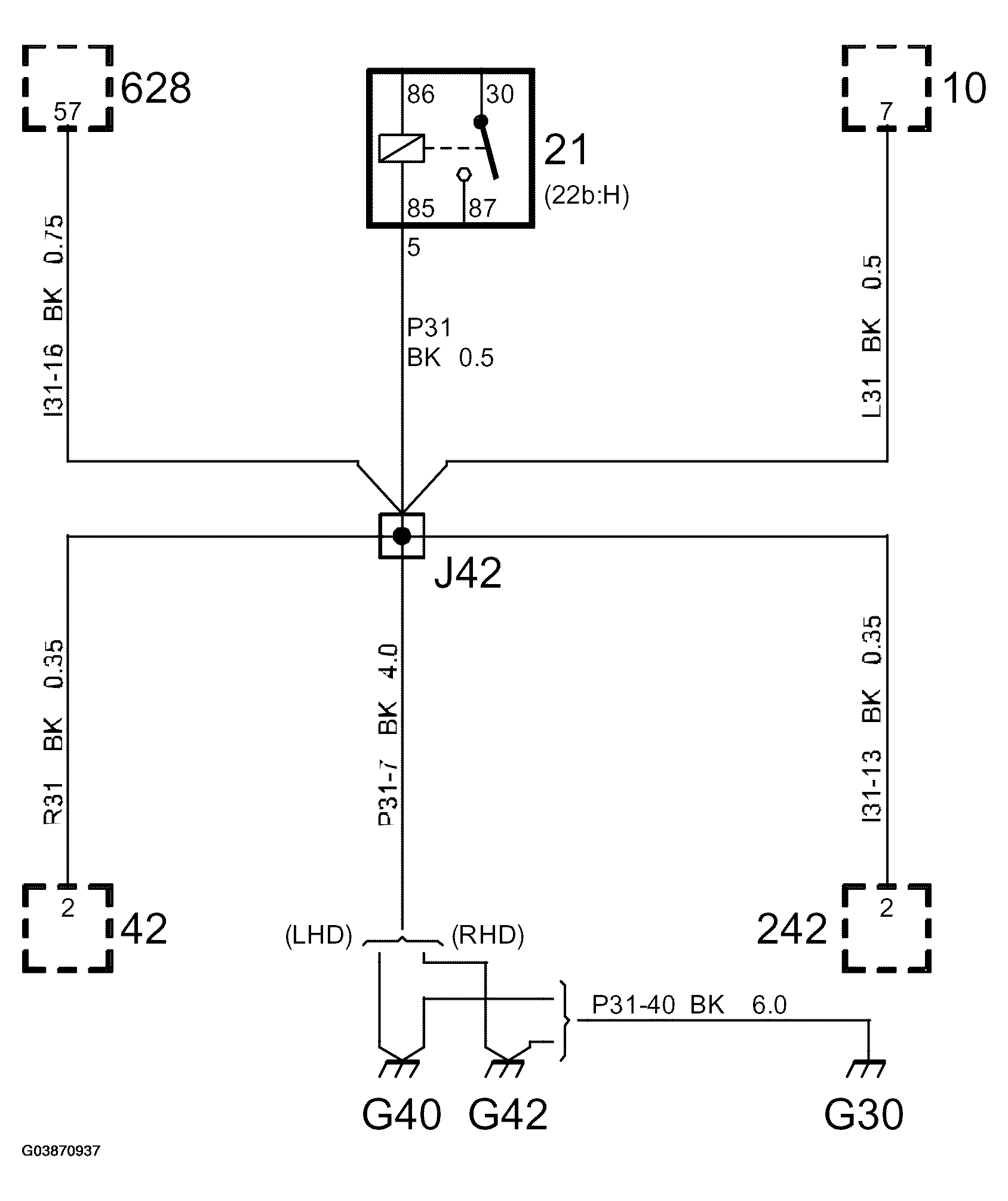

Fig 1: Crimp Connection J42, Instrument Harness Circuit Diagram

G03870937

Courtesy of SAAB-SCANIA OF AMERICA, INC.
