Main Instrument Unit
>>
Component Location
>>
Crimp connection J200, front harness
Crimp connection J200, front harness

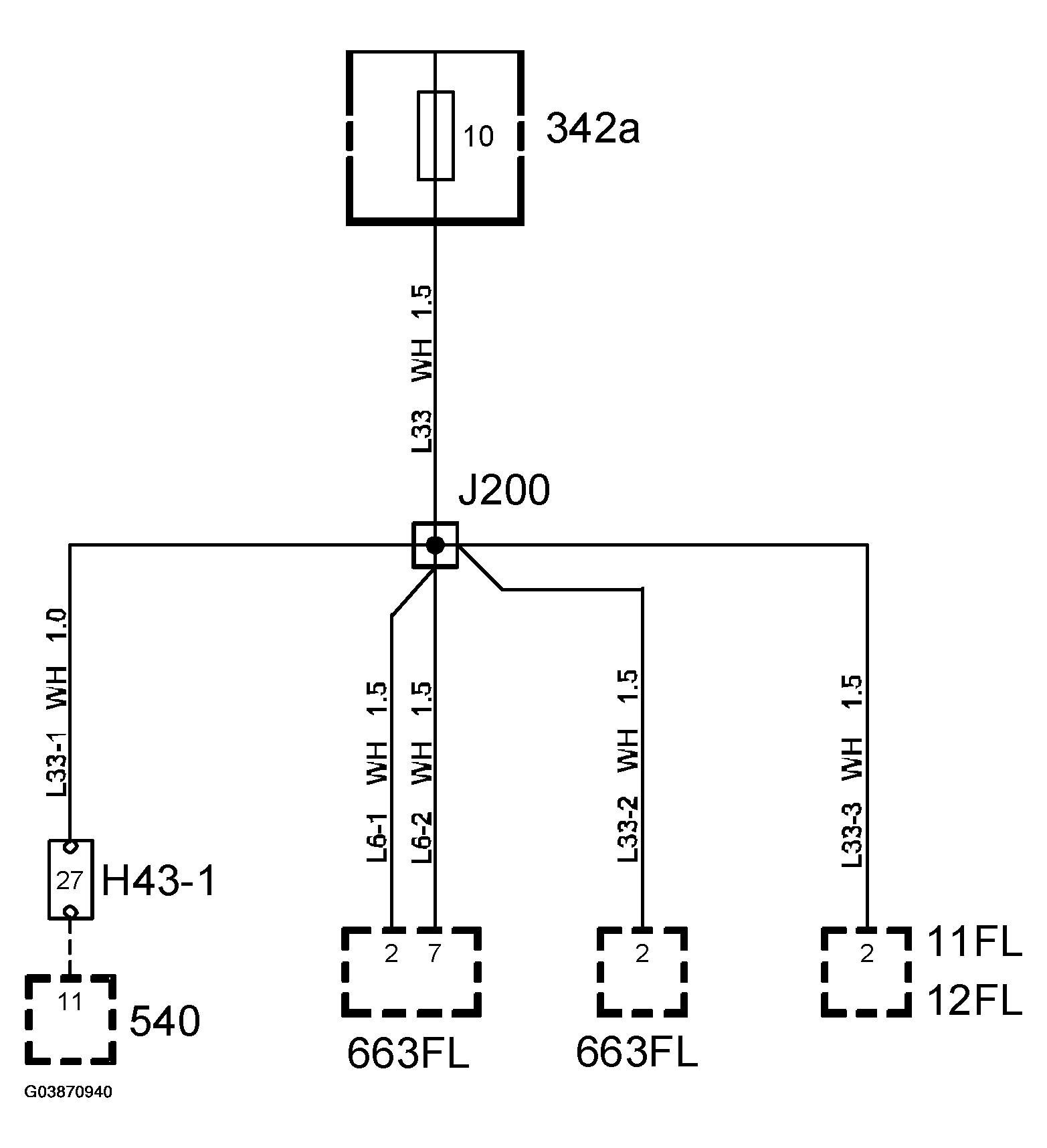

Fig 1: Crimp Connection J200, Front Harness Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
