To fit

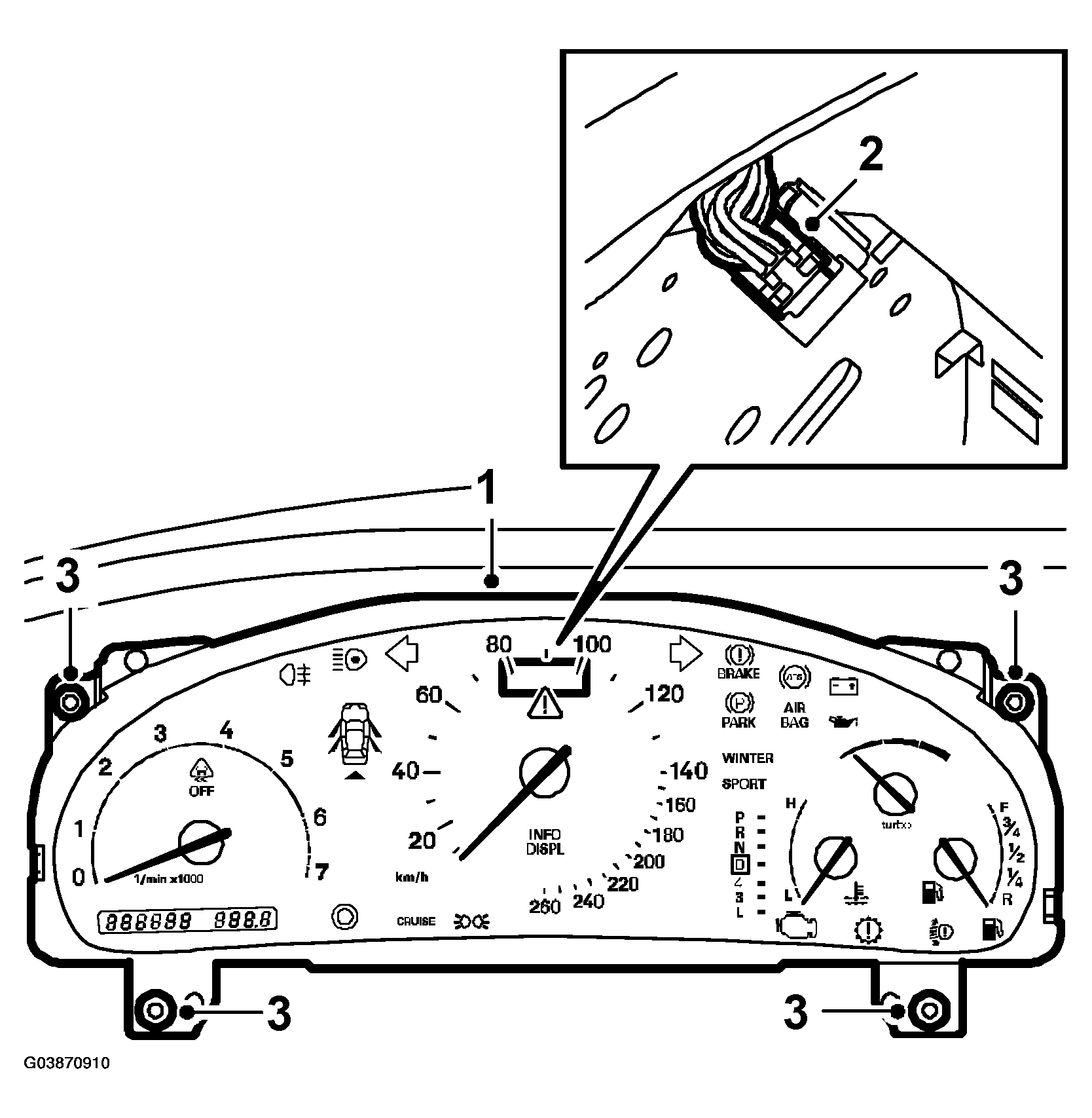

Fig 1: Illustration For Steps 1 To 3
G03870910Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Put the main instrument unit into position.
  2. Plug in the connector.
  3. Fit the screws securing the main instrument unit.
  4. Fit the instrument panel, securing it with the screws and clips.
    Fig 2: Illustration For Steps 4 To 8
    G03870911Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the two button blanks.
  6. Plug in the three connectors for the switches to the left of the steering wheel.

    Ensure they are in the correct order. Refit the light switch unit and plug in the light switch connector.

  7. Fit the cover over the fuses.
  8. Fit the switches (to the right of the steering wheel).
  9. Fit the ACC/heating and ventilation unit.
    Fig 3: Illustration For Steps 9 To 13
    G03870912Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Fit the SID unit.
  11. Fit the radio.
  12. Plug in the connectors for the direction indicators and windscreen wipers and fit the stalk switches.
  13. Fit the upper and lower steering column cowls.
