Adjustment Of Fuel Gauge Night Panel

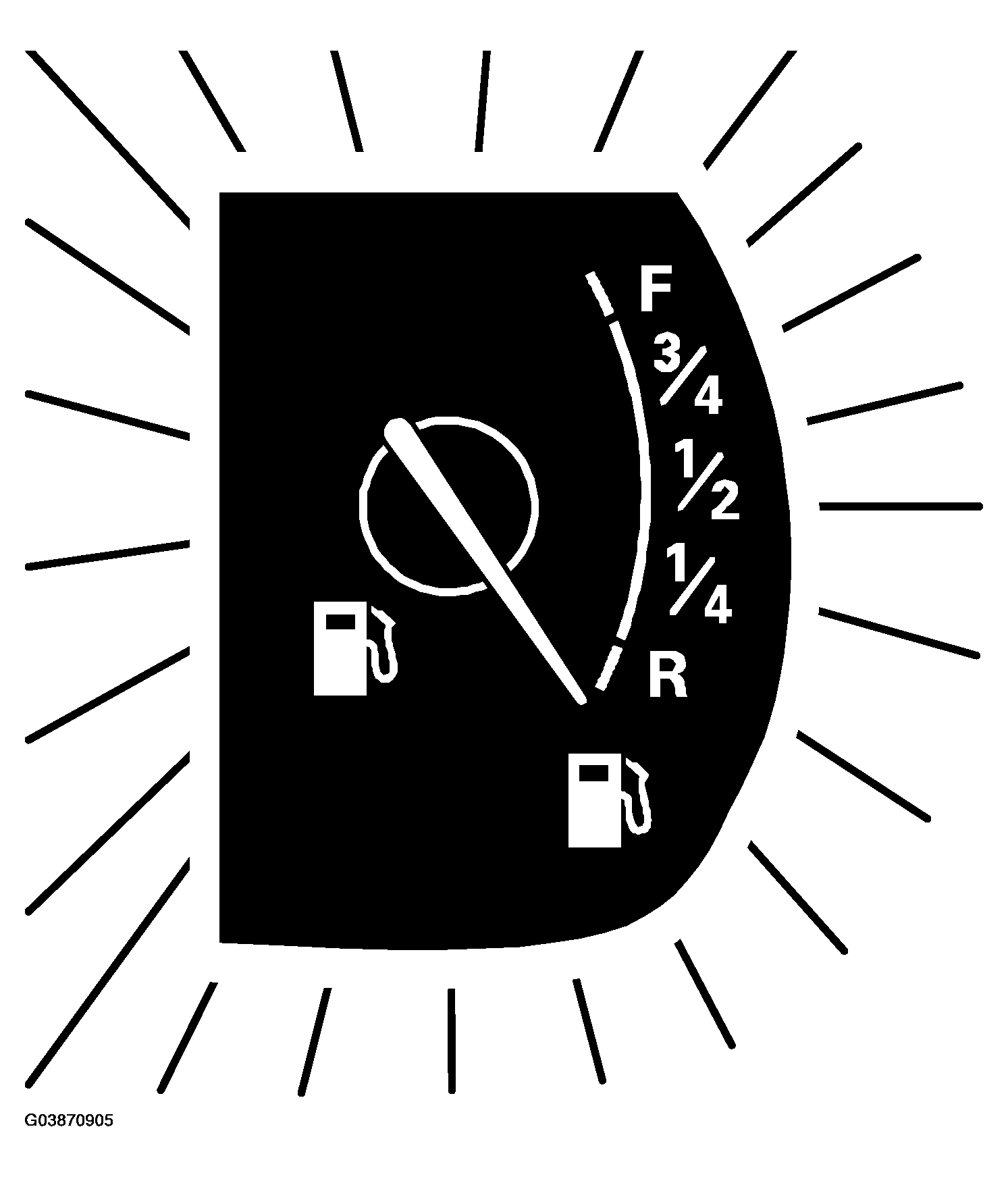

The Night Panel function in SID turns off the lighting for the fuel gauge under normal conditions. If the fuel falls below a given level, then the lighting for the fuel gauge will light up. This command enables alteration of the fuel level at which the main instrument unit lights up the fuel gauge when Night Panel is active. The works setting is 15 liters.
Adjustment can be checked afterwards by activating Night Panel with the diagnostic tool.
