Daylight Driving Lights: Diagnosis

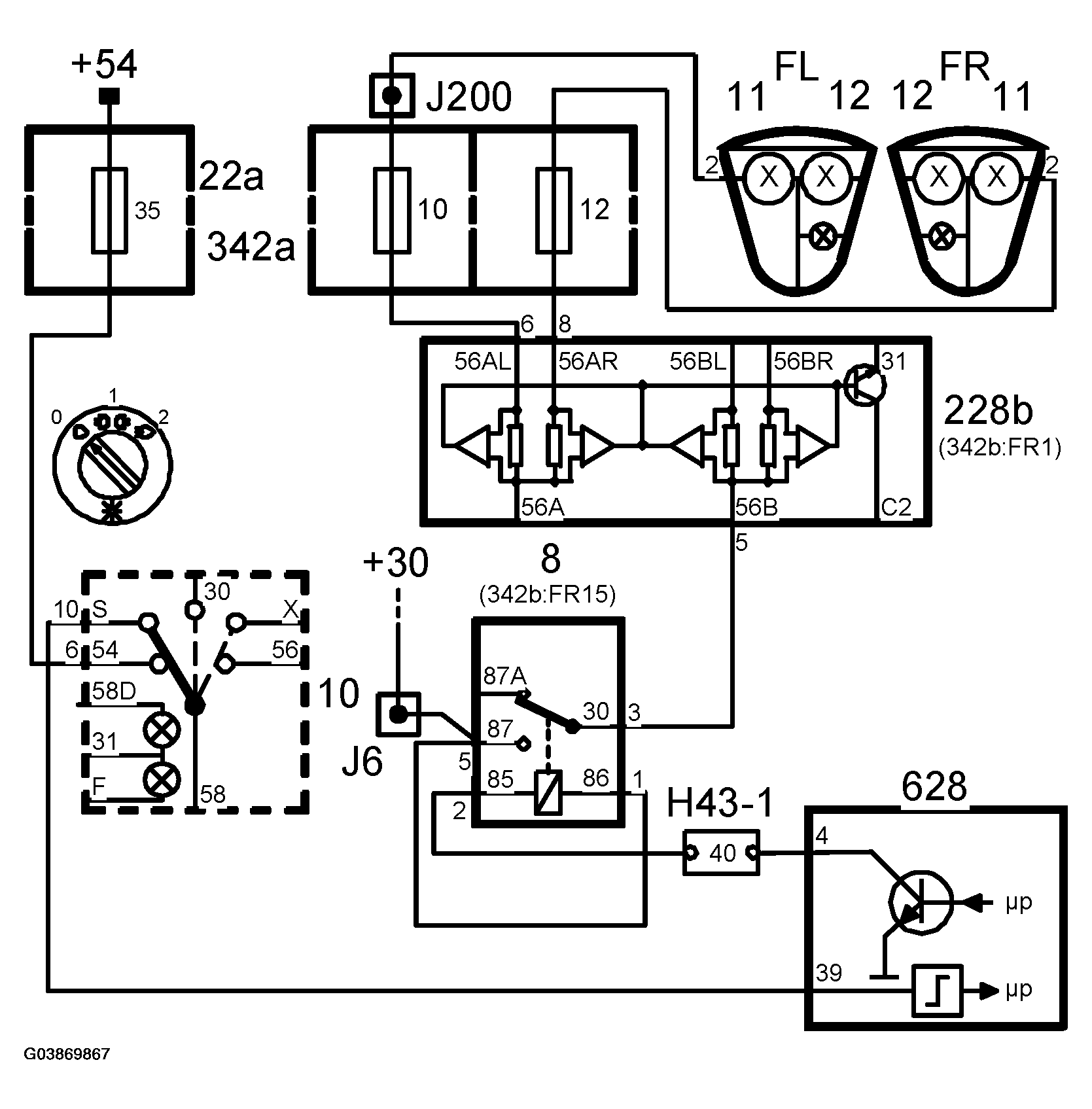

Fig 1: Identifying Daylight Driving Lights Circuit Diagram
G03869867Courtesy of SAAB-SCANIA OF AMERICA, INC.

Diagnostic trouble code 1160 is generated in the event of an open circuit or a short circuit to ground or a short circuit to B+.

DTCs are not generated if the voltage is below 11 V or during diagnostic communication.
