Fault symptoms

Direction indicators or hazard flashers not working on one or both sides.

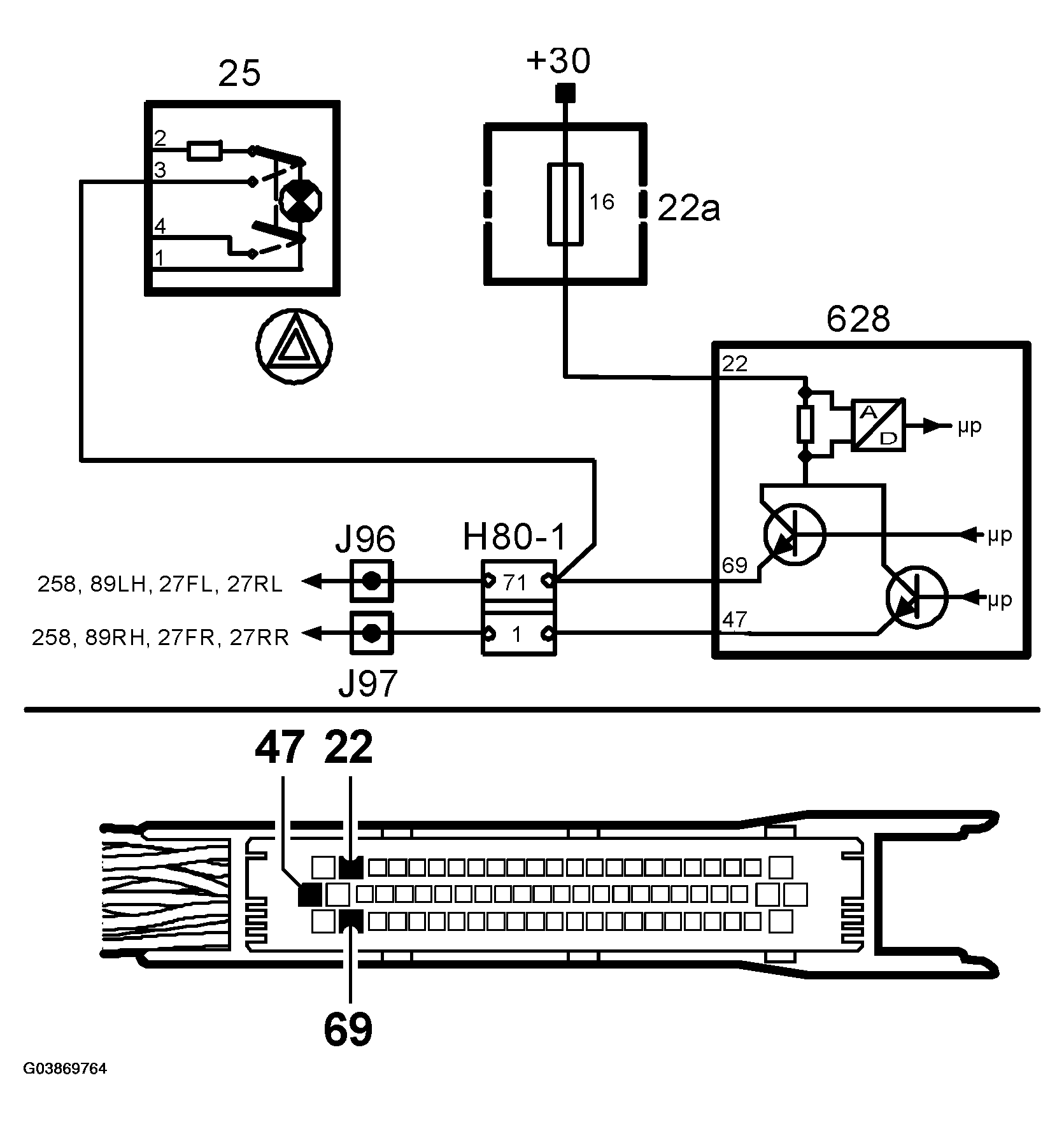

Fig 1: Identifying Direction Indicators Circuit Diagram And Connector Terminals (1 Of 2)
G03869764Courtesy of SAAB-SCANIA OF AMERICA, INC.

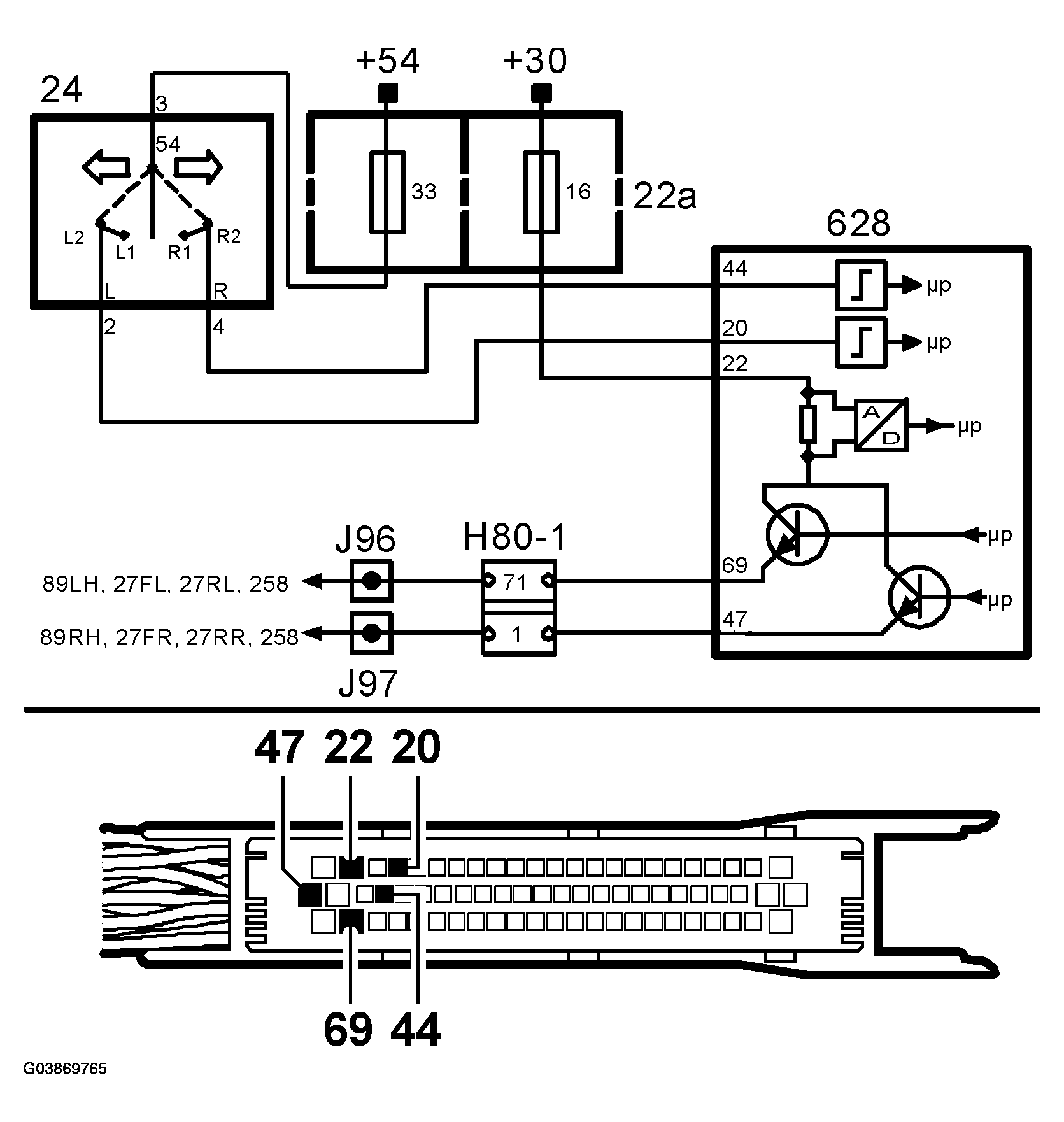

Fig 2: Identifying Direction Indicators Circuit Diagram And Connector Terminals (2 Of 2)
G03869765Courtesy of SAAB-SCANIA OF AMERICA, INC.
