To fit

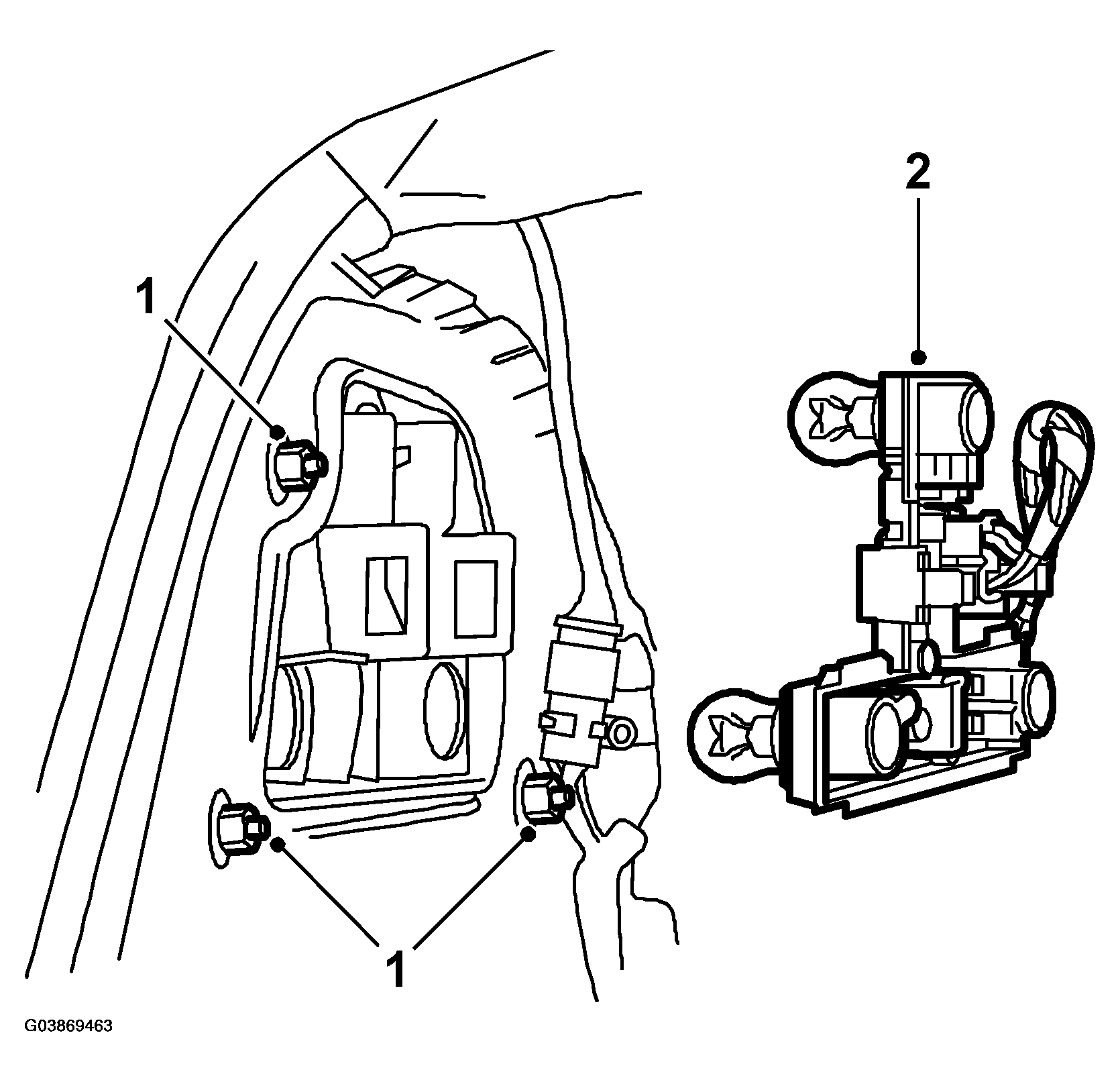

Fig 1: Illustration For Step 1-2
G03869463Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the lens correctly and screw on the retaining nuts.
  2. Fit the lamp holder.
  3. Fit the trim.

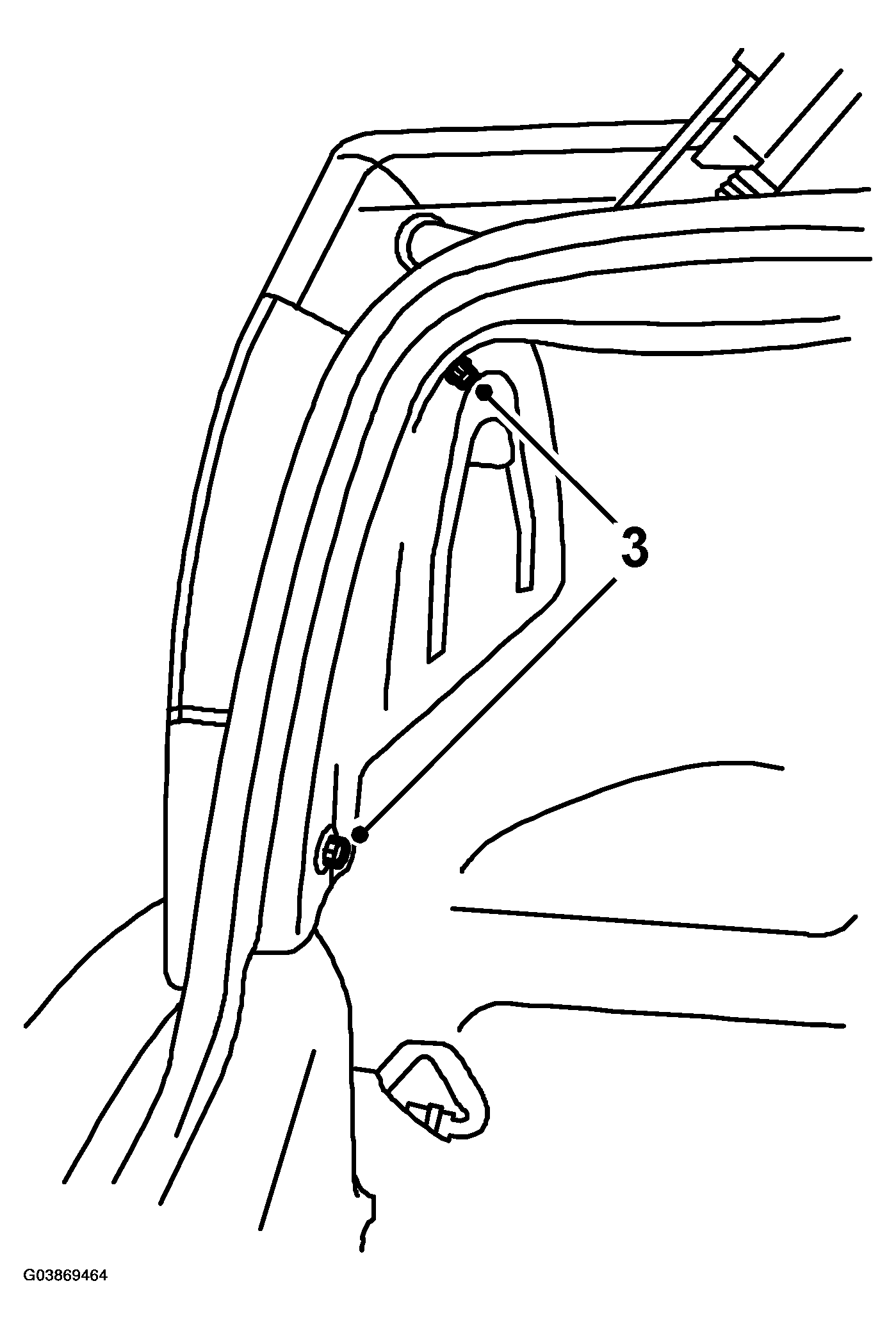

    Fig 2: Illustration For Step 3
    G03869464Courtesy of SAAB-SCANIA OF AMERICA, INC.
