Checking the wiring harness

Jiggle the wiring harness at several points and in different directions to check if there are intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic instrument during the test.

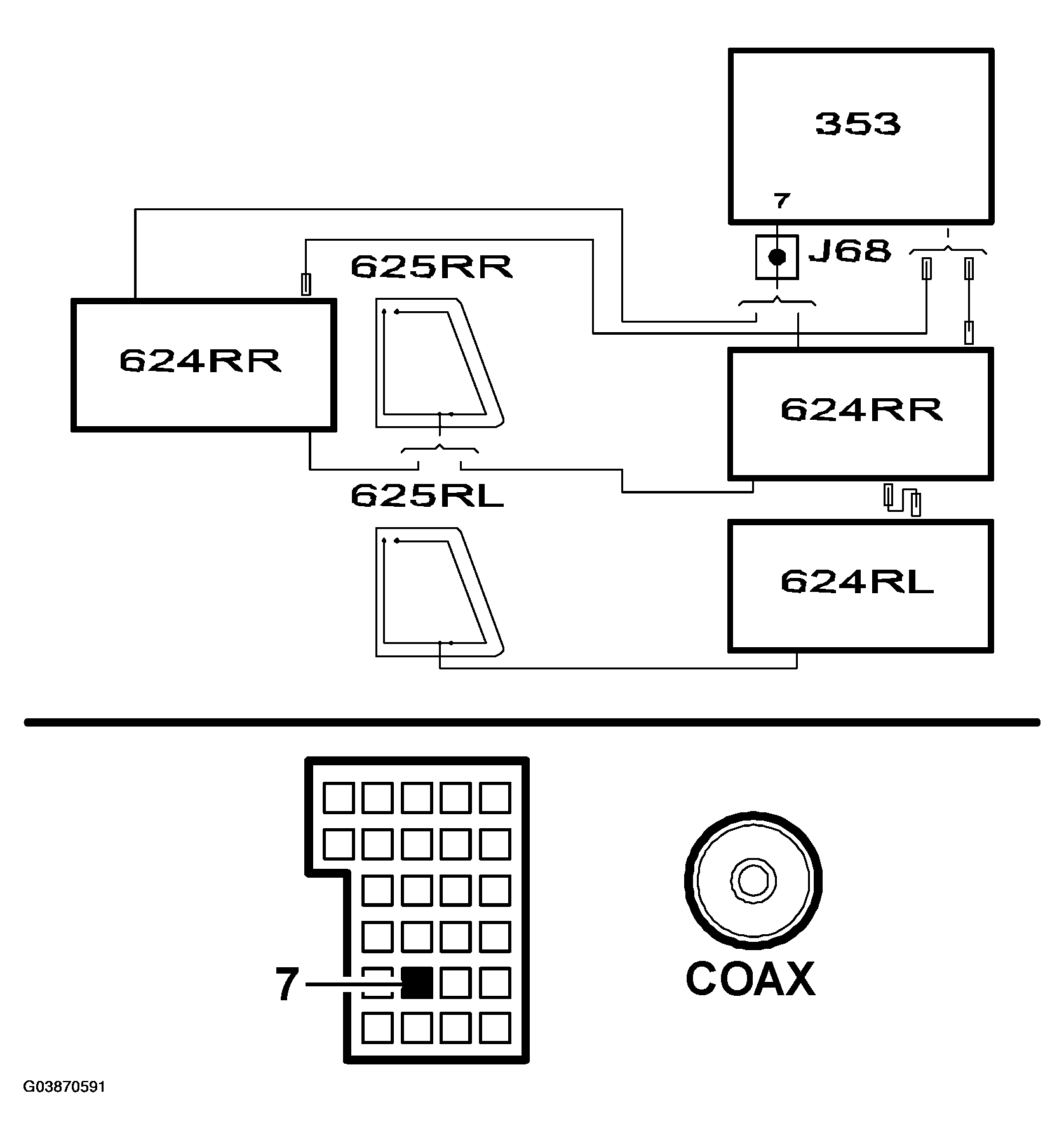

Fig 1: Audio System Wiring Diagram - Poor Radio Reception (2 Of 2)
G03870591Courtesy of SAAB-SCANIA OF AMERICA, INC.
