No sound on one or both channels of the CD changer. The SID displays CD changer information: Notes

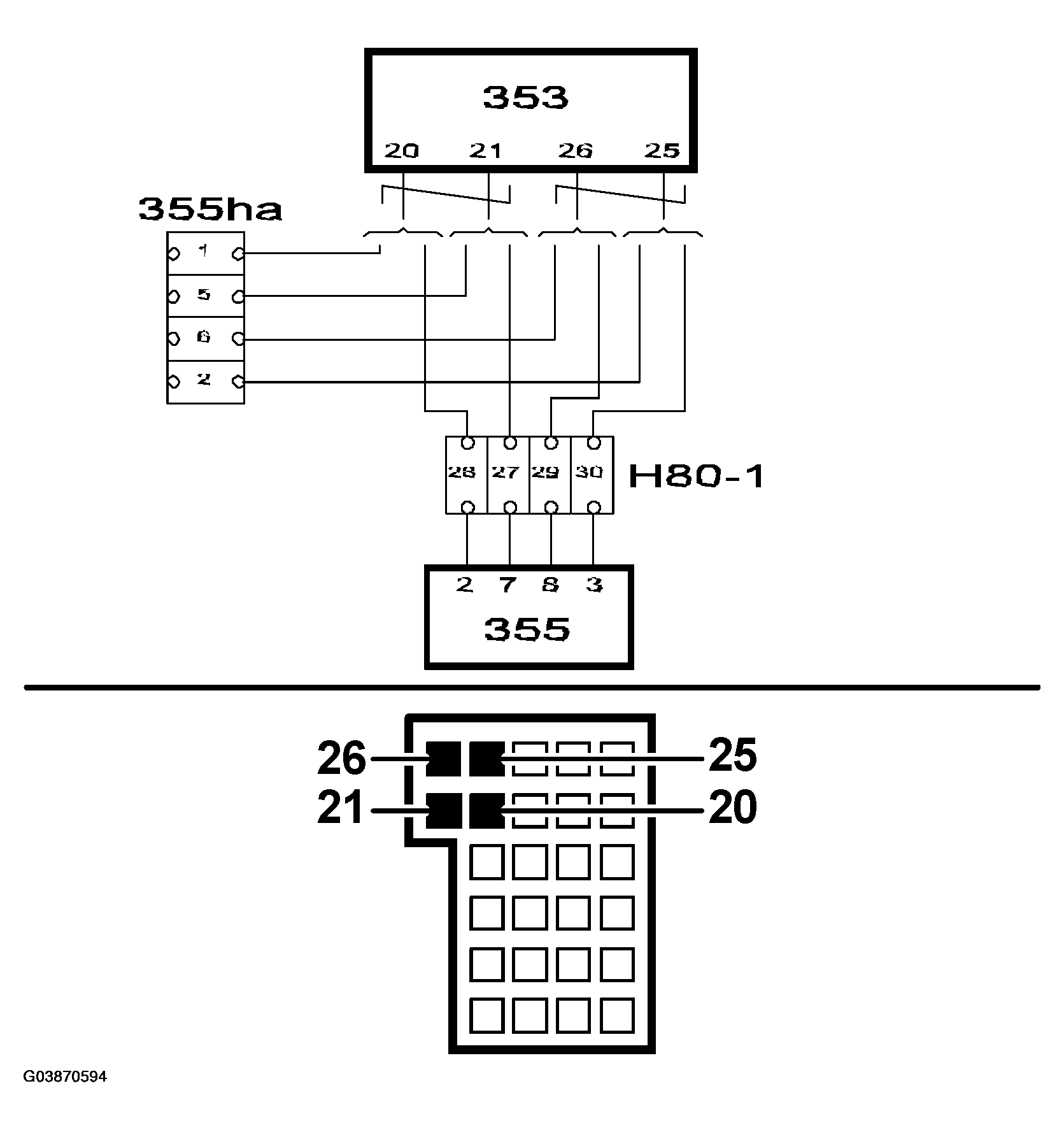

Fig 1: Audio System Wiring Diagram - No Sound On One Or Both Channels Of CD Changer
G03870594Courtesy of SAAB-SCANIA OF AMERICA, INC.
