To remove

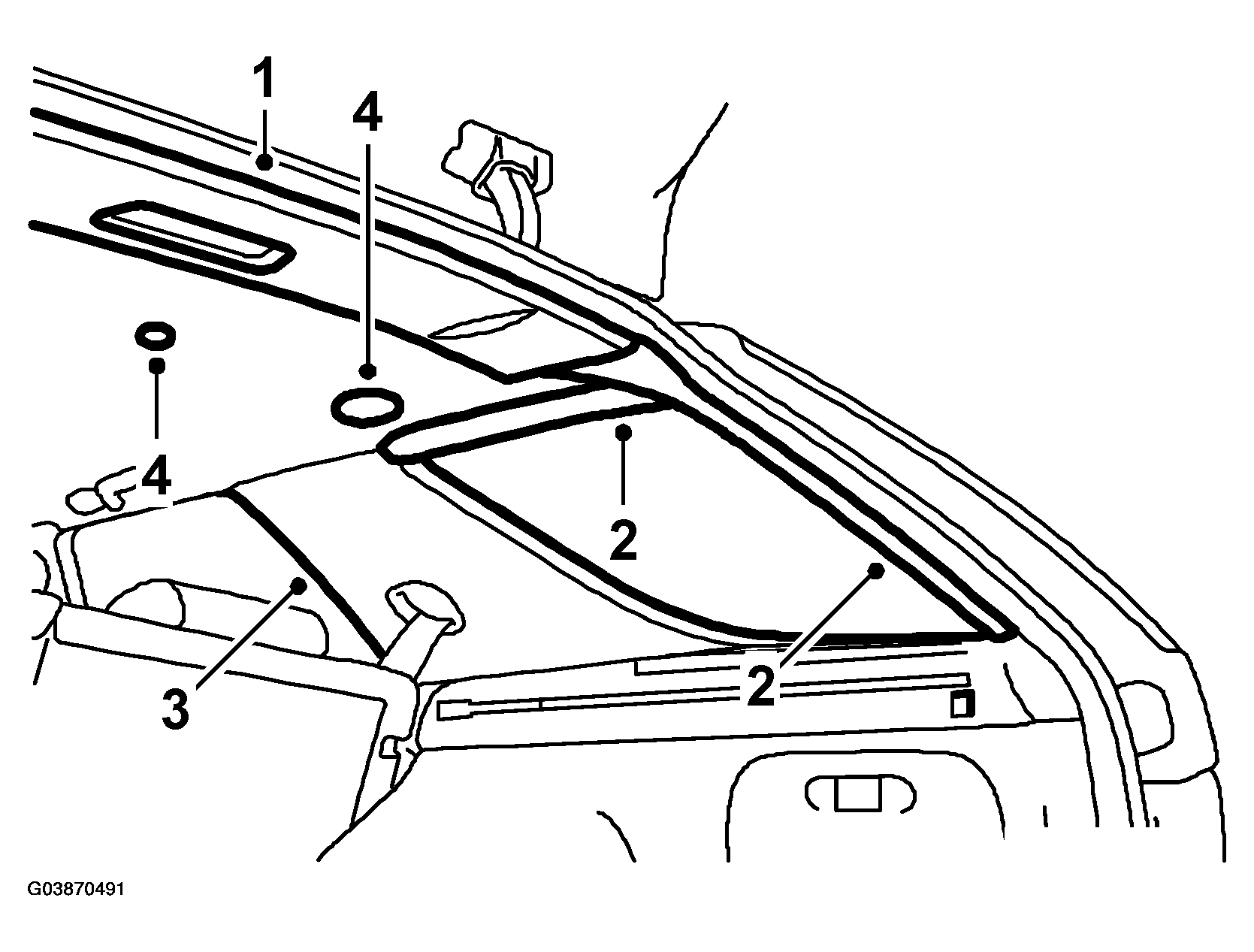

Fig 1: Illustration For Step 1-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the rear roof cover and unplug the connectors for the lighting.
Remove the D-pillar trim and the roof covers over the rear side windows.
Remove the fasteners in the roof trim over the rear side windows and undo the top of both C-pillar trims.
Remove the two clips in the roof and carefully bend down the headlining.
Unplug the antenna cable from the antenna amplifier and remove the antenna cable with clips.

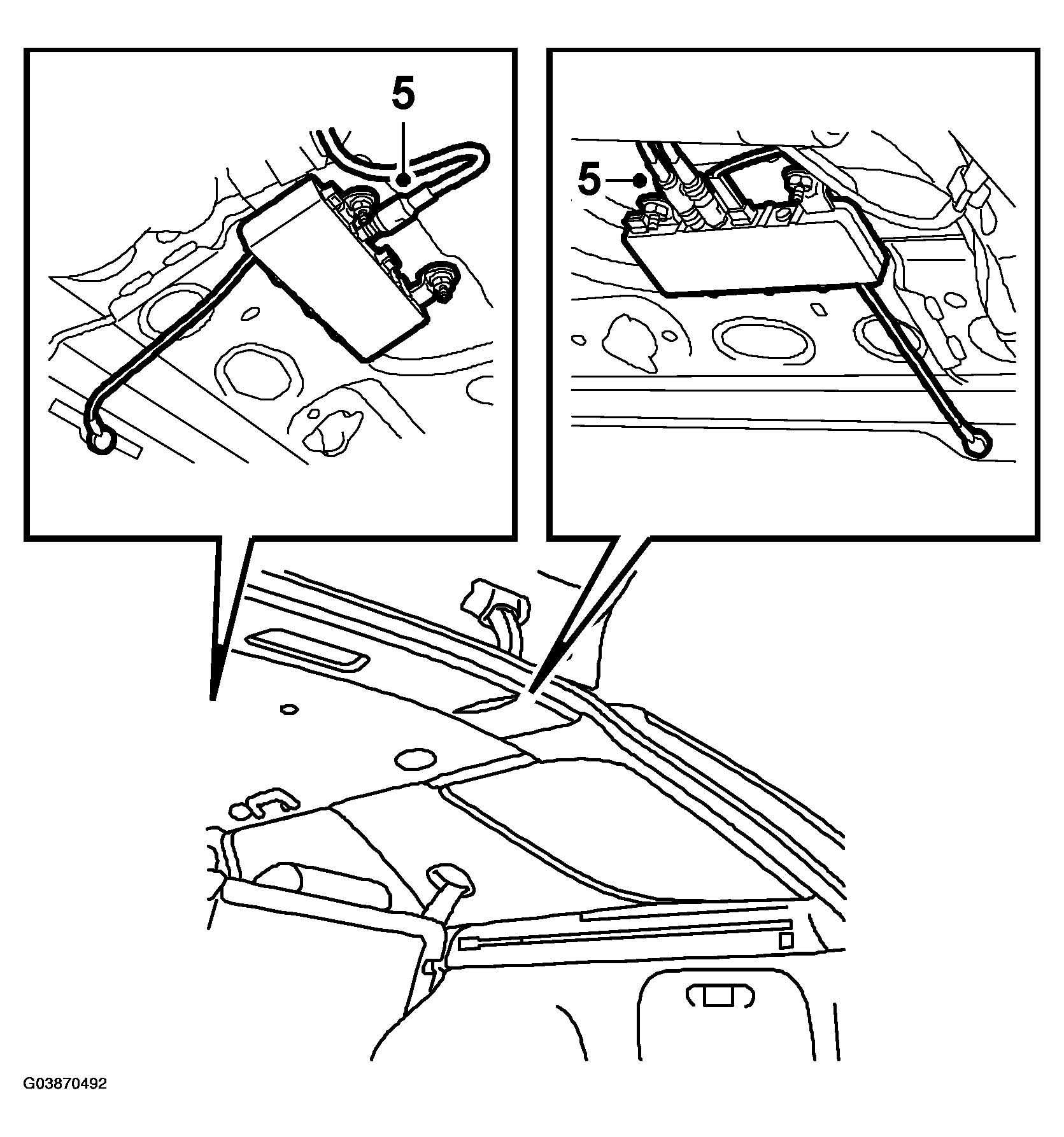

Fig 2: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: Handle the HF connector (5) with care. Exercise care when undoing the high frequency connector, Fuba GONOGO. Disconnection must be performed correctly so as not to damage the connector. See ANTENNA AMPLIFIER (4D)
