System overview, radiator fan system (Cars with A/C)

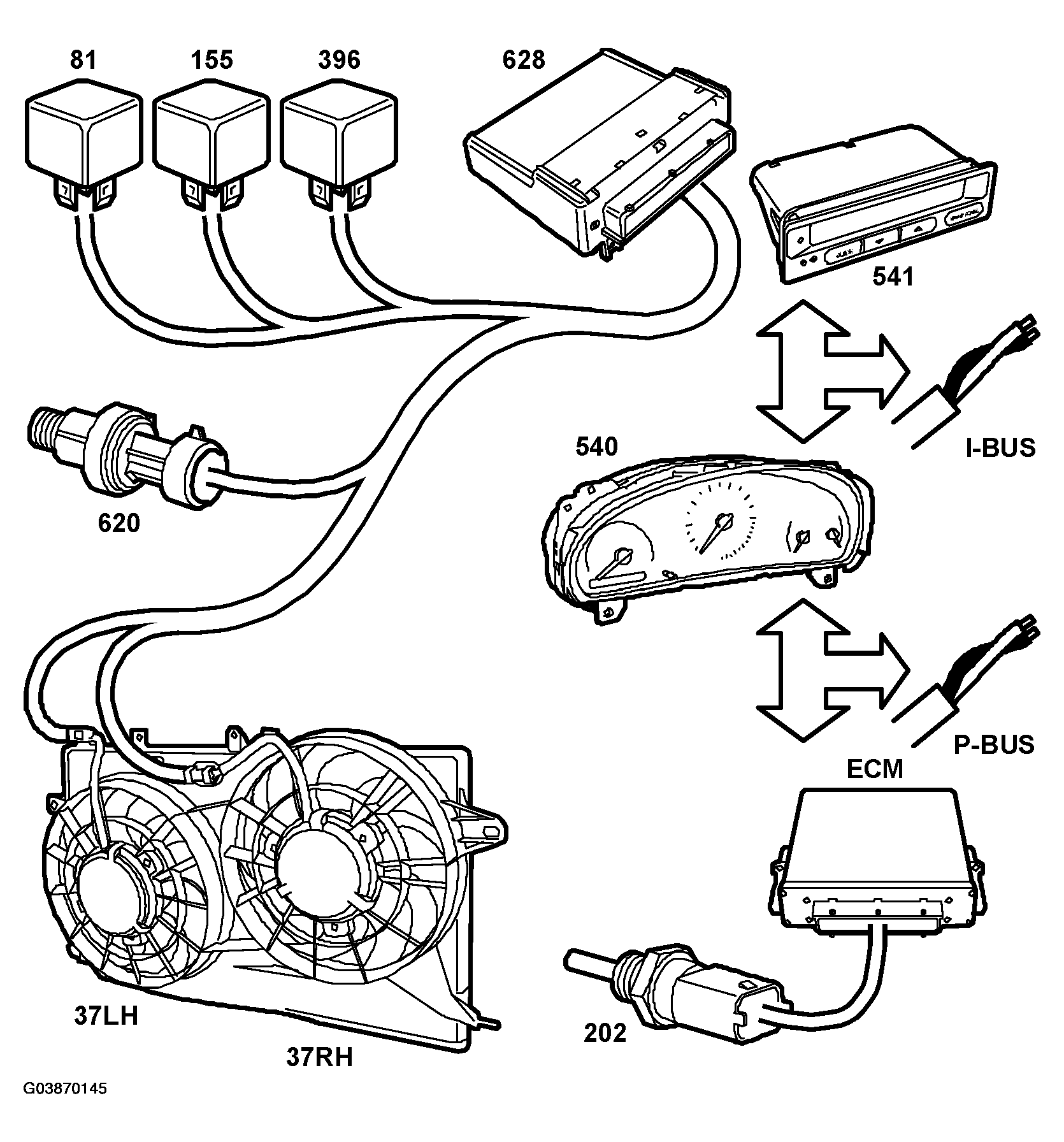

Fig 1: System Overview of Radiator Fan System (Cars With A/C)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Control module, DICE (628)
• Relay, 2-speed radiator fan, low speed (155)
• Relay, 2-speed radiator fan, high-speed (81)
• Relay, high speed, RH radiator fan (396)
• Motor, radiator fans (37LH, 37RH)
• Engine management system (430, 589, 595, 655)
• Main instrument panel (540)
• Engine coolant temperature sensor, engine management system (202)
• Pressure sensor, A/C (620)
• SID (541)
