System overview, electrically heated rear window and door mirrors (Cars with MCC) (5D)

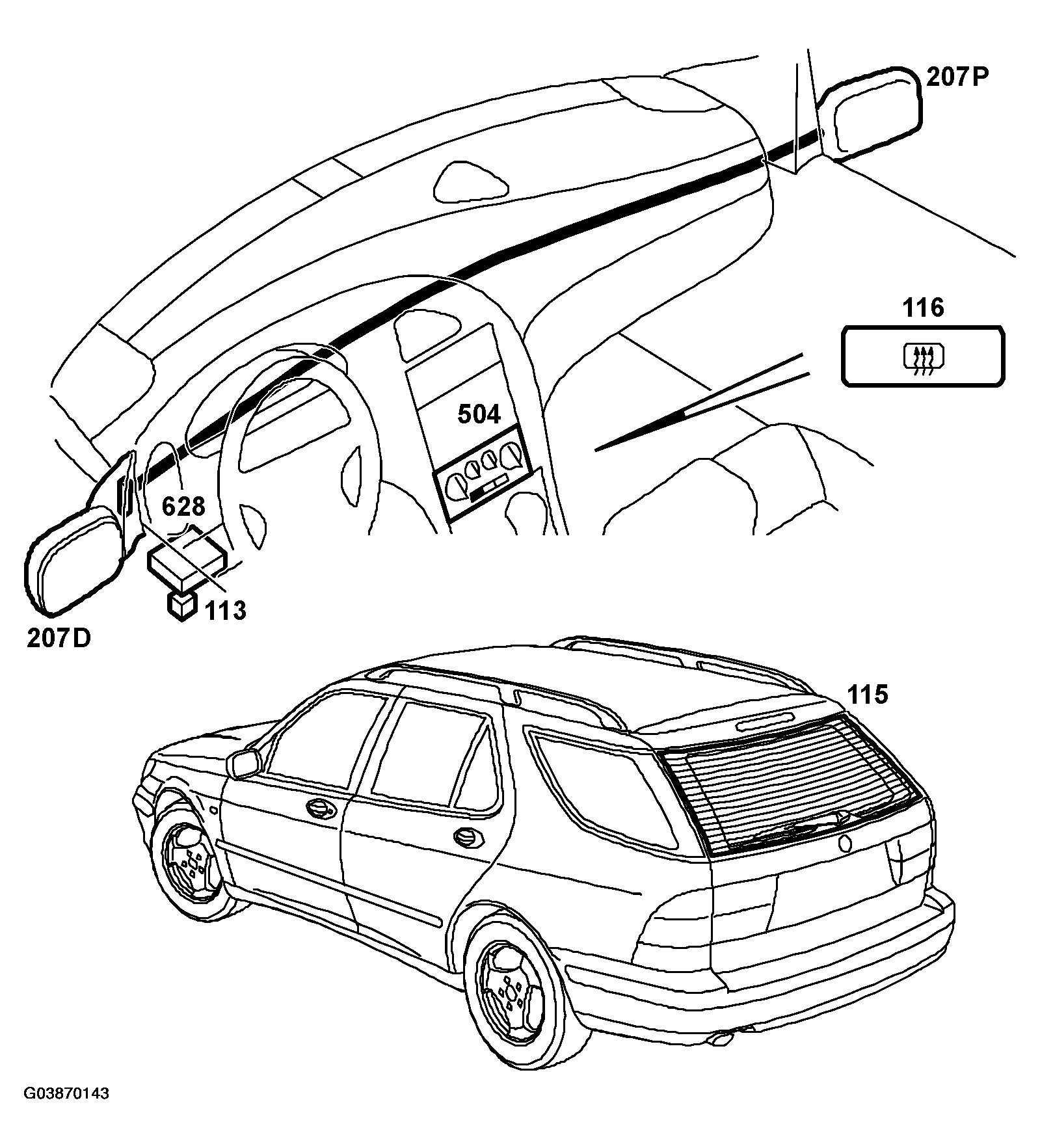

Fig 1: System Overview of Electrically Heated Rear Window And Door Mirrors (Cars With MCC) (5D)

G03870143

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Control module, DICE (628)
Electrically heated rear window, switch (116)
Relay, electrically heated rear window (113)
Electrically heated rear window, element (115)
Electrically heated door mirrors, elements (207)
MCC control panel (504)
