System overview, electrically heated rear window and door mirrors (Cars with ACC) (5D)

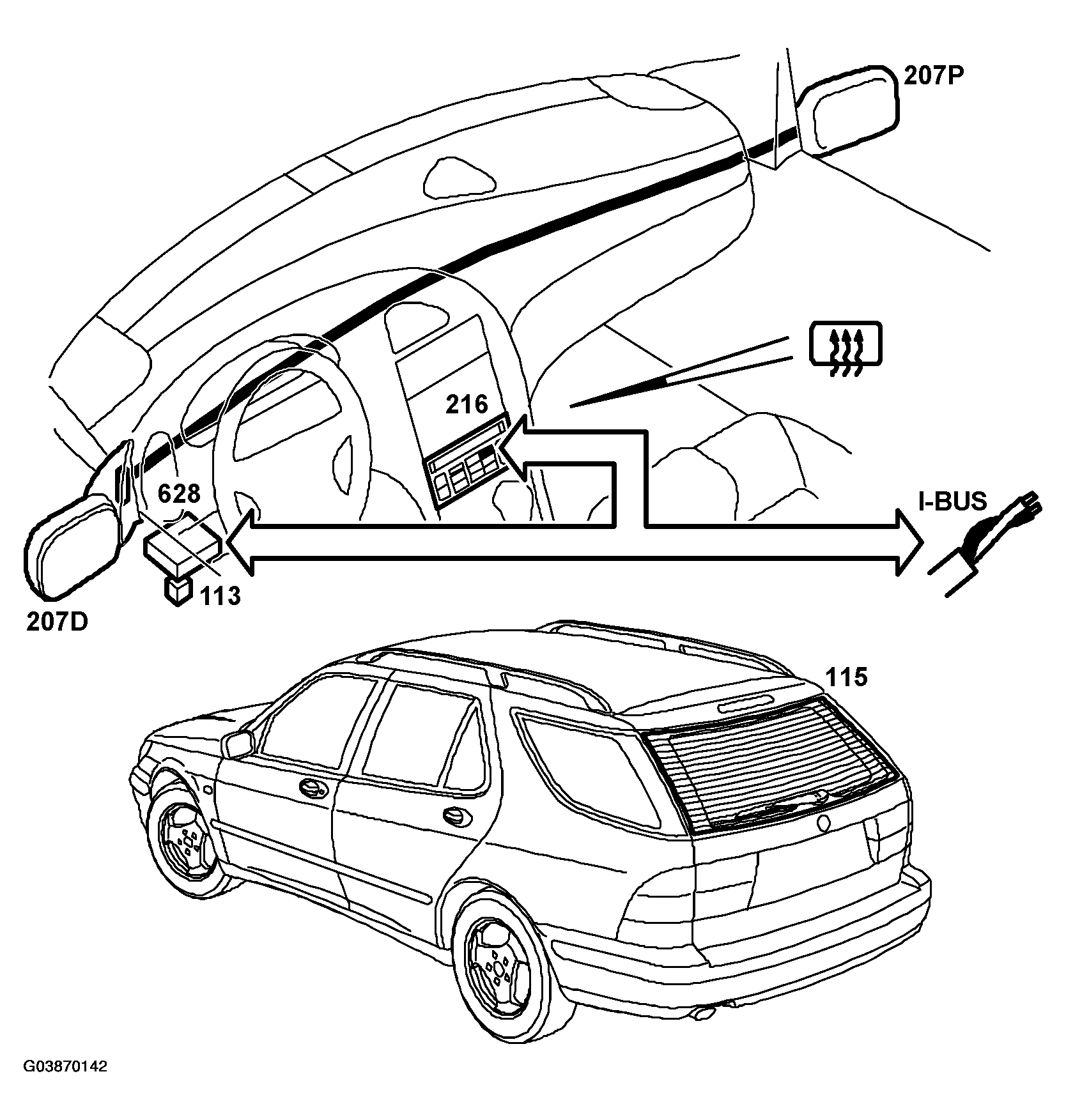

Fig 1: System Overview Of Electrically Heated Rear Window And Door Mirrors (Cars With ACC) (5D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Control module, DICE (628)
• Relay, electrically heated rear window (113)
• Electrically heated rear window, element (115)
• Electrically heated door mirrors, elements (207)
• Control module, ACC (216)
