Main components, electrically heated rear window and door mirrors (5D)

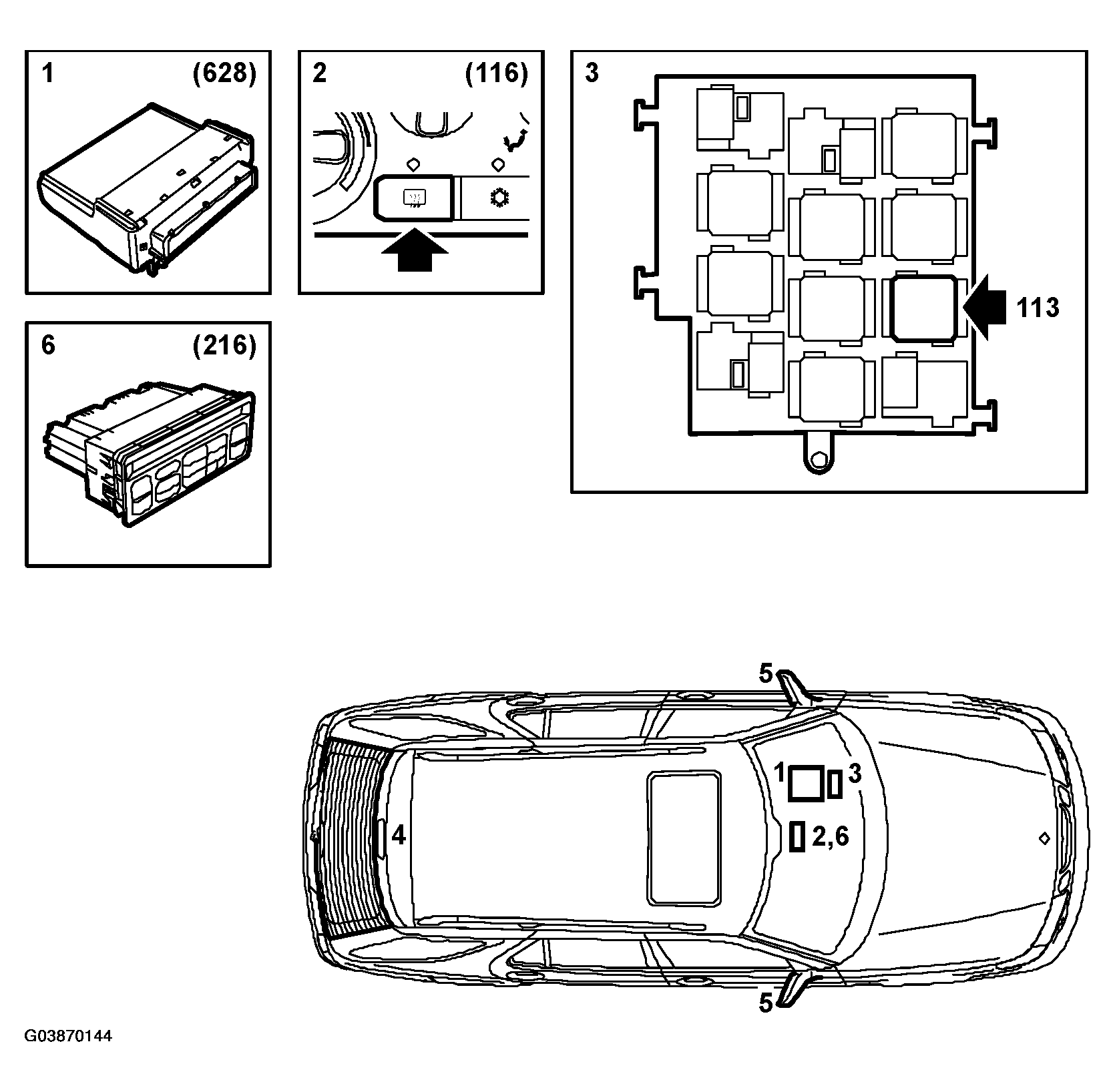

Fig 1: Main Components of Electrically Heated Rear Window And Door Mirrors (5D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Control module, DICE (628)
2. Electrically heated rear window, switch (116)
3. Relay, electrically heated rear window (113)
4. Electrically heated rear window, element (115)
5. Electrically heated door mirrors, elements (207)
6. Control module, ACC (216)
