Crimp connection J60, instrument harness

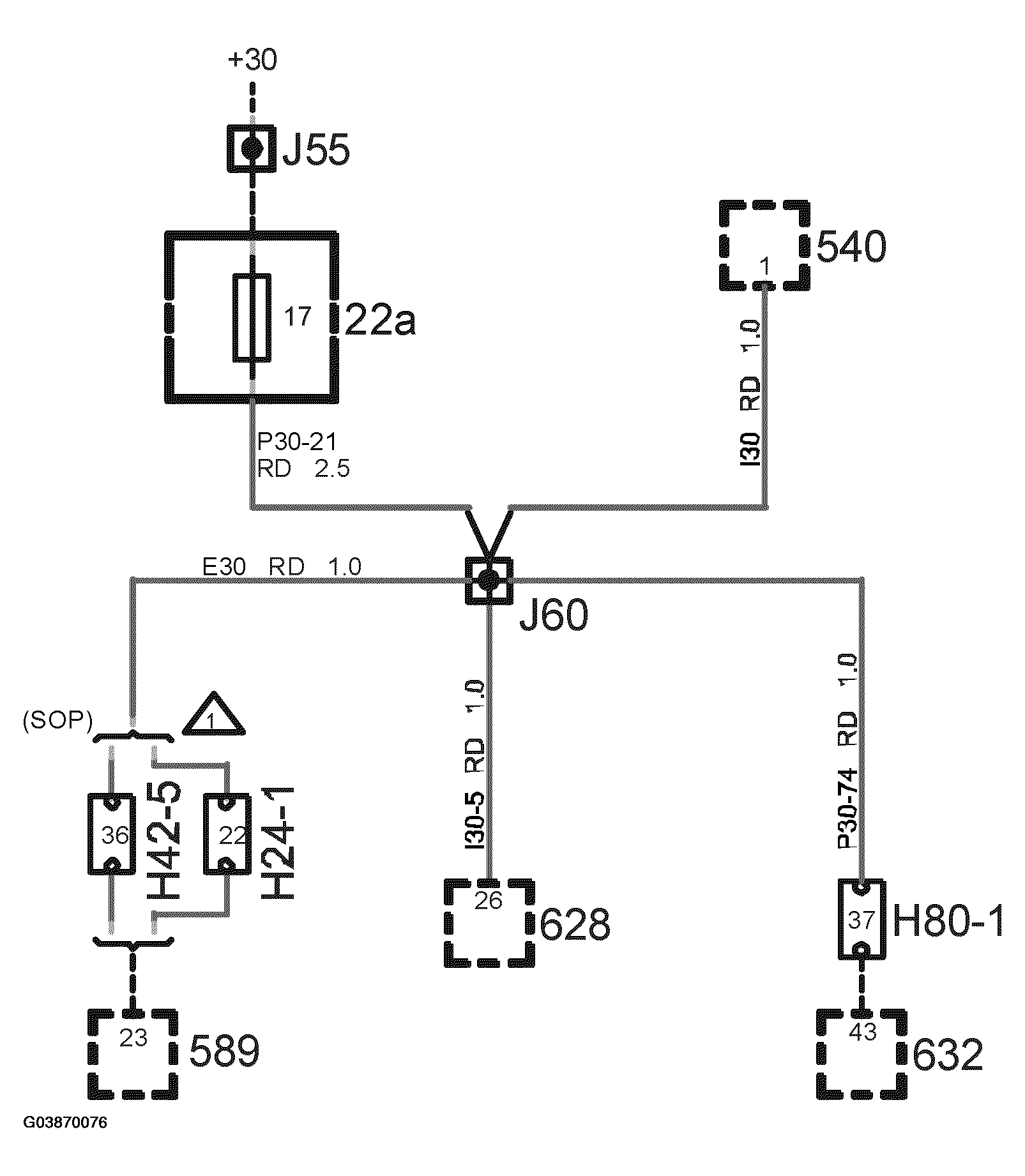

Fig 1: Instrument Harness- Circuit Diagram (J60)

G03870076

Courtesy of SAAB-SCANIA OF AMERICA, INC.
