3 No communication with the SRS (Airbag) or ABS

The fault is probably because the Airbag or ABS control module is not supplied with current or the diagnostics cable is not connected to the control module. If the Tech 2 cannot contact the Airbag or ABS, the following menu will appear:

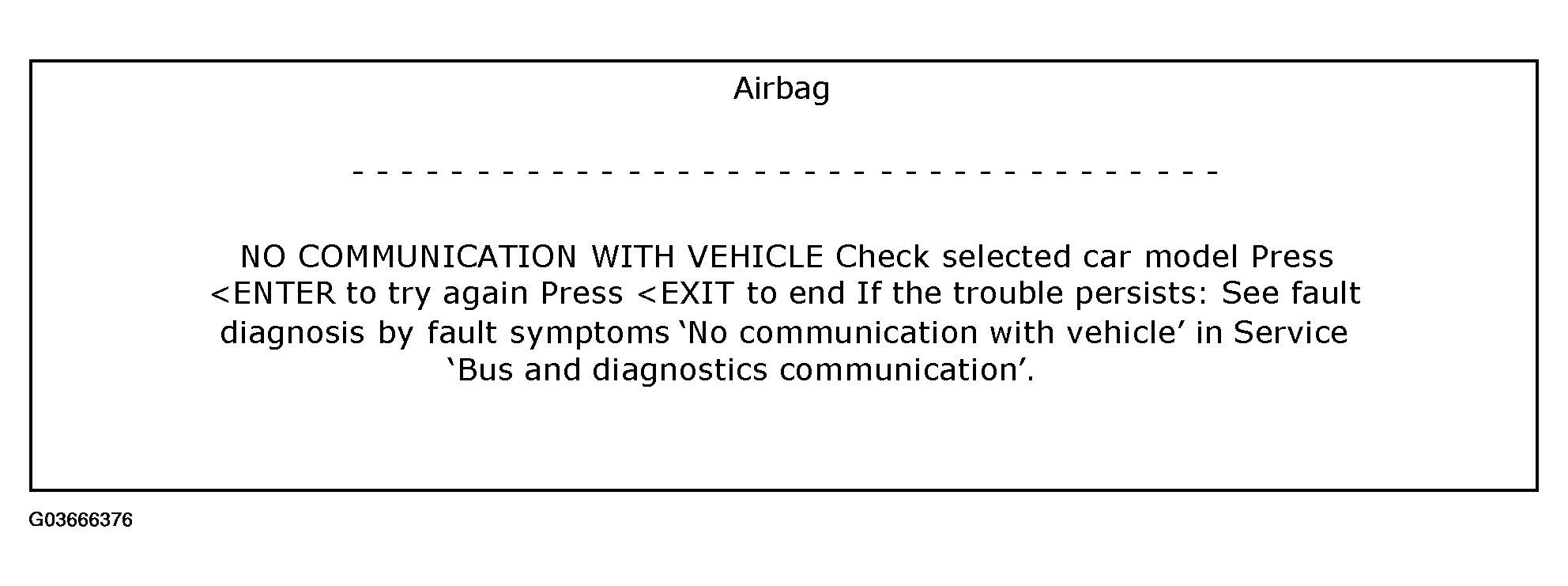

Fig 1: Tech 2 Display - No communication with the SRS (Airbag) or ABS
G03666376Courtesy of SAAB-SCANIA OF AMERICA, INC.
