Checking the wiring harness

Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.

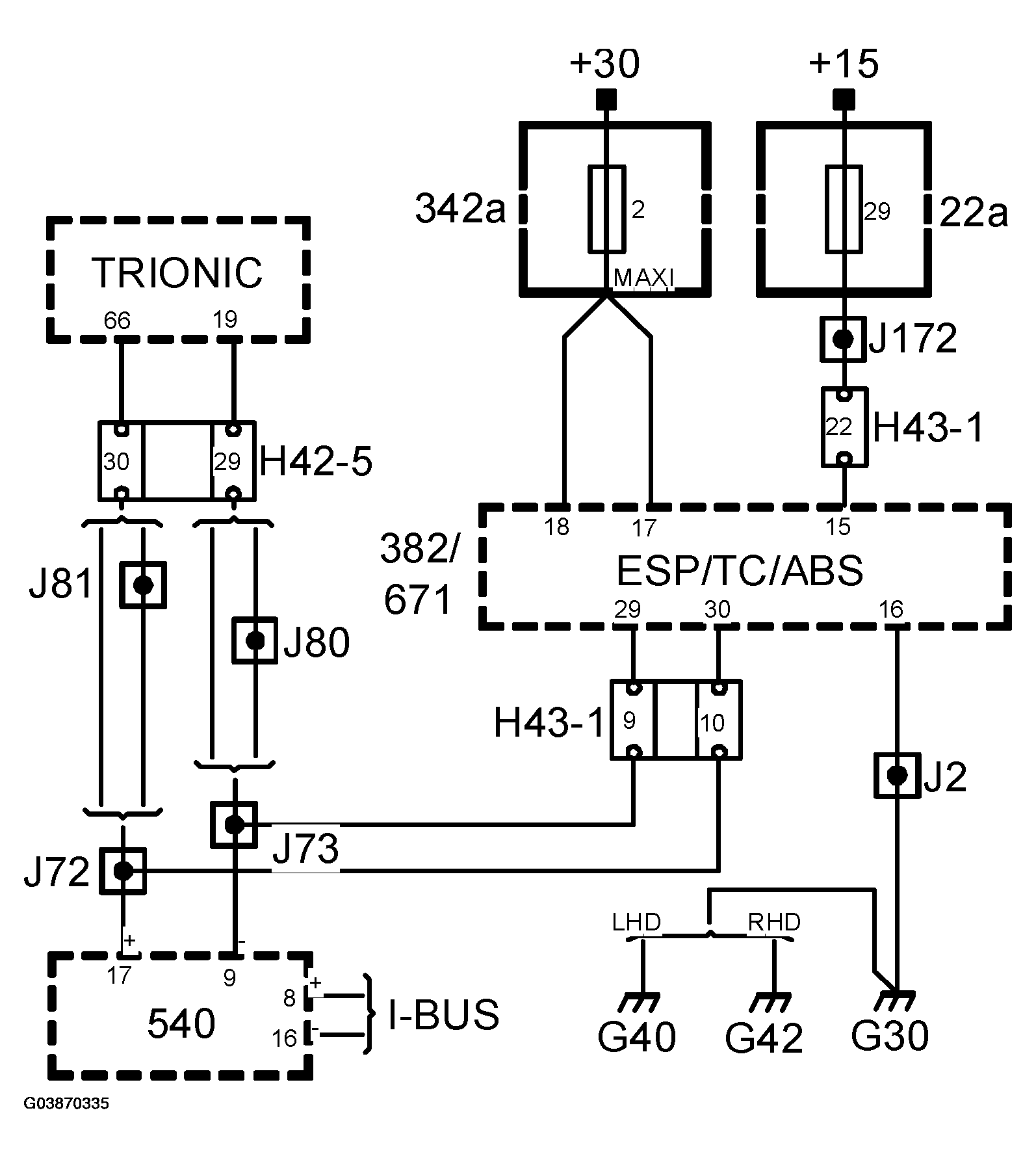

Fig 1: P1625 No Bus Data From Trionic Or TCM Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
