Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Collision/Avoidance >> Parking Aid, Spa >> Component Location >> Ultrasound distance sensor, center (631RRC)

Ultrasound distance sensor, center (631RRC)

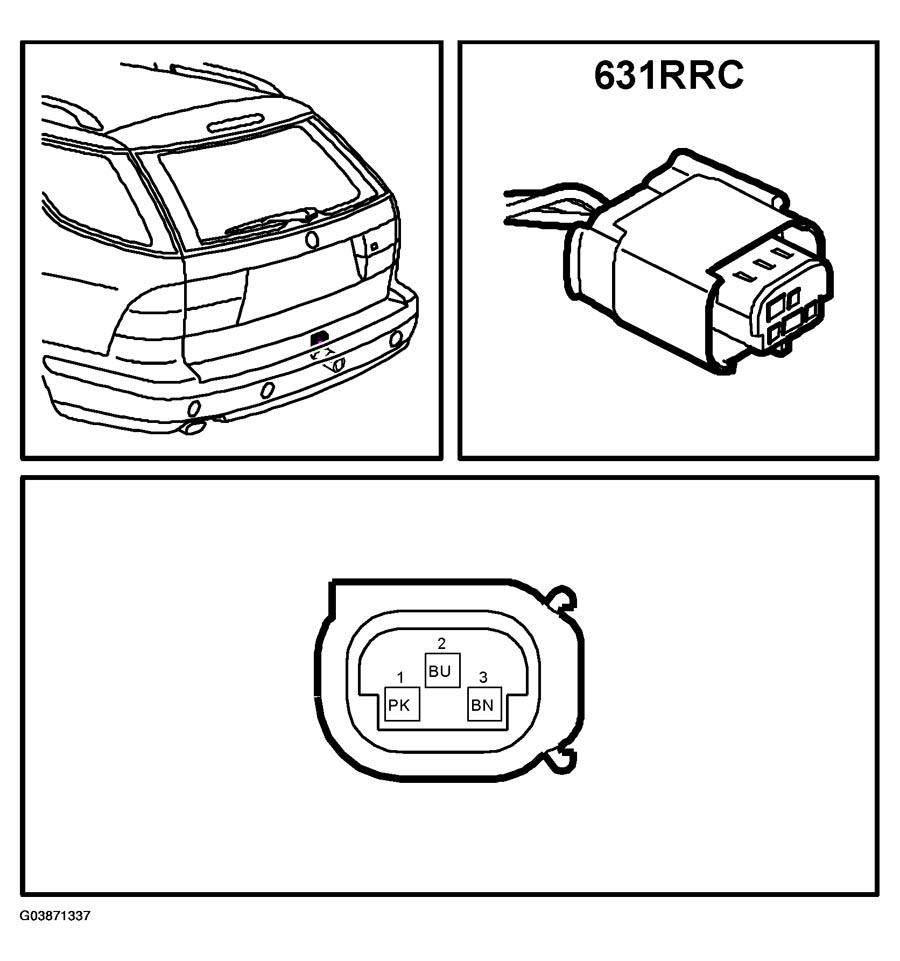

Fig 1: Identifying Ultrasound Distance Sensor Connector Pin Outs (Center)

G03871337

Courtesy of SAAB-SCANIA OF AMERICA, INC.
