System overview, electric heated rear seat

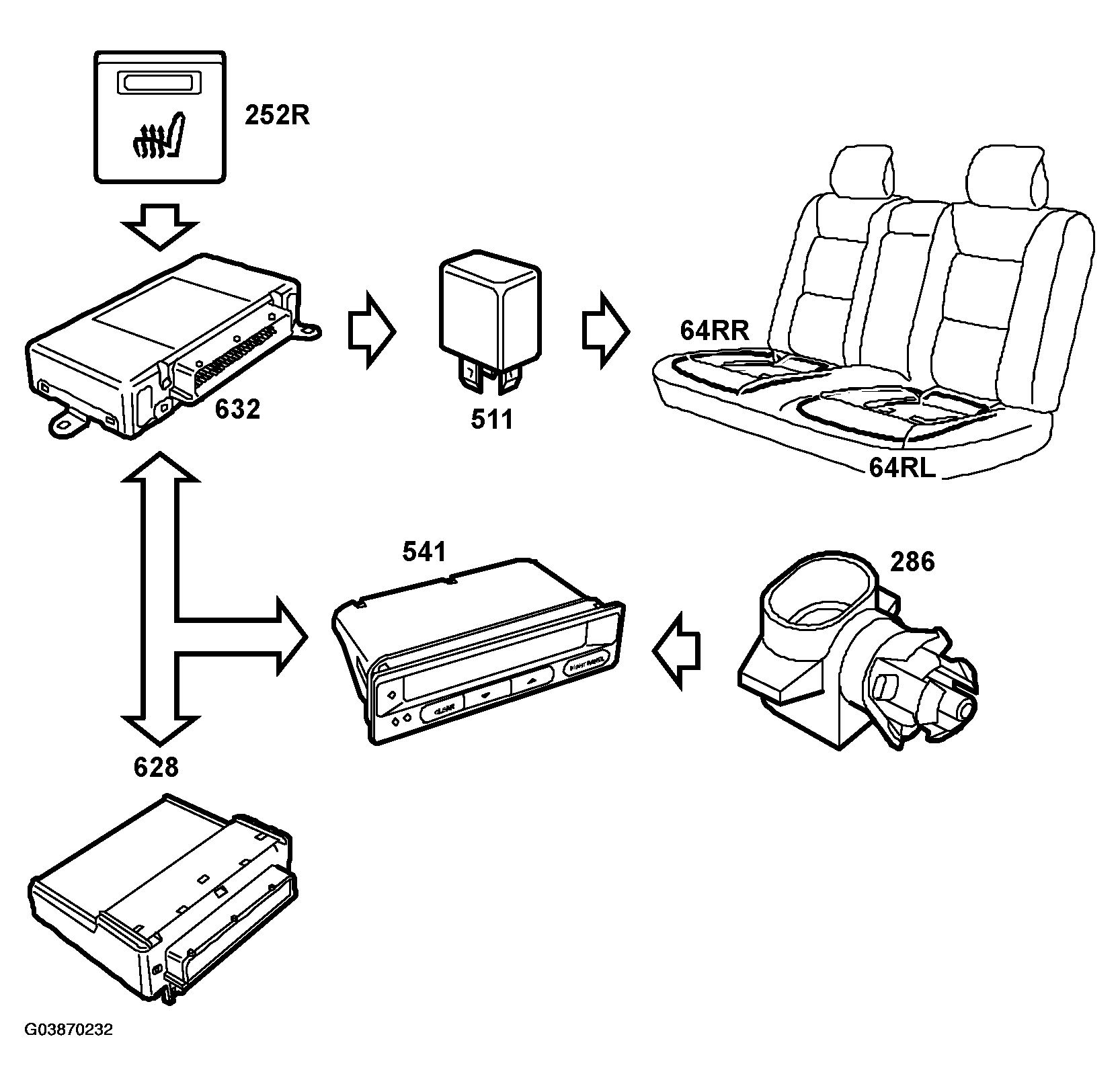

Fig 1: Identifying System Overview, Electric Heated Rear Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Control module, TWICE (632)
• Switch, electrically heated rear seat (252R)
• Relay, electrically heated rear seat (511)
• Heating pad, rear seat (64RL, 64RR)
• Control module, DICE (628)
• SID (541)
• Temperature sensor, outdoor air (286)
