Main components, electric heated rear seat

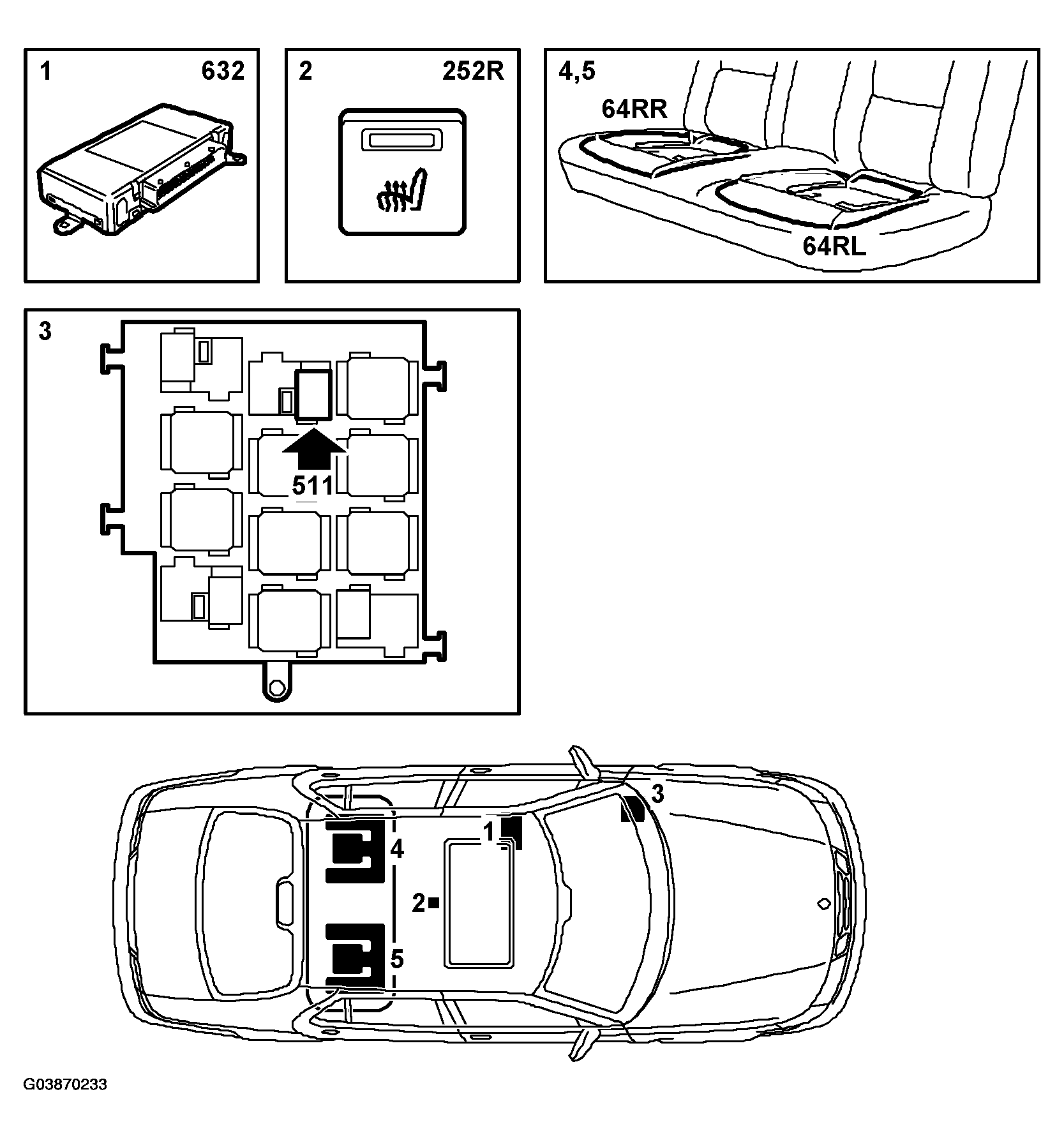

Fig 1: Identifying Main Components, Electric Heated Rear Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Control module, TWICE (632)
2. Switch, electrically heated rear seat (252R)
3. Relay, electrically heated rear seat (511)
4. Heating pad, rear seat left (64RL)
5. Heating pad, rear seat right (64RR)
