Unlocking the luggage compartment with the remote control

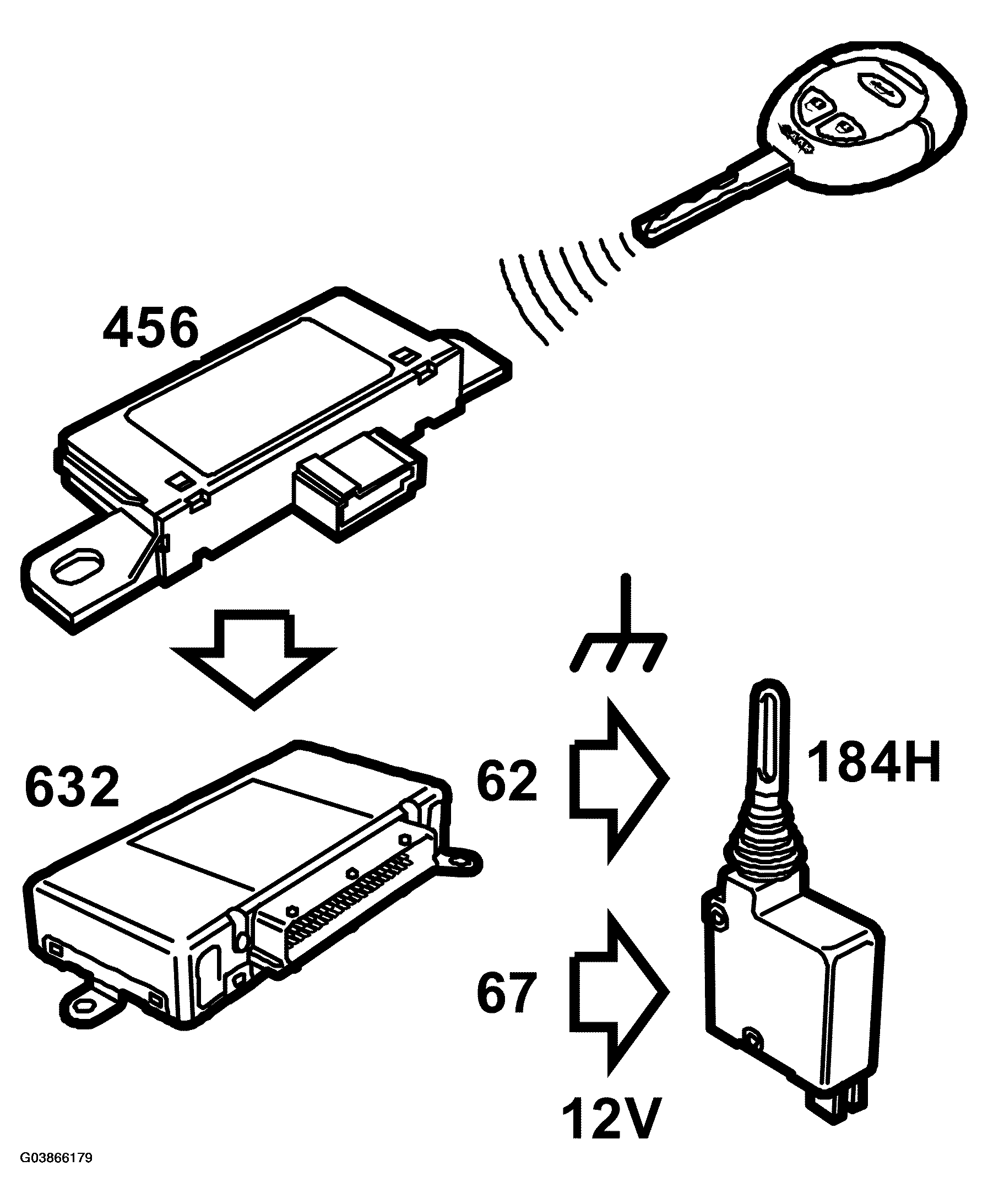

Fig 1: Identifying Communication System - Unlocking Luggage Compartment With Remote Control

Courtesy of SAAB-SCANIA OF AMERICA, INC.

To unlock the luggage compartment - press button C once and only the luggage compartment will be unlocked.

A short voltage pulse (0.8 sec.) is output from pin 67 on the TWICE control module to the boot lid.

The lock motor is grounded to pin 62 on the TWICE control module.

When the motor has unlocked the boot lid, it returns to its rest, locked, position.

When the key is in the ignition the boot lid cannot be operated with the remote control.

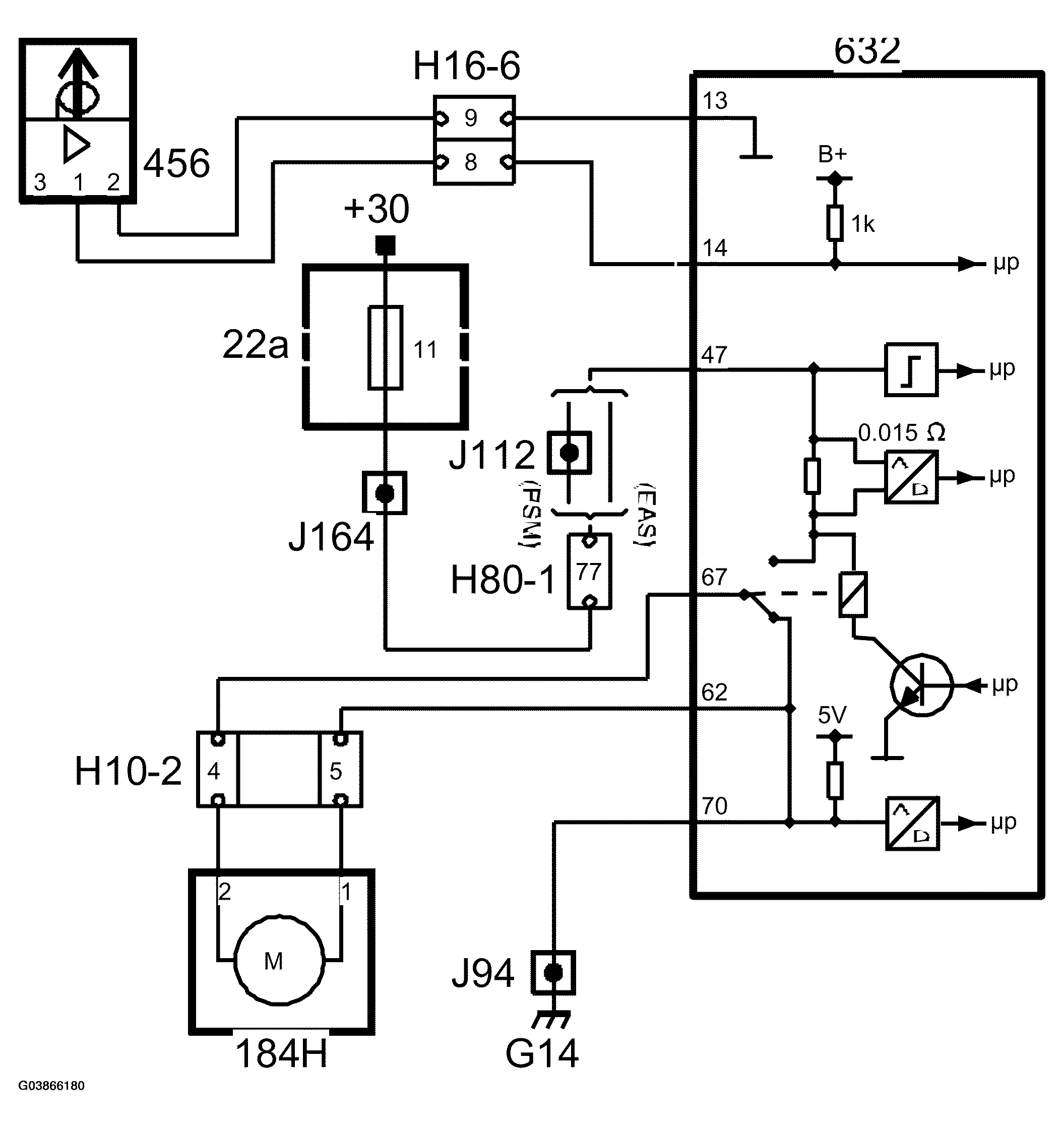

Fig 2: Circuit Diagram - Unlocking Luggage Compartment With Remote Control
