Separate unlocking of driver's door with key (US/CA)

The function can also be programmed for other markets.

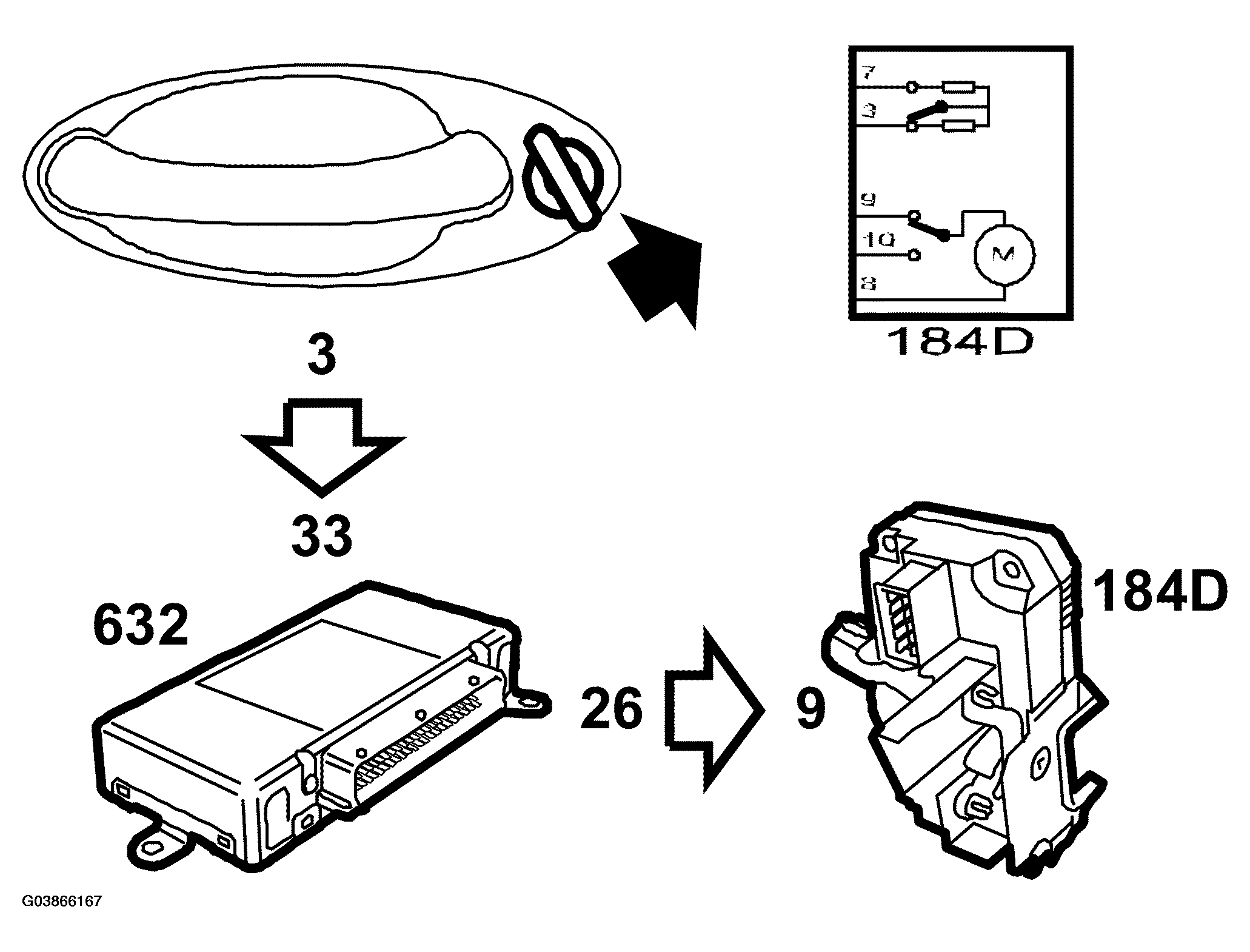

To unlock the driver's door separately, the key is first turned once anti-clockwise (LHD) - or clockwise (RHD). The boot lid can now be opened via the button on the driver's door.

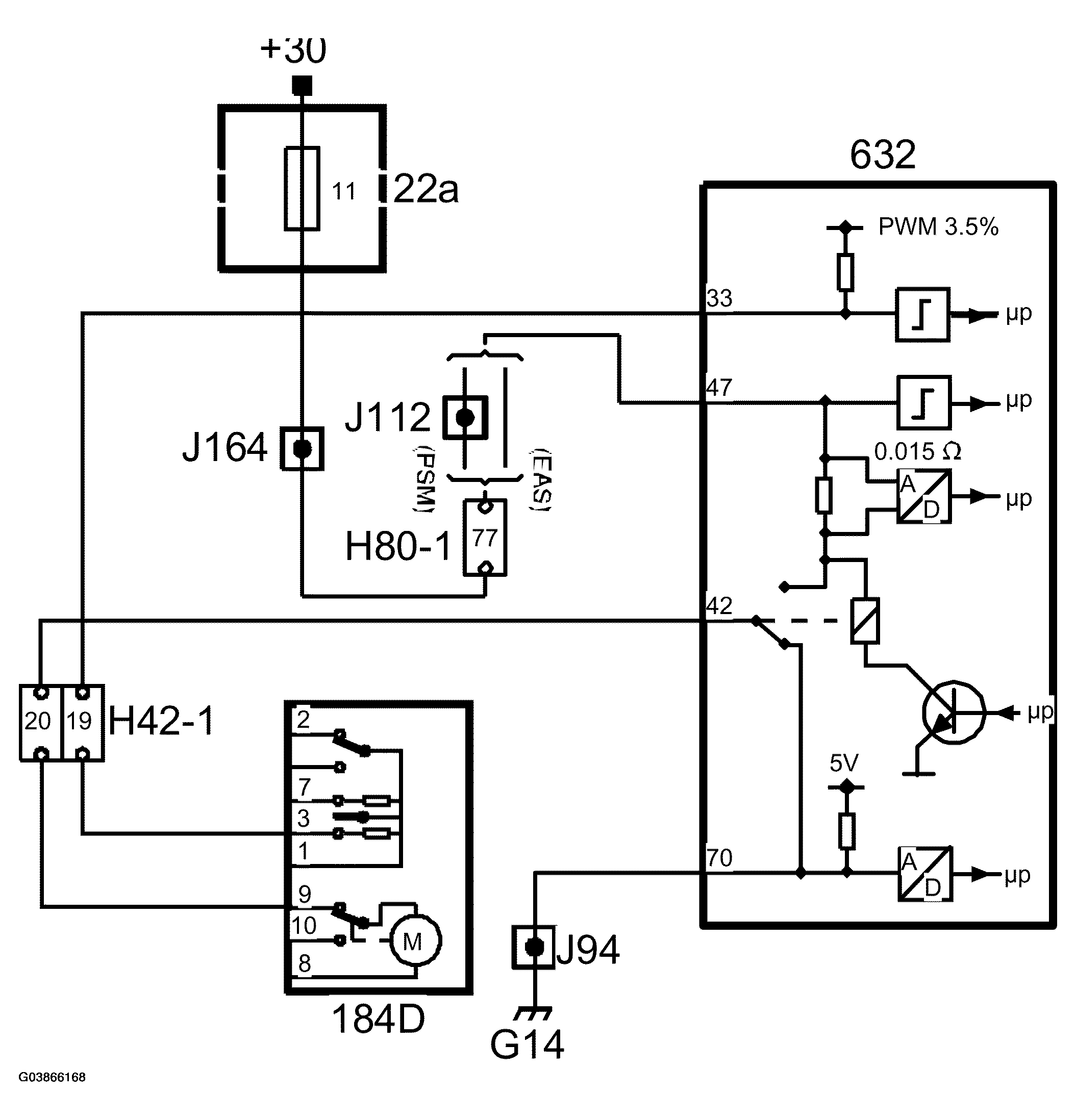

When the key is turned in the lock a microswitch in the lock closes, grounding pin 3 (LHD), pin 8 (RHD), on the lock unit, whereby pin 33 on the TWICE control module is grounded.

A short voltage pulse (0.8 sec.) is output from pin 26 on the TWICE control module to the driver's door which is then unlocked.

The lock motor is grounded to pins 42 and 22 on the TWICE control module.

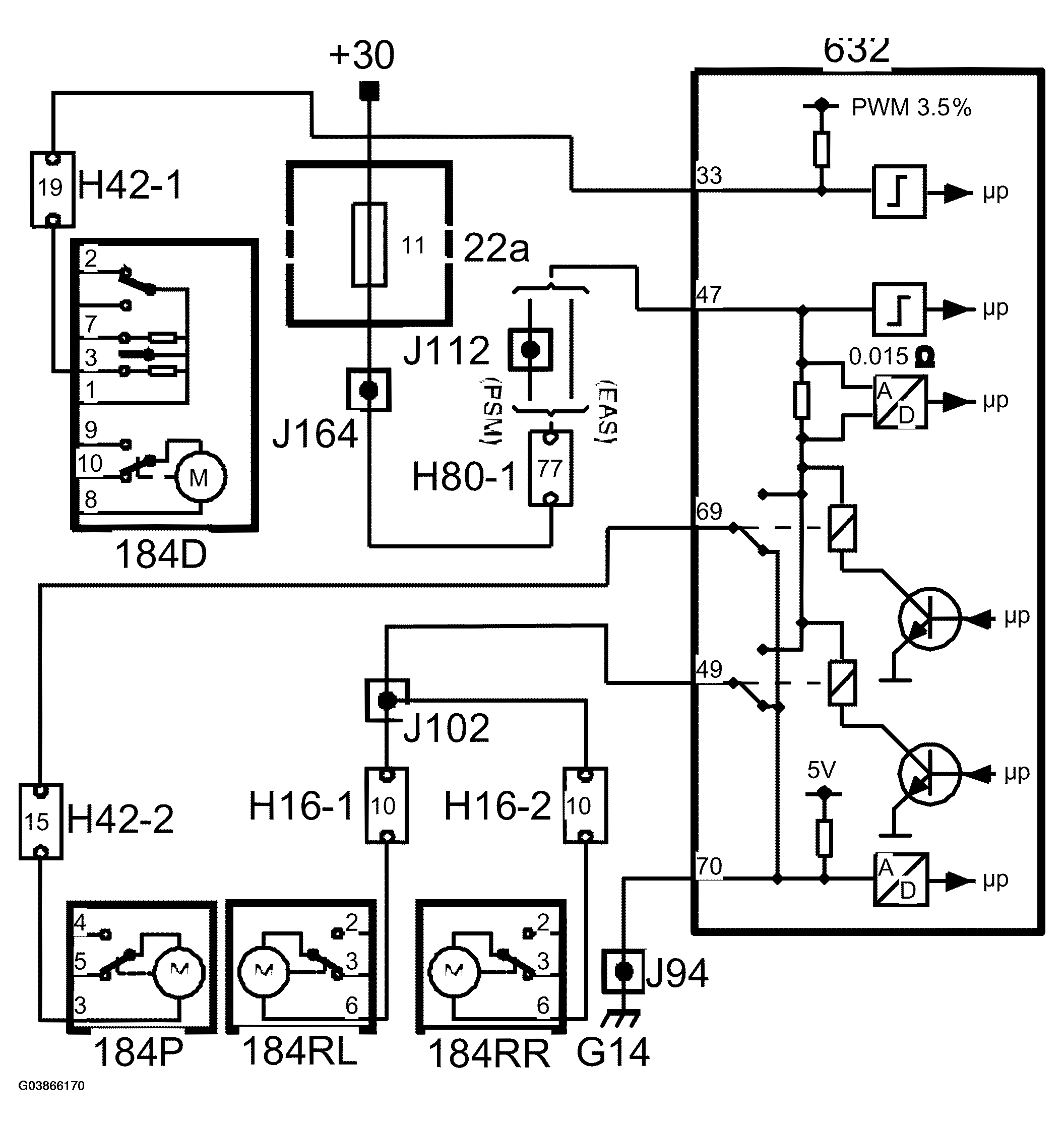

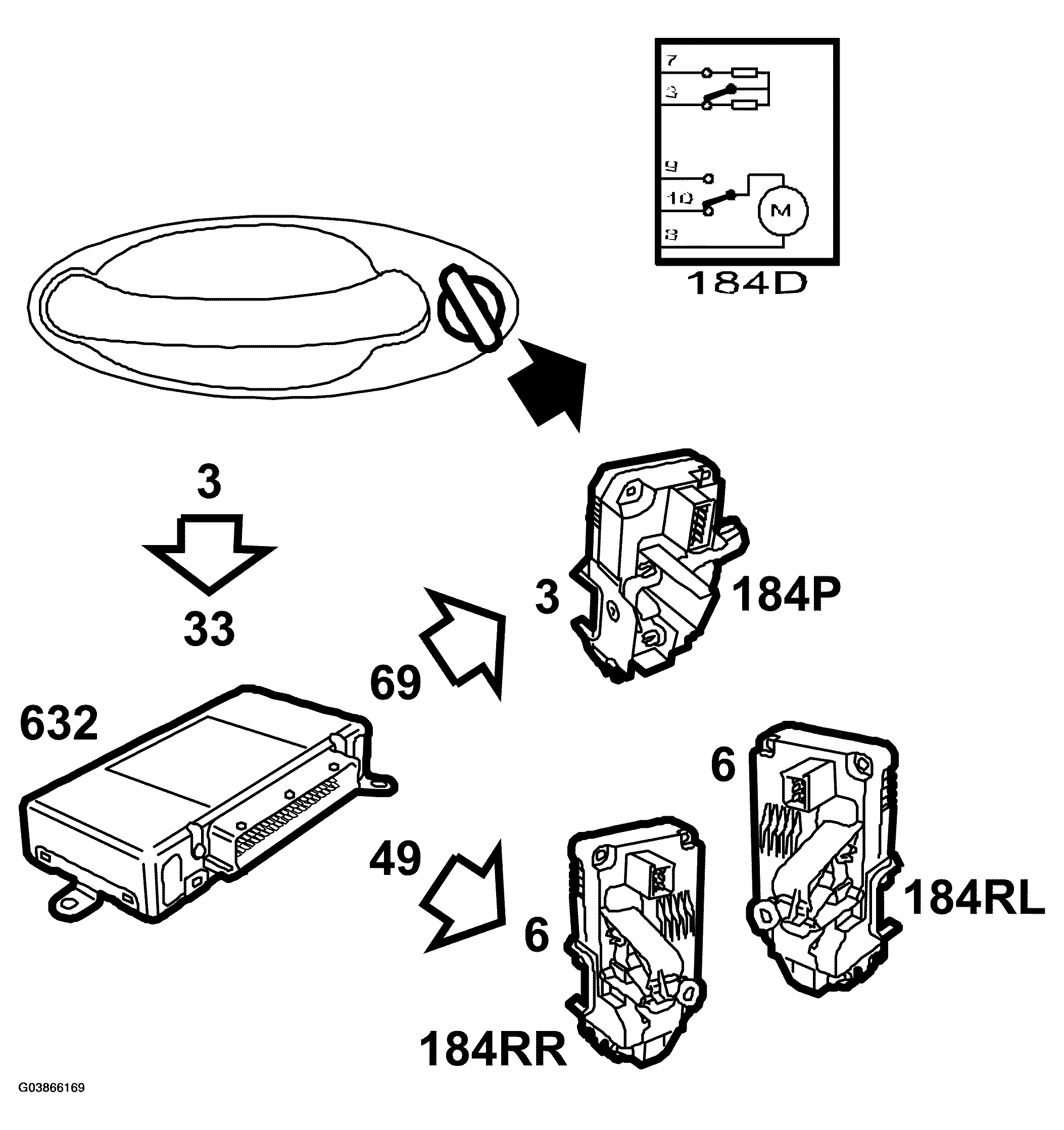

When the key is turned a second time, the microswitch will again close, grounding pin 3 (LHD), pin 8 (RHD), on the lock unit, whereby pin 33 on the TWICE control module is grounded.

A short voltage pulse (0.8 sec.) is emitted from the TWICE control module

• pin 69 to the passenger door
• pin 49 to the rear doors

The lock motors are grounded to the TWICE control module by

• pins 66 and 22, passenger door
• pins 20 and 22, rear doors
