Electric motor, central locking system, passenger door

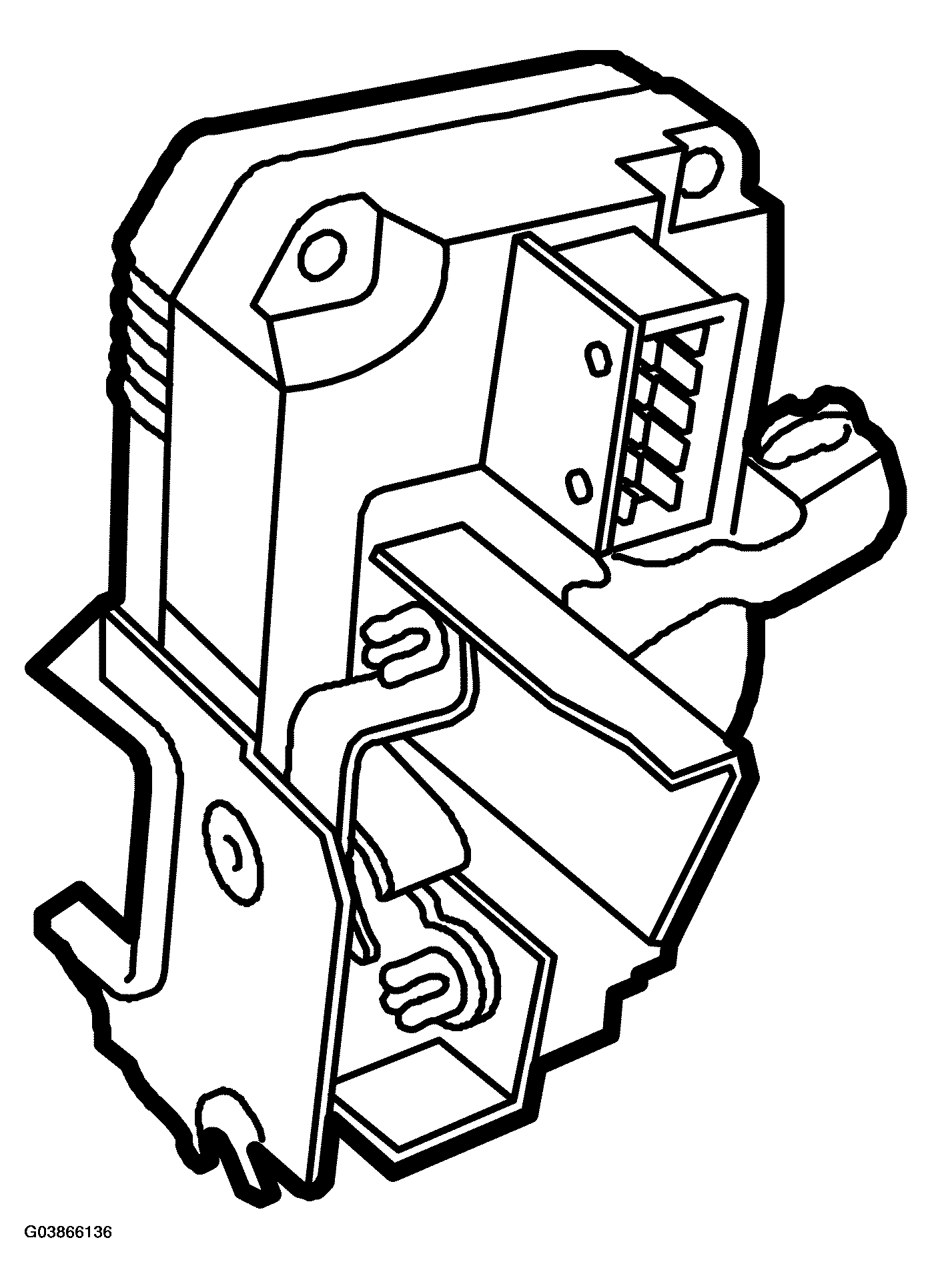

Fig 1: Identifying Central Locking System Electric Motor (Passenger Door)
G03866136Courtesy of SAAB-SCANIA OF AMERICA, INC.
PASSENGER DOOR CENTRAL LOCKING SYSTEM ELECTRIC MOTOR TECHNICAL DATA

Rated voltage 12 V
Current consumption at rated voltage 2.0 A
Max. current consumption at rated voltage 5.0 A
