Switch, luggage compartment illumination (56)

4D

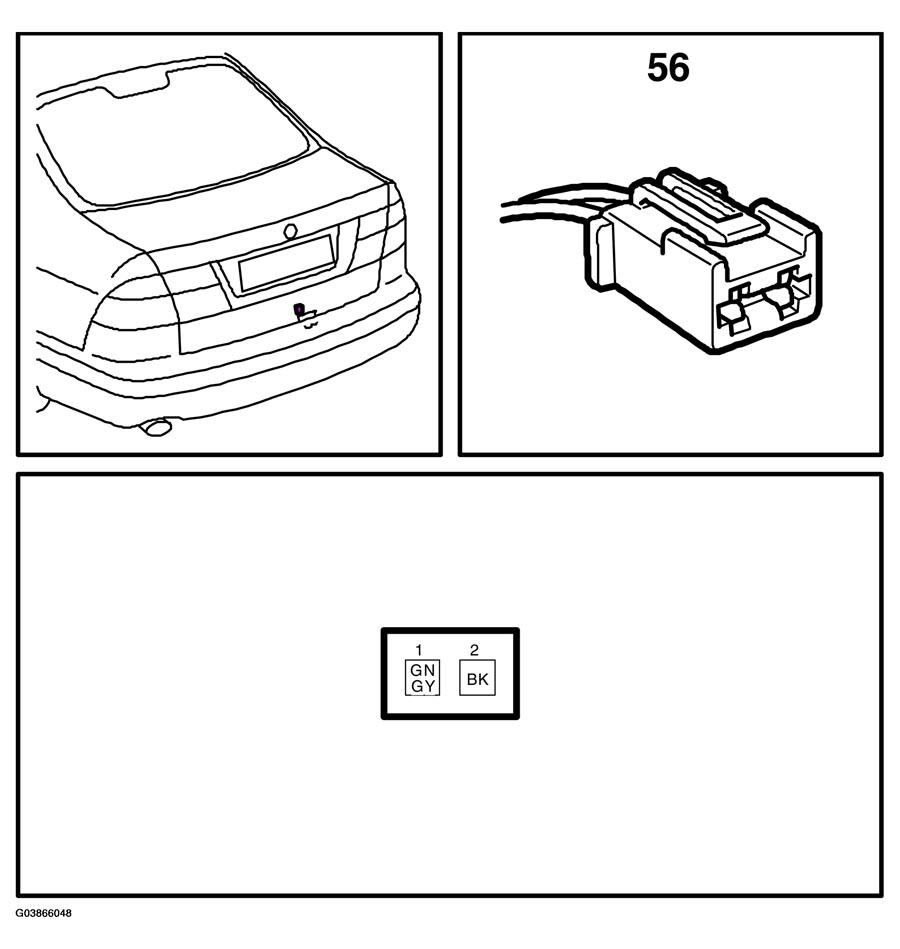

Fig 1: Identifying Luggage Compartment Illumination Switch Connector Pinouts (4D)
G03866048Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

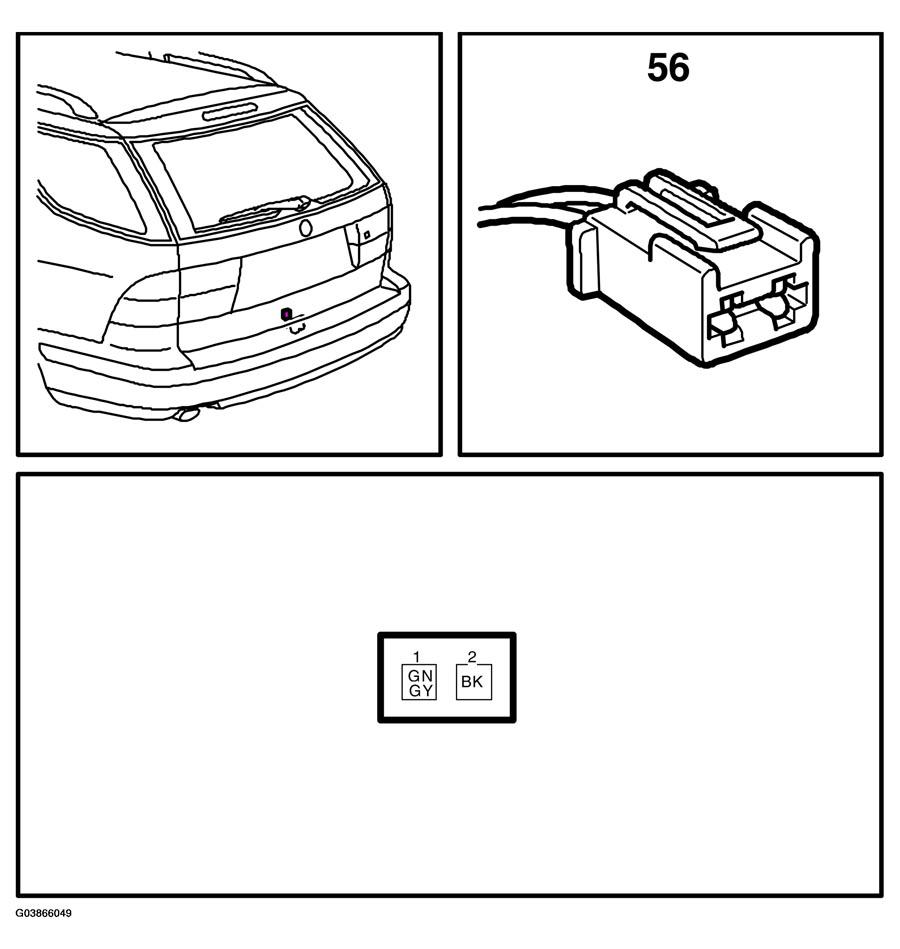

Fig 2: Identifying Luggage Compartment Illumination Switch Connector Pinouts (5D)
G03866049Courtesy of SAAB-SCANIA OF AMERICA, INC.
