Connected components 4D

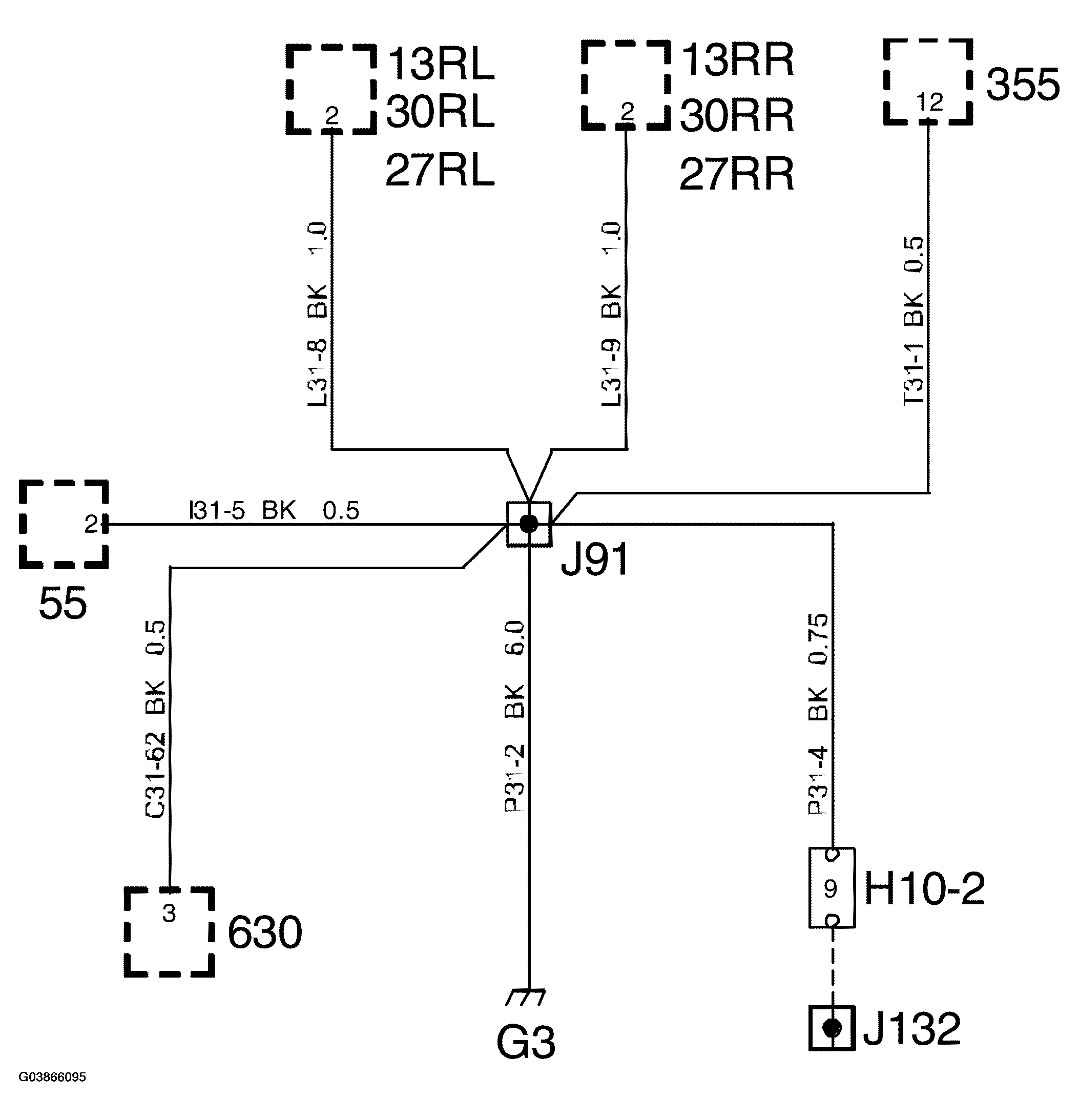

GROUNDING POINT G3 CONNECTED COMPONENTS 4D
| Via Crimp J91, rear wiring harness | |
| 13RL | Lamp, parking light, rear, LH |
| 13RR | Lamp, parking light, rear, RH |
| 27RL | Lamp, direction indicator, rear, LH |
| 27RR | Lamp, direction indicator, rear, RH |
| 30RL | Lamp, brake light, LH |
| 30RR | Lamp, brake light, RH |
| 55 | Lamp, luggage compartment lighting |
| 355 | CD changer |
| 630 | Control module, SPA |
| Via Crimp J132, boot lid, which is connected to crimp J91. | |
| 15 | Lamp, number plate lighting |
| 32HL Lamp, reversing light, LH | Page 1 of 3 |
| 32HR | Lamp, reversing light, RH |
| 33HL | Lamp, rear fog light, LH |
| 33HR | Lamp, rear fog light, RH |
| 56 | Switch, boot lighting, |
