Central locking system motor, driver (184D)

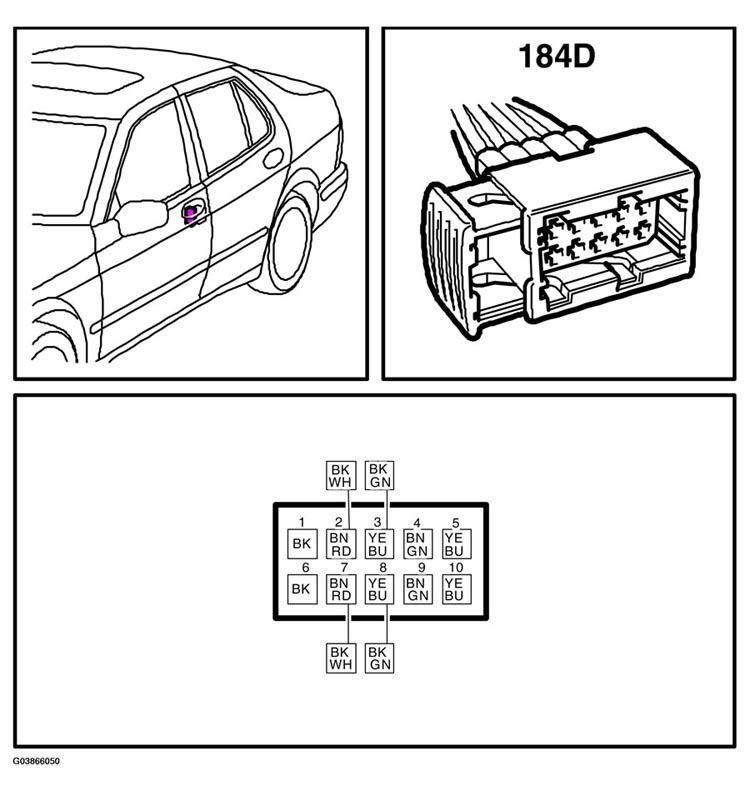

Fig 1: Identifying Central Locking System Motor (Driver) Connector Pinouts

G03866050

Courtesy of SAAB-SCANIA OF AMERICA, INC.
