To fit

  1. Plug in the connector and position the lock. Screw it on with the four bolts.

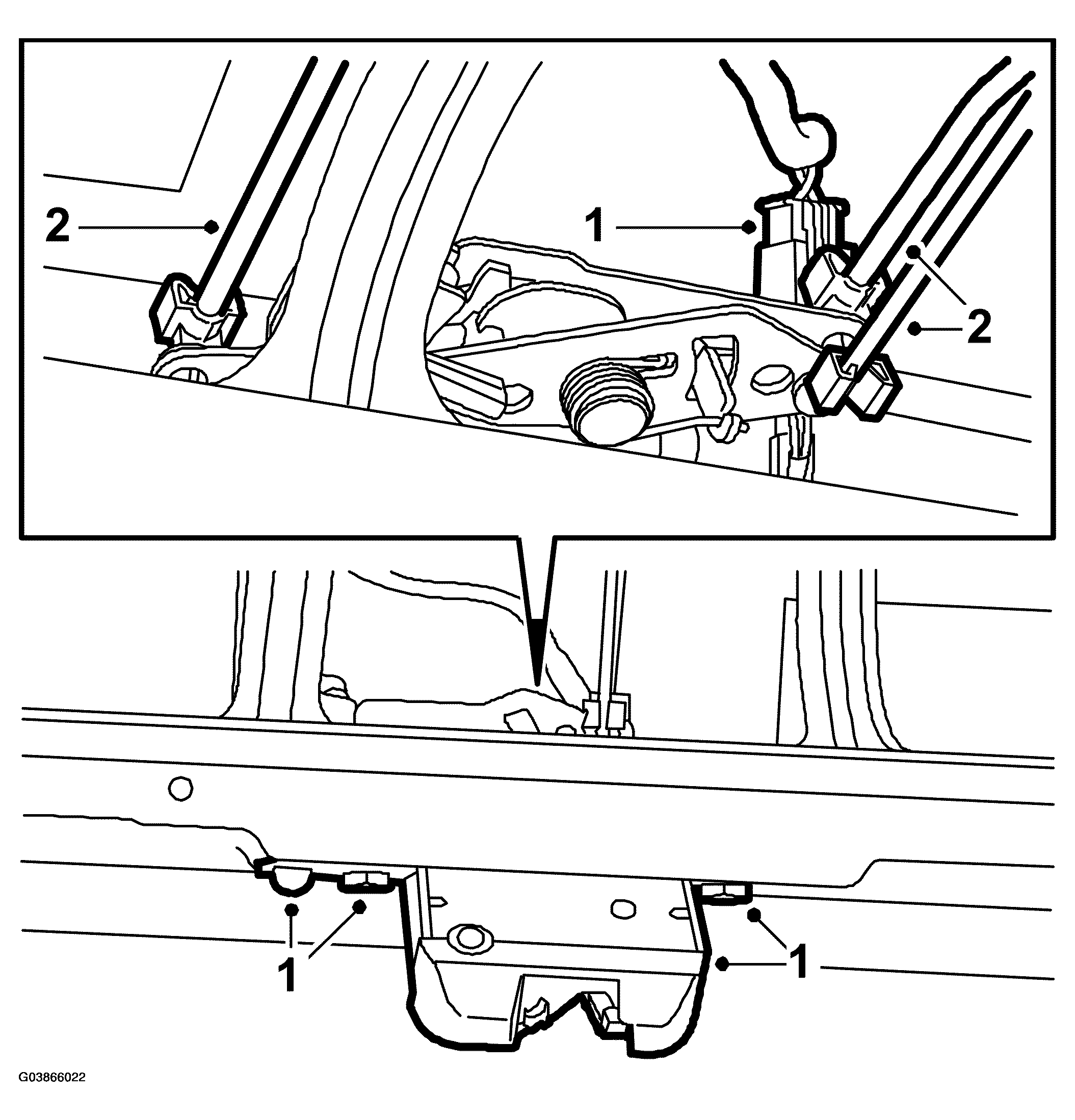

    Fig 1: Illustration For Step 1-2
    G03866022Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the lock rods to the lock.
  3. Fit the inner trim by inserting the guide pin at the door pull and fastening with the clips at the edge of the window. Screw in the two door pull screws. Fasten the remaining clips around the trim.

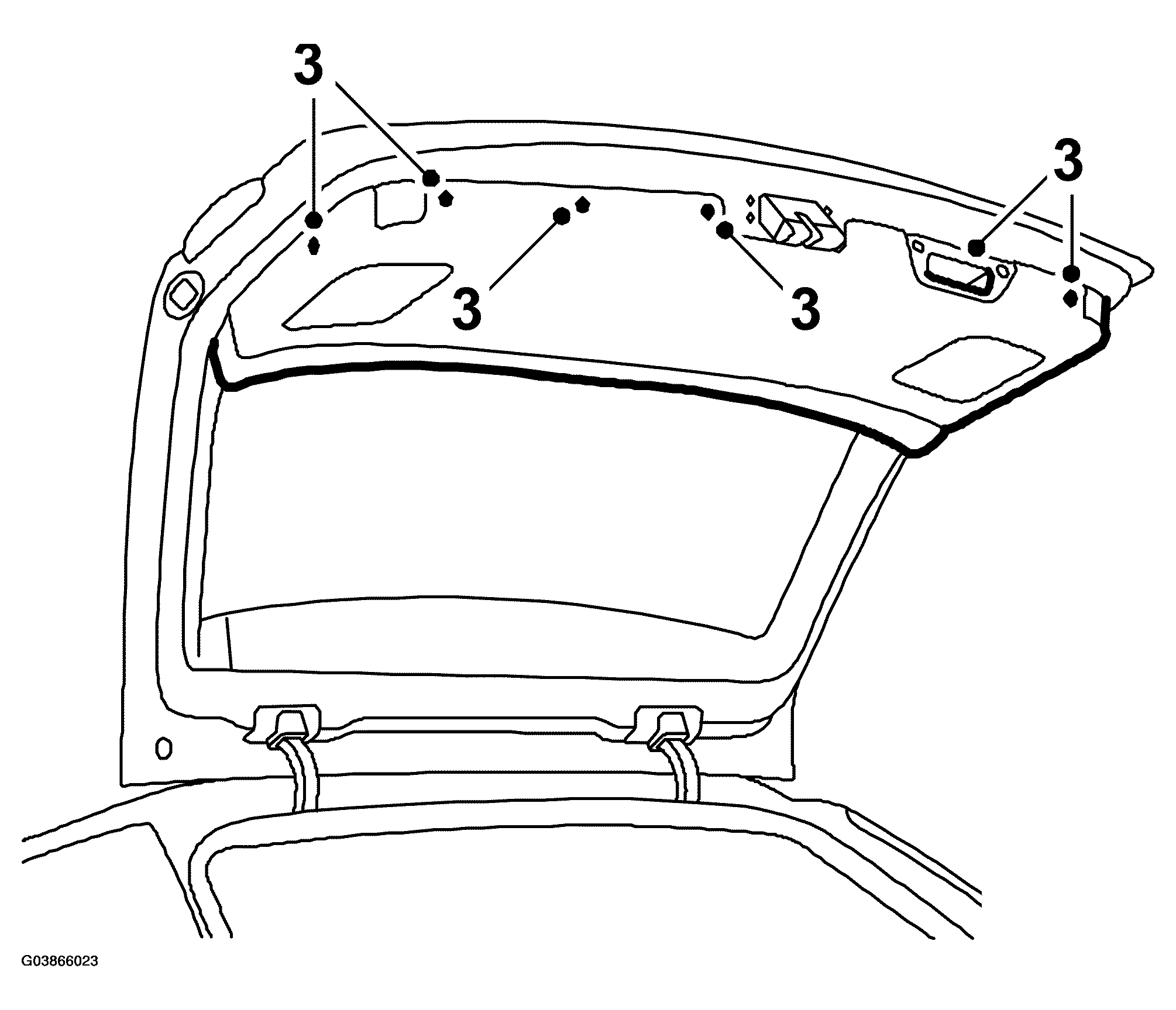

    Fig 2: Illustration For Step 3
    G03866023Courtesy of SAAB-SCANIA OF AMERICA, INC.
