To fit

  1. Turn the motor so that it connects with the driver pin.

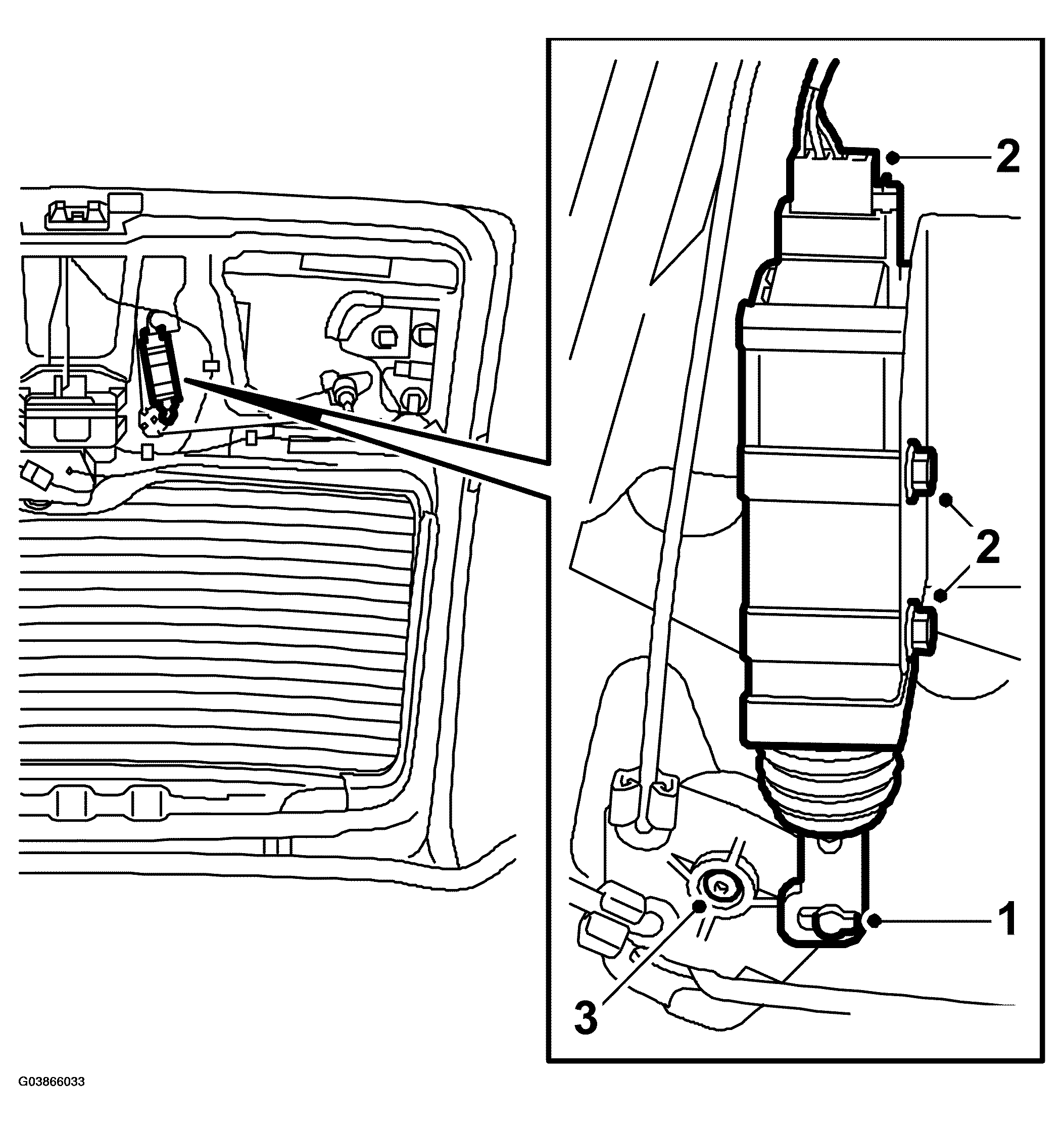

    Fig 1: Illustration For Step 1-3
    G03866033Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Screw on the motor and plug in the connector.
  3. Press on the driver and lock it with the center pin.
  4. Fit the inner trim by inserting the guide pin at the door pull and fastening with the clips at the edge of the window. Screw in the two door pull screws. Fasten the remaining clips around the trim.

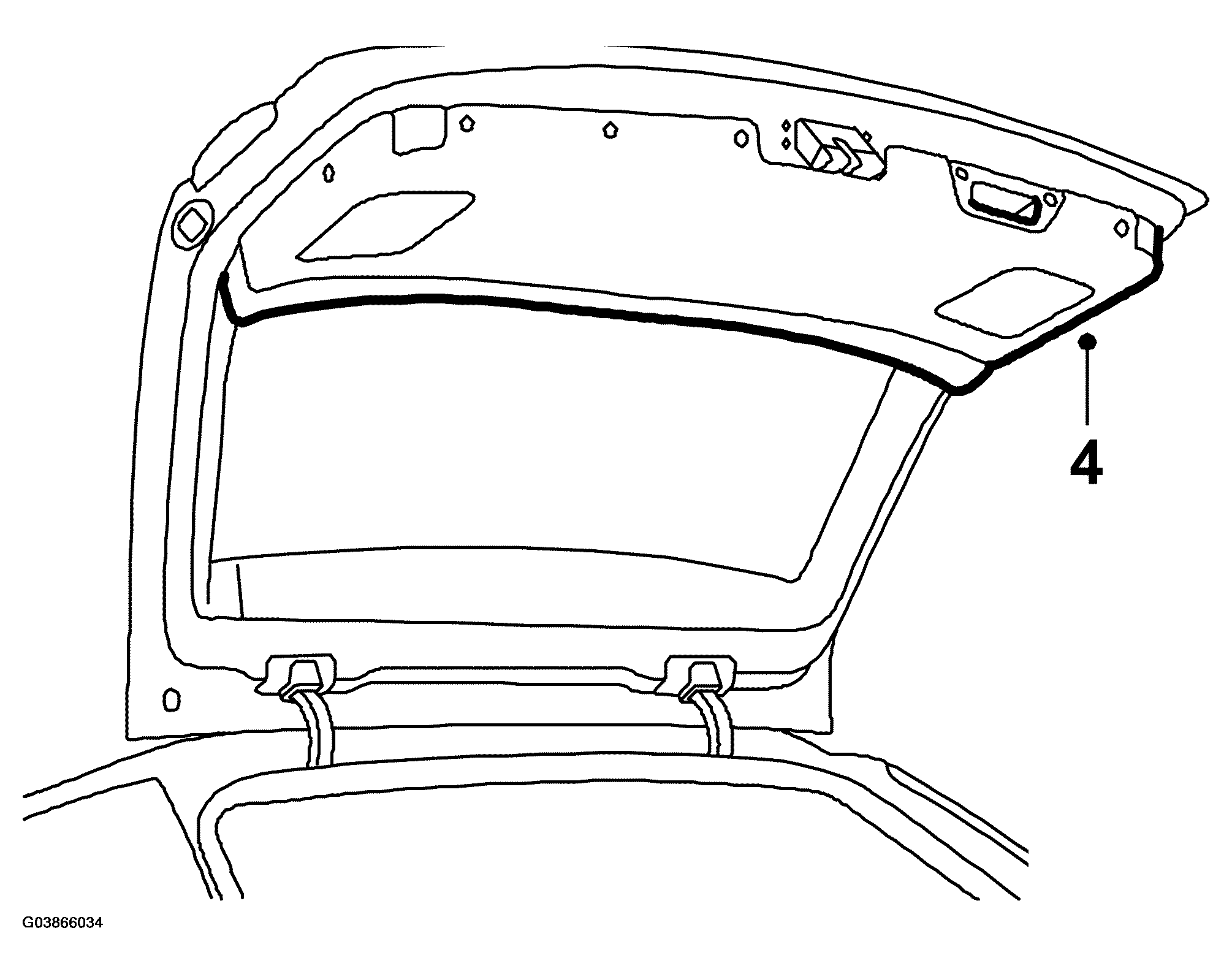

    Fig 2: Illustration For Step 4
    G03866034Courtesy of SAAB-SCANIA OF AMERICA, INC.
