To remove

  1. Open the tailgate.
  2. Remove the inner tailgate trim by removing the door pull retaining screws and the plastic clips in the trim.

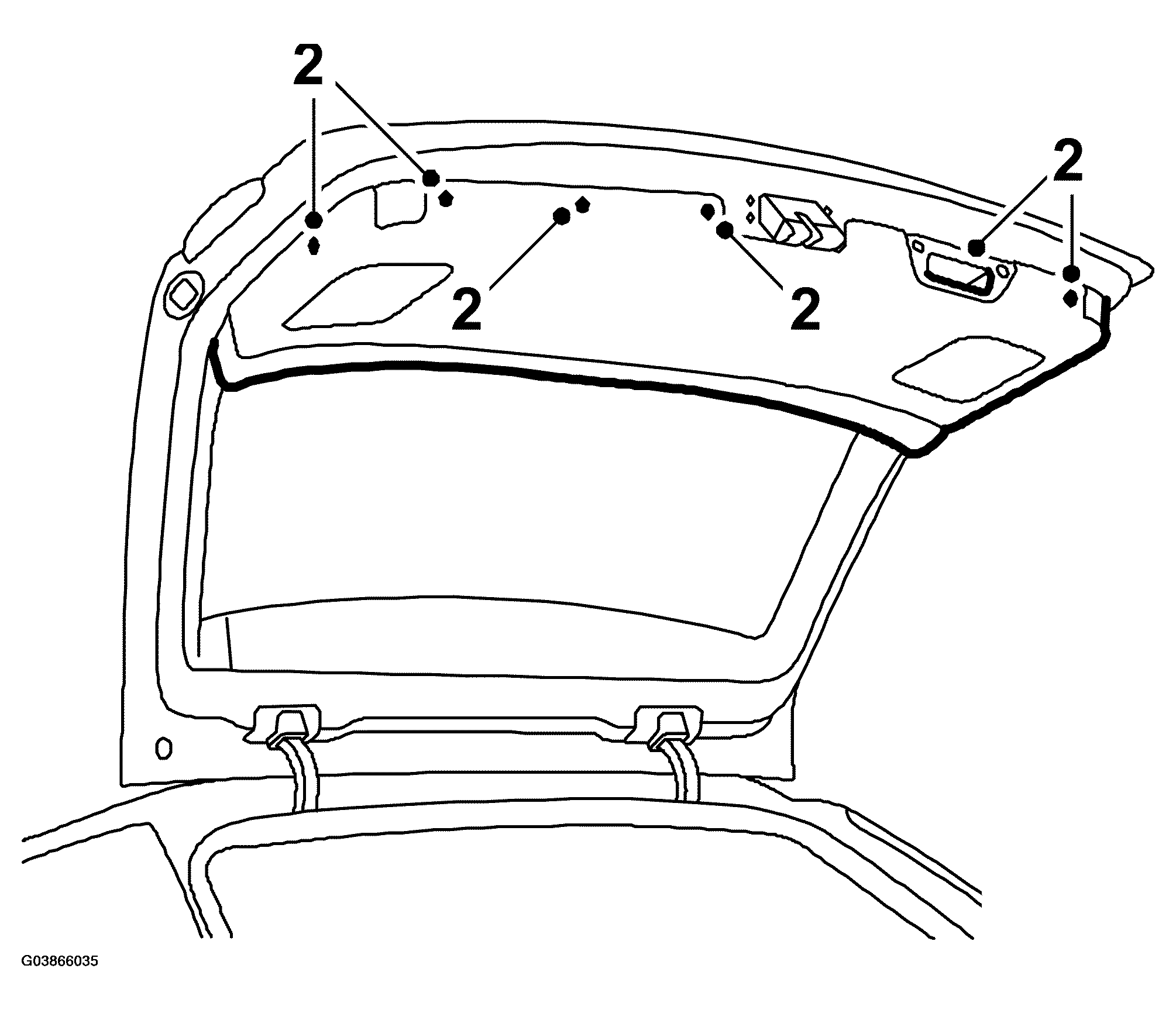

    Fig 1: Illustration For Step 2
    G03866035Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Lift off the tailgate trim as described below:

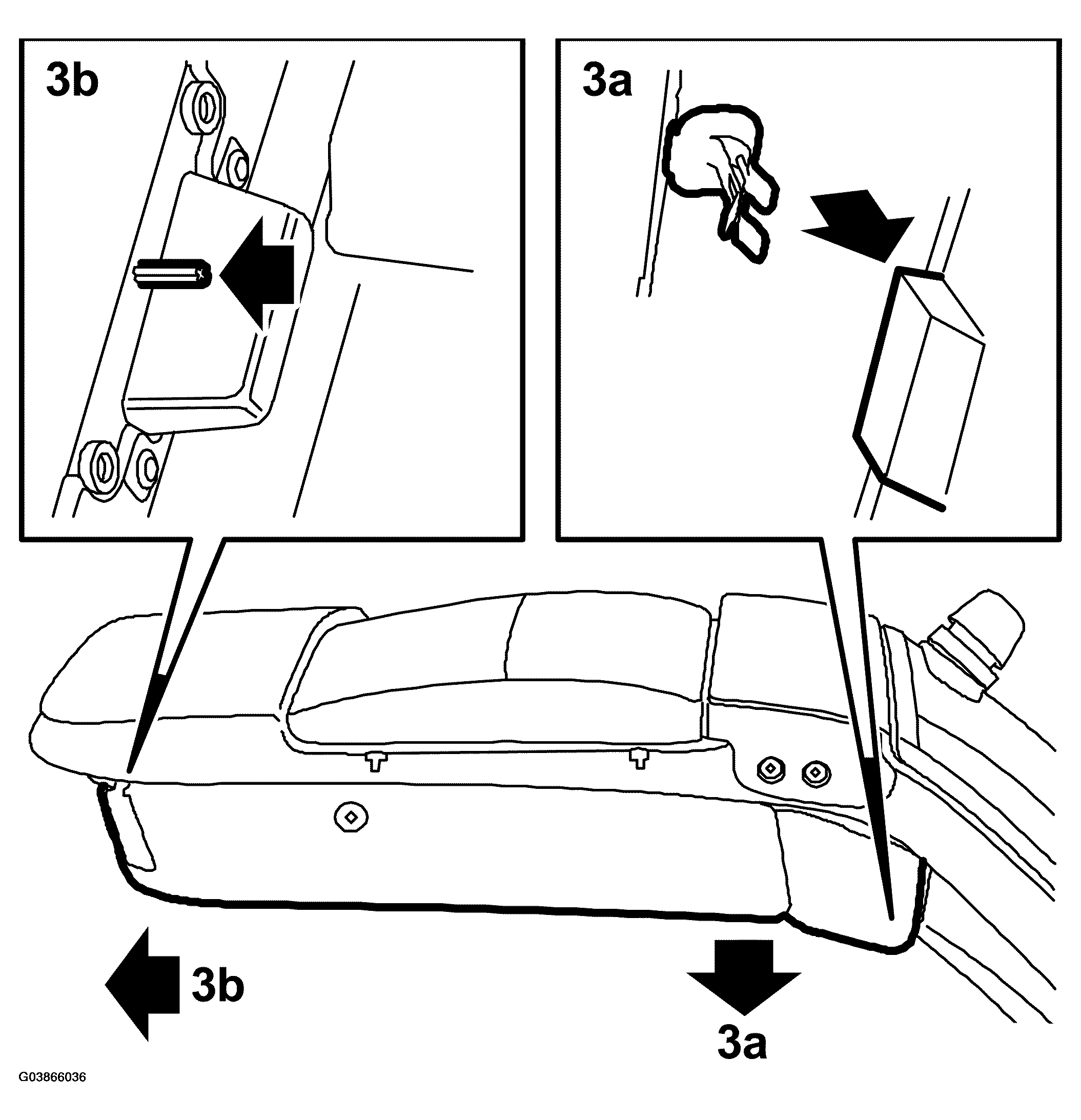

    Fig 2: Illustration For Step 3a-3b
    G03866036Courtesy of SAAB-SCANIA OF AMERICA, INC.
    1. 3.a. Pull down the top of the trim to release it from the clips.
    2. 3.b. Pull back on the trim to release the guide pin, taking care not to break it.
  4. Unscrew the nuts and unhook the lock rod from the driver.

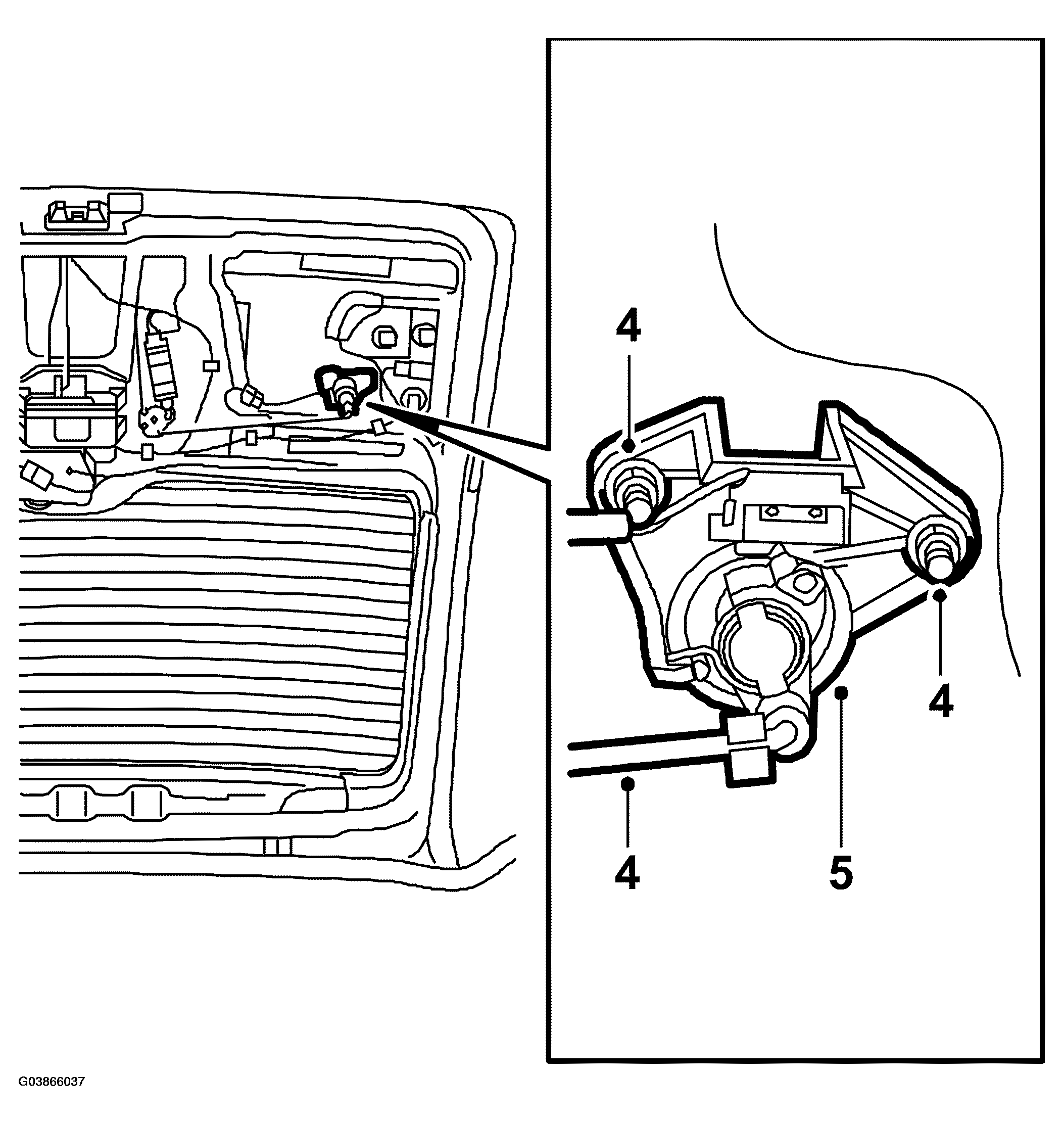

    Fig 3: Illustration For Step 4-5
    G03866037Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the lock cylinder. Unplug the connector.
