To fit

  1. Check the seal, fit the cylinder and tighten the nuts. Plug in the connector.

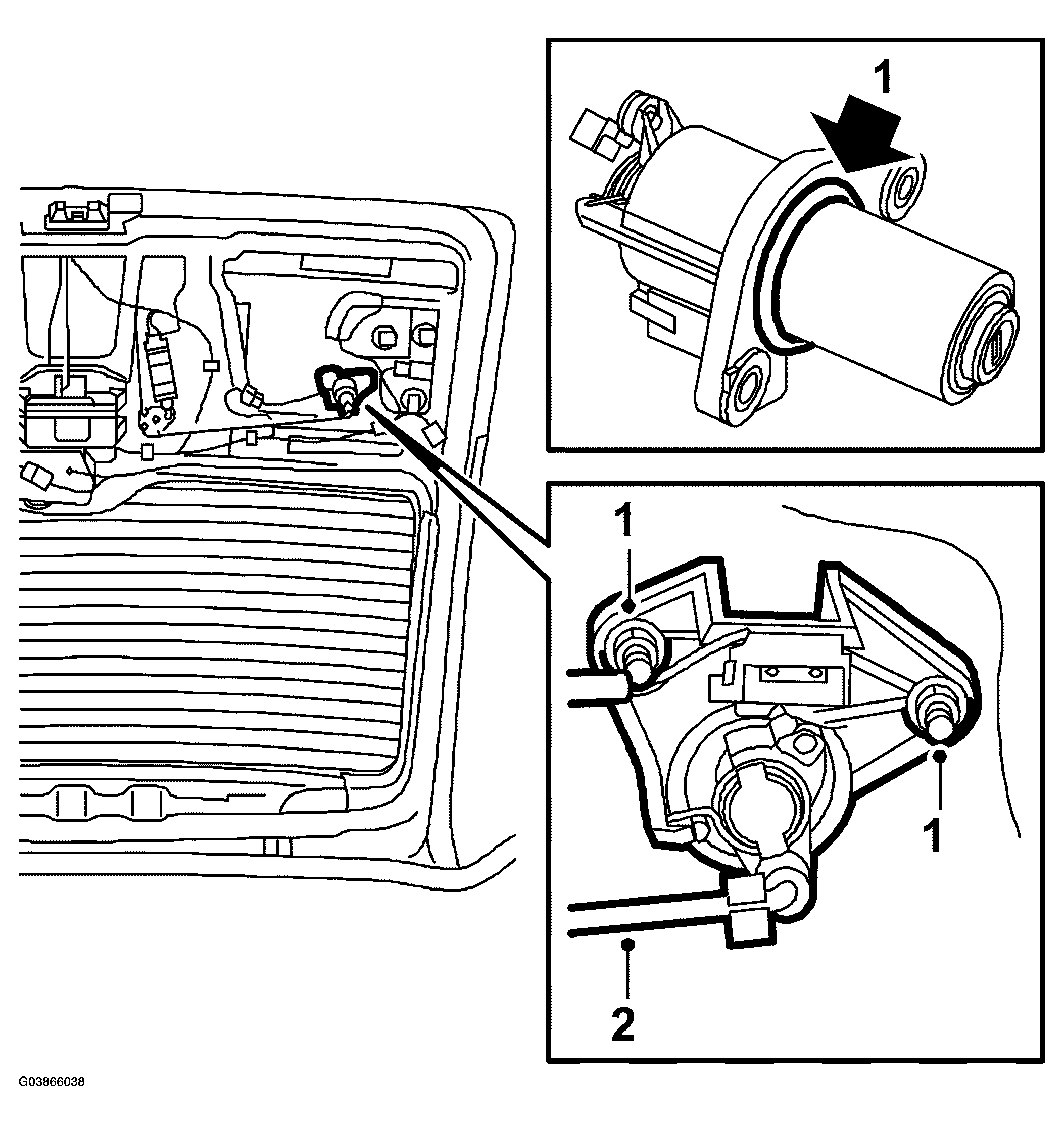

    Fig 1: Illustration For Step 1-2
    G03866038Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Hook on the lock rods to the driver.
  3. Fit the inner trim by inserting the guide pin at the door pull and fastening with the clips at the edge of the window. Screw in the two door pull screws. Fasten the remaining clips around the trim.

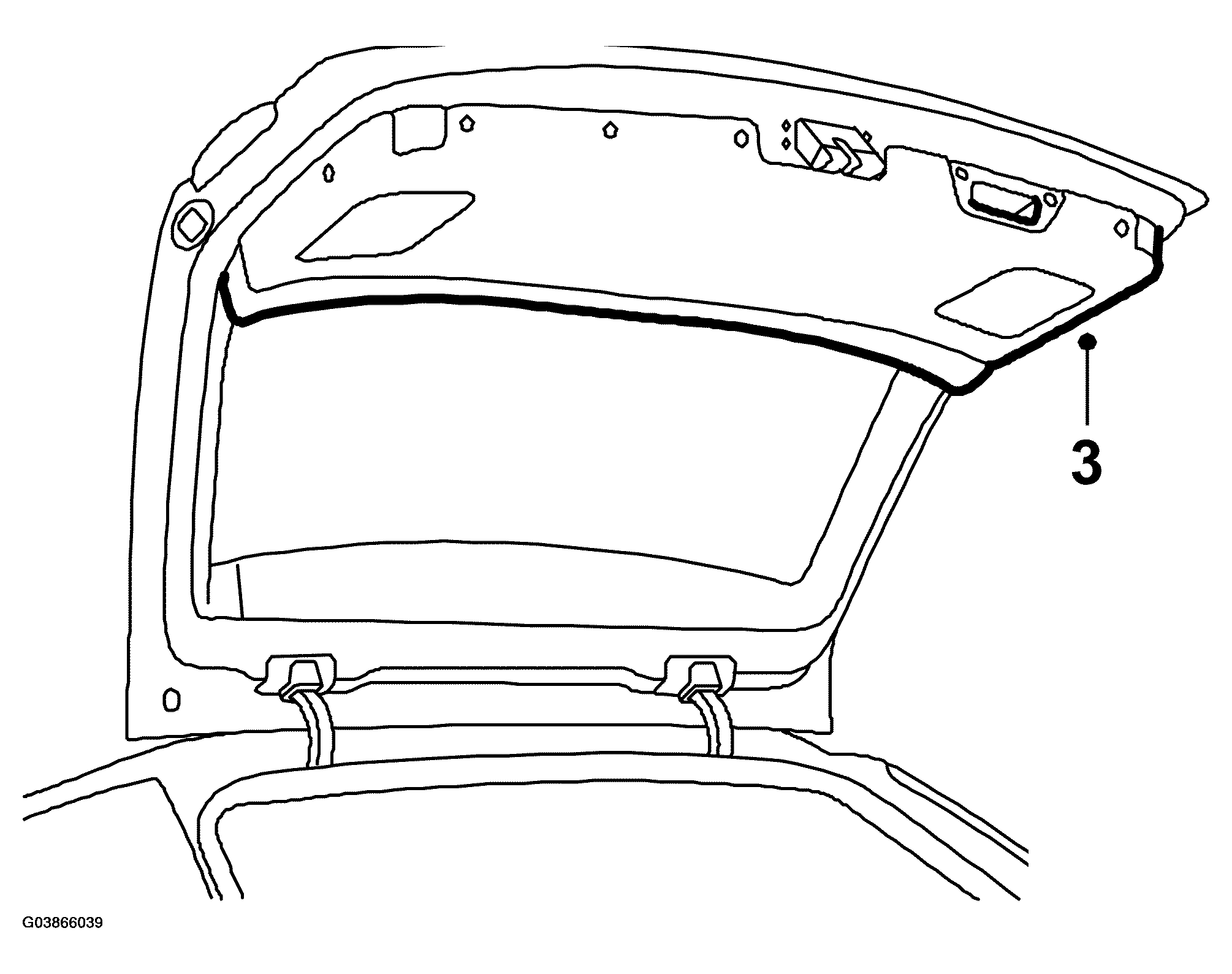

    Fig 2: Illustration For Step 3
    G03866039Courtesy of SAAB-SCANIA OF AMERICA, INC.
